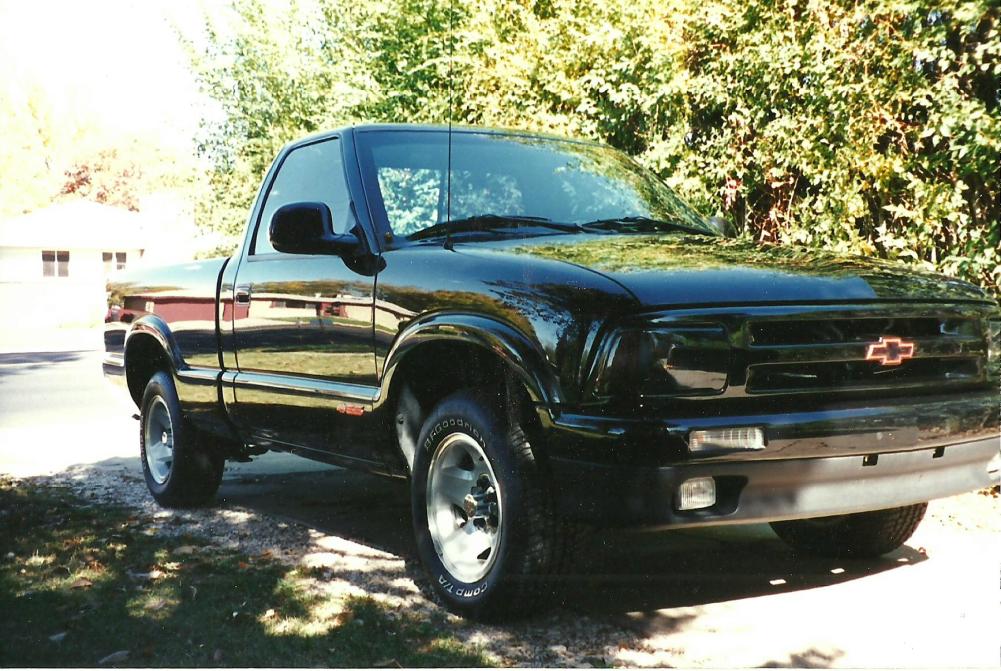

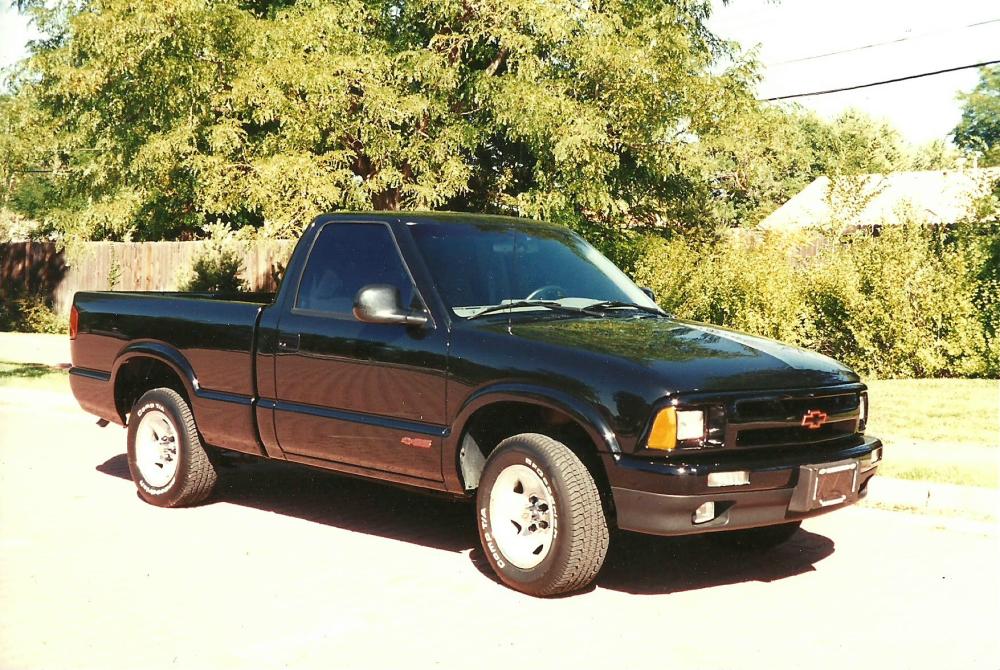

1994 - Brand new from the dealer, let's go monster truckin!
1994 - Added headlight and tailight covers

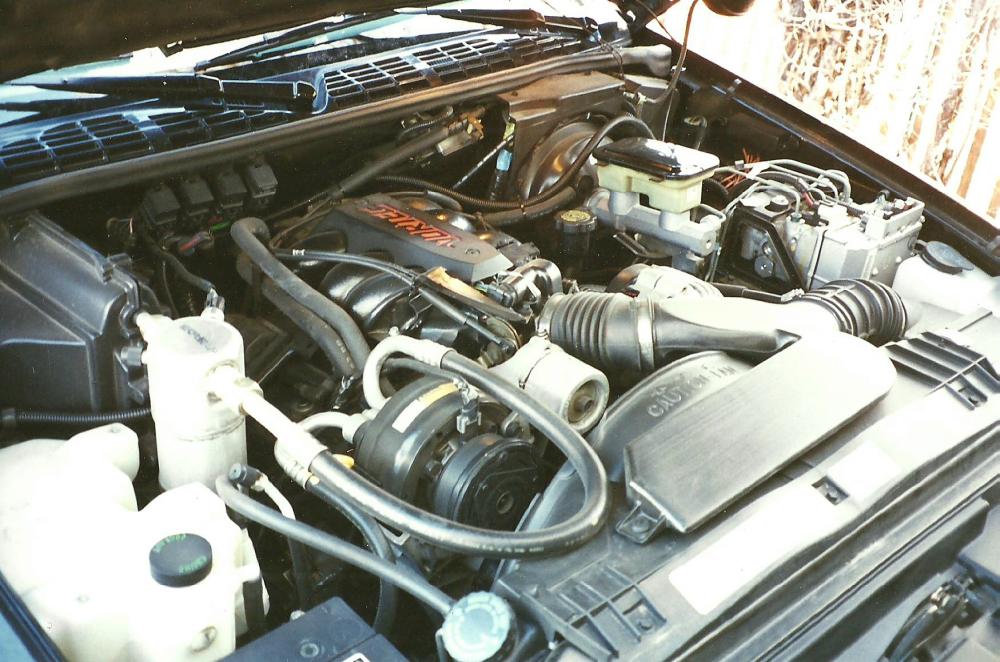

1994 - 4. 3 Vortec, 195 HP, does the job!
1994 - Tinted windows
1994 - Back shot with purple neon plate frame (from my dually)
1995 - Going down??

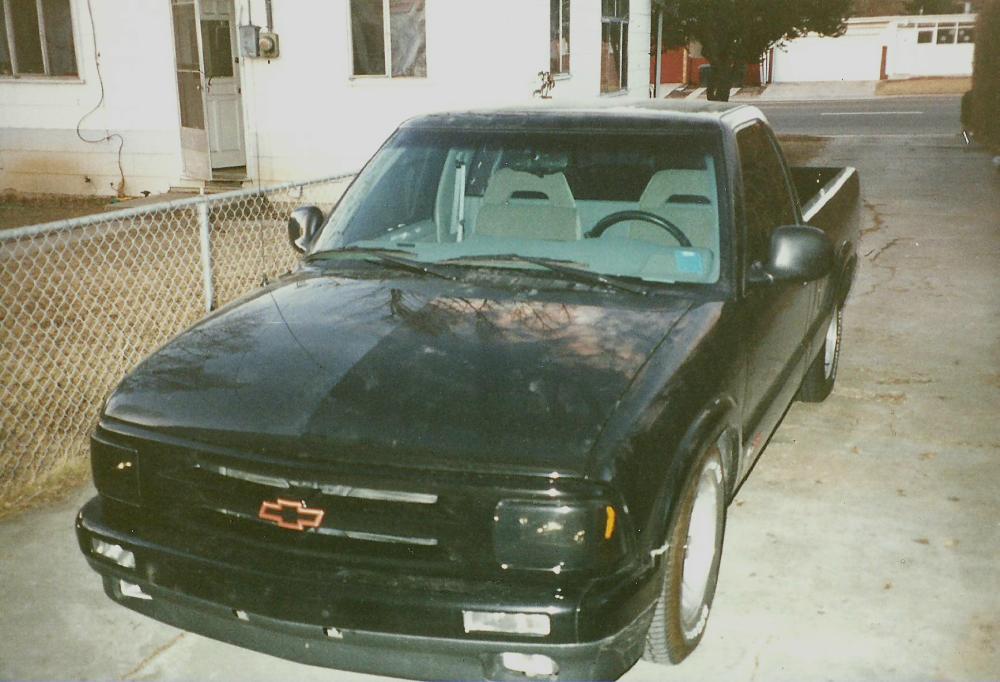

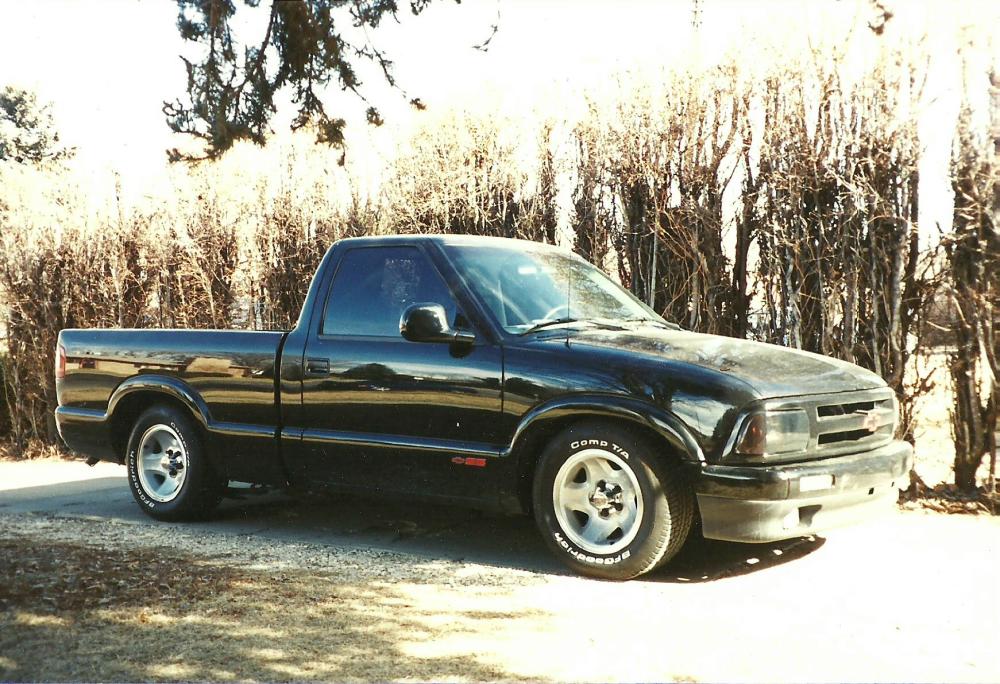

1995 - Lowered 3-4

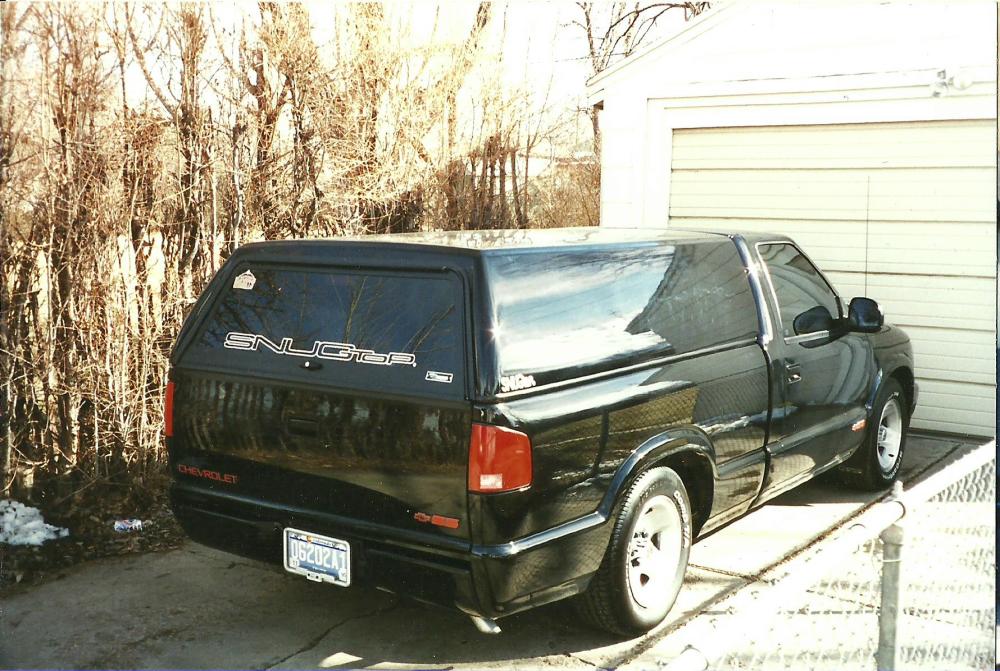

1995 - Snugtop windowless shell
1995 - Snugtop windowless shell

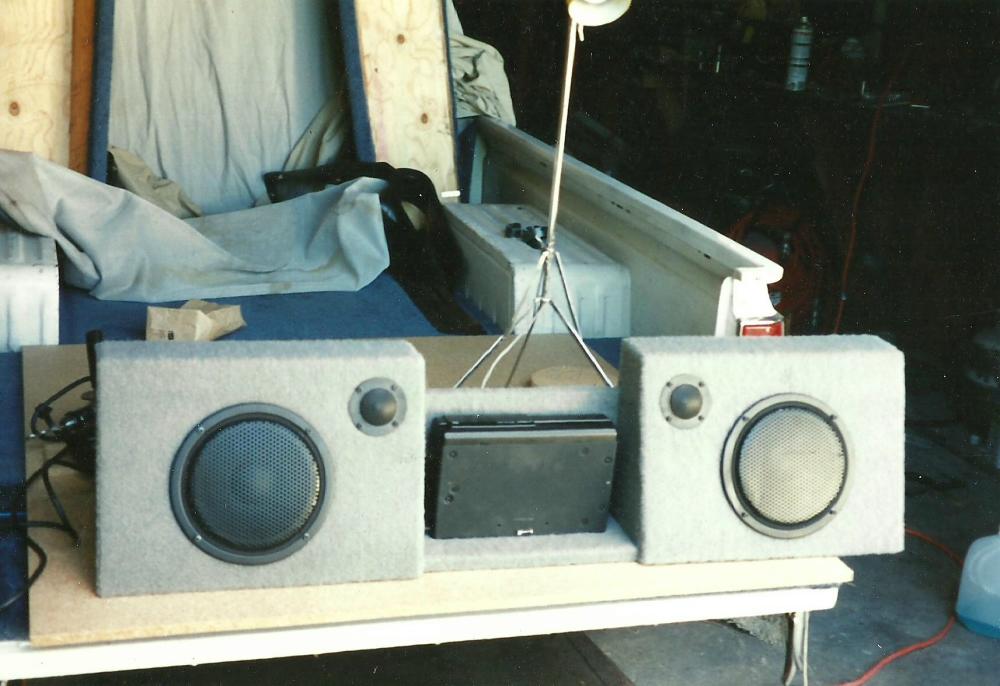

1995 - Speaker box I made with Alpine 6 disc changer

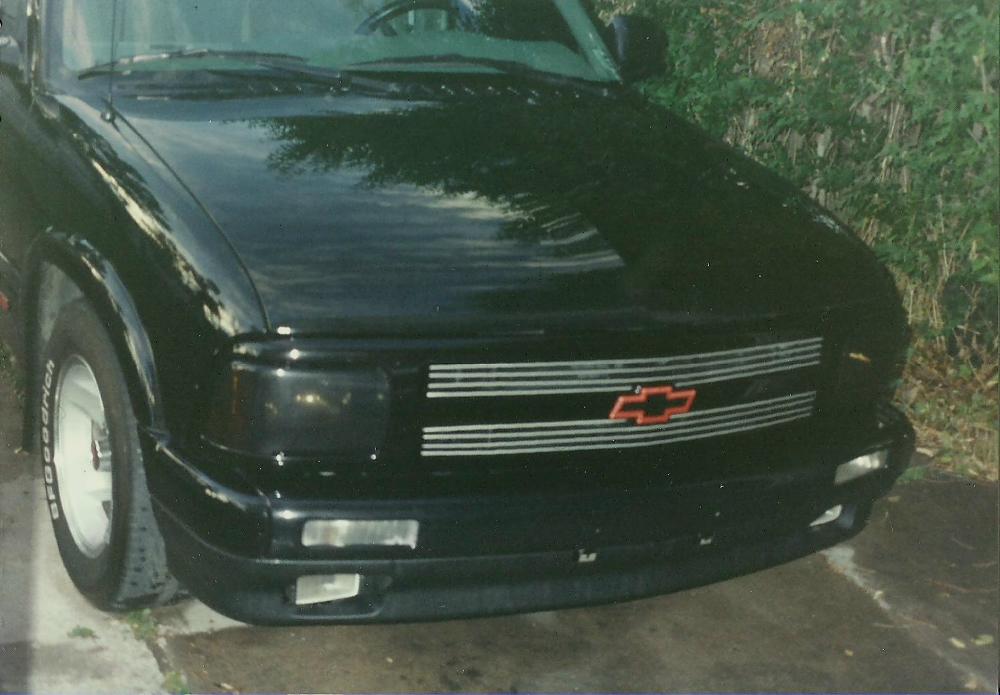

1995 - Trenz billet grille inserts, present from my brother

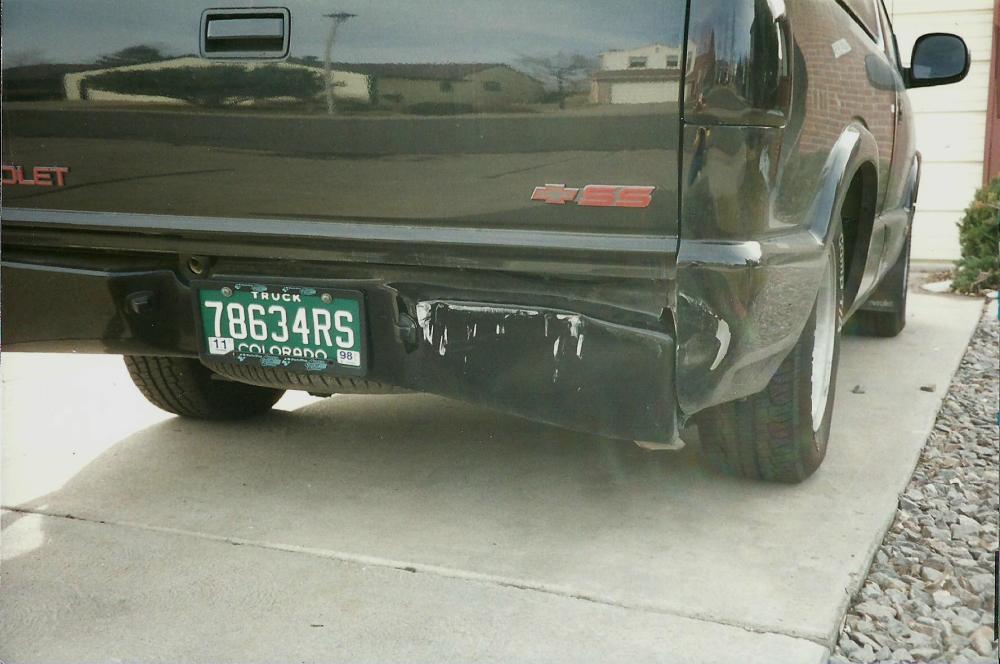

1997 - Ouch!! This is what happens when a 16 year old punk doesn't stop!
1997 - Ouch!!
1997 - Ouch!!
1997 - Ouch!!

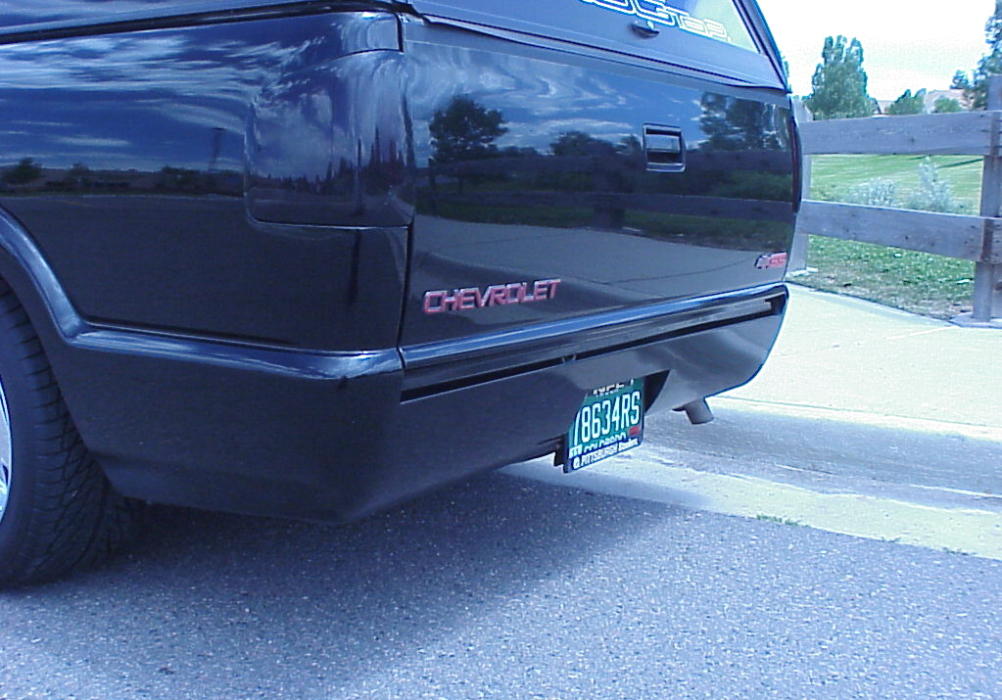

1998 - Smoothed in Sir Micheals roll-pan, courtesy of punk kids insurance!

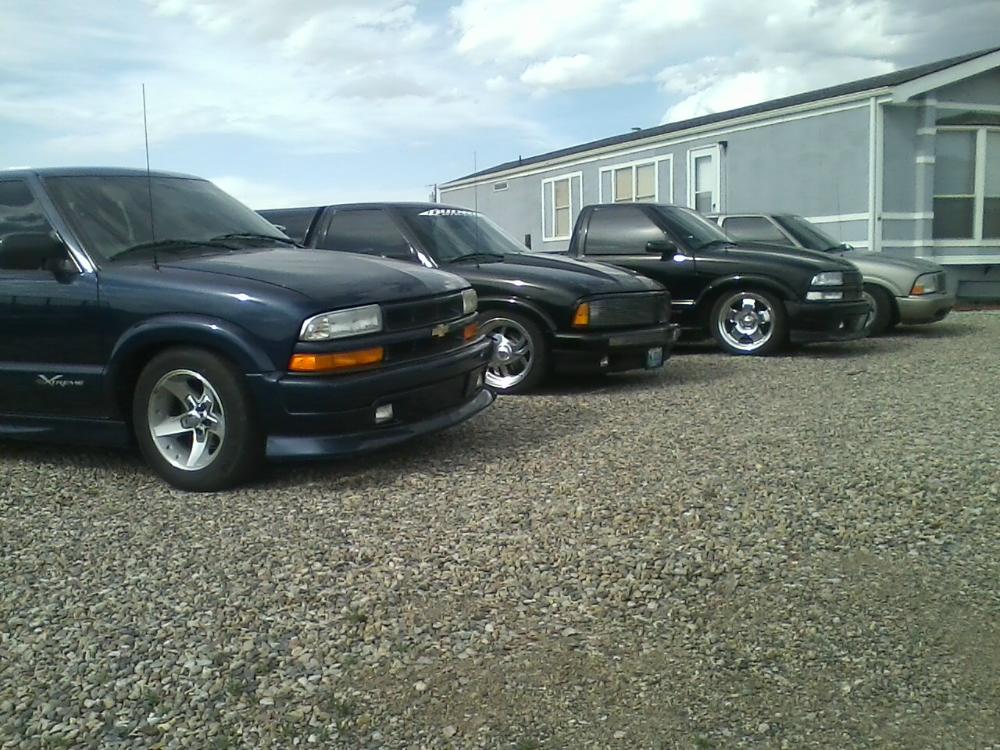

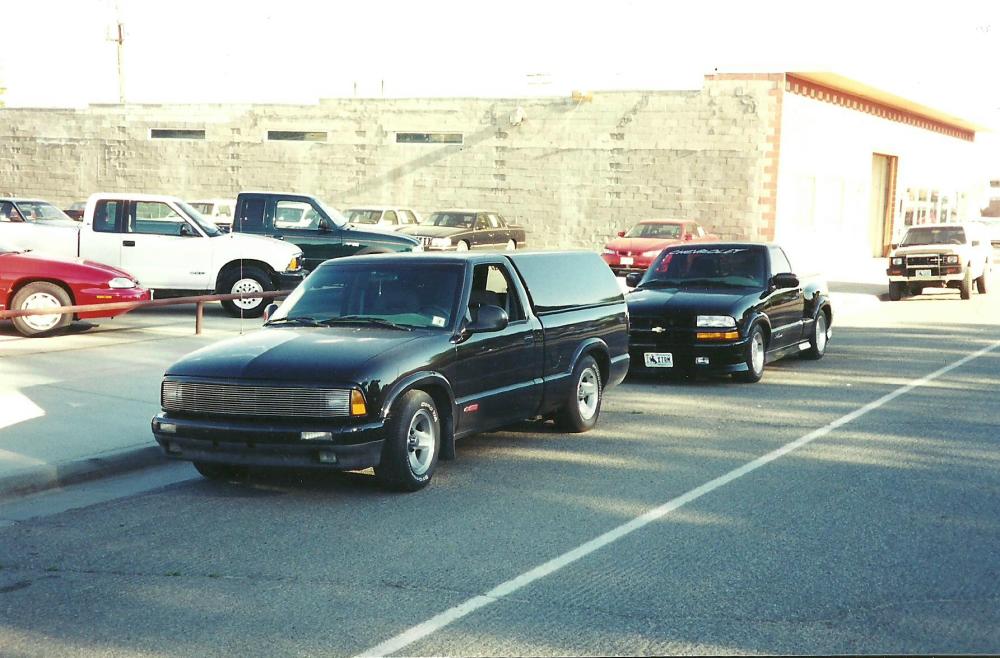

1999 - My truck with my brothers new 99 xtreme

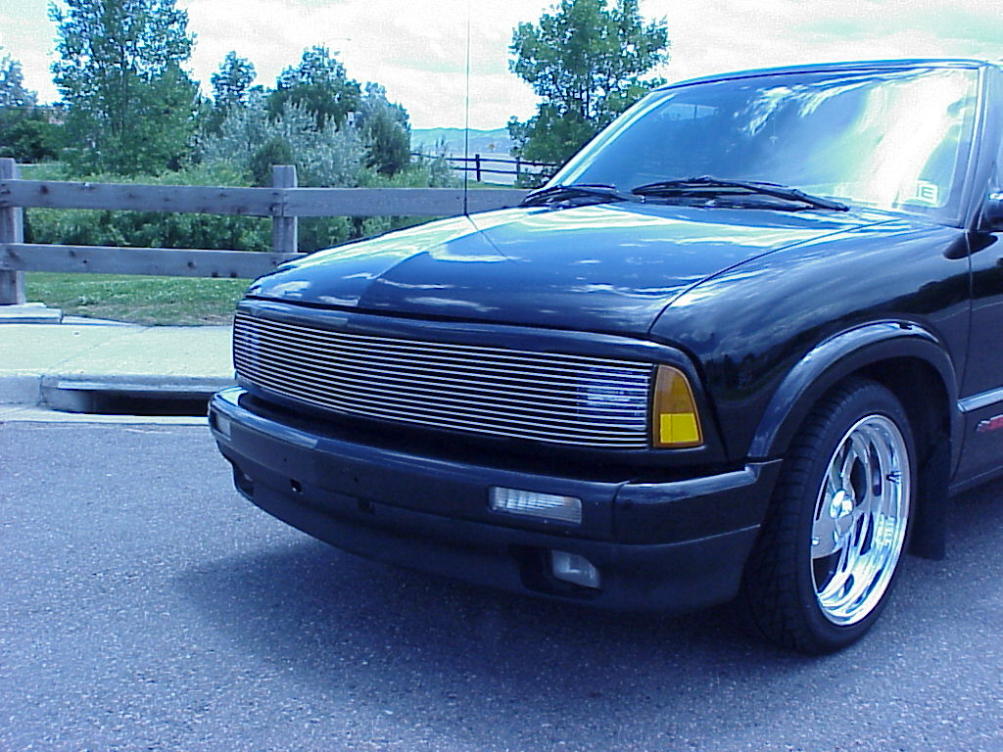

2000- Trenz Phantom billet grille
2000 - Steel Horse Carpet kit and homemade sub boxes

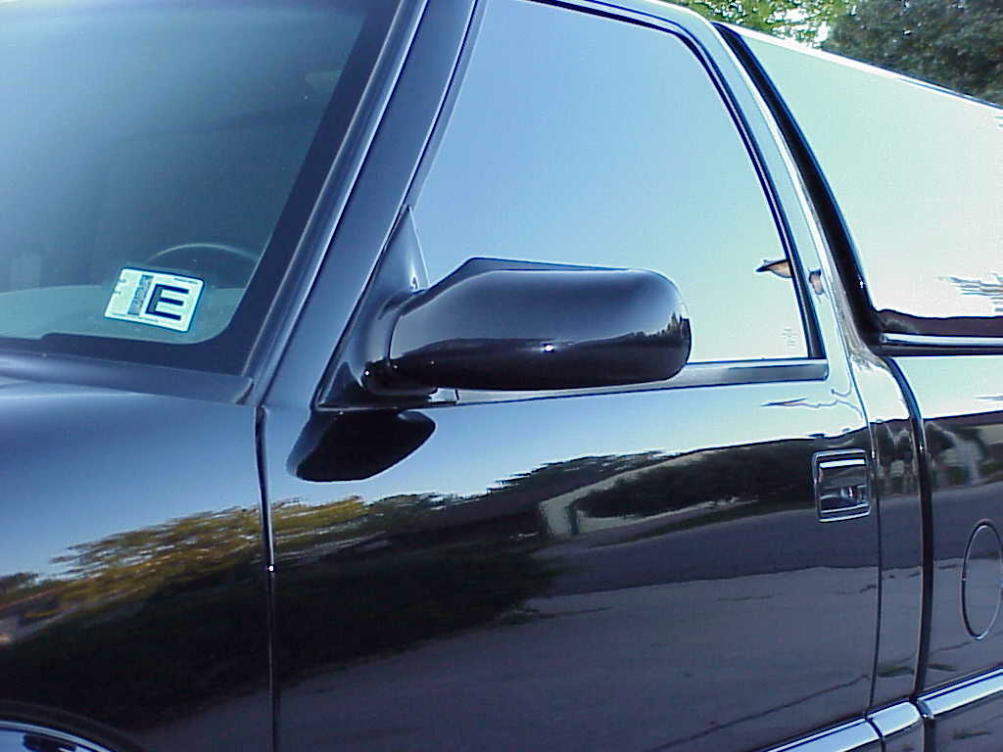

2000 - Dropped the dumbo ears and got some Street Scene mirrors

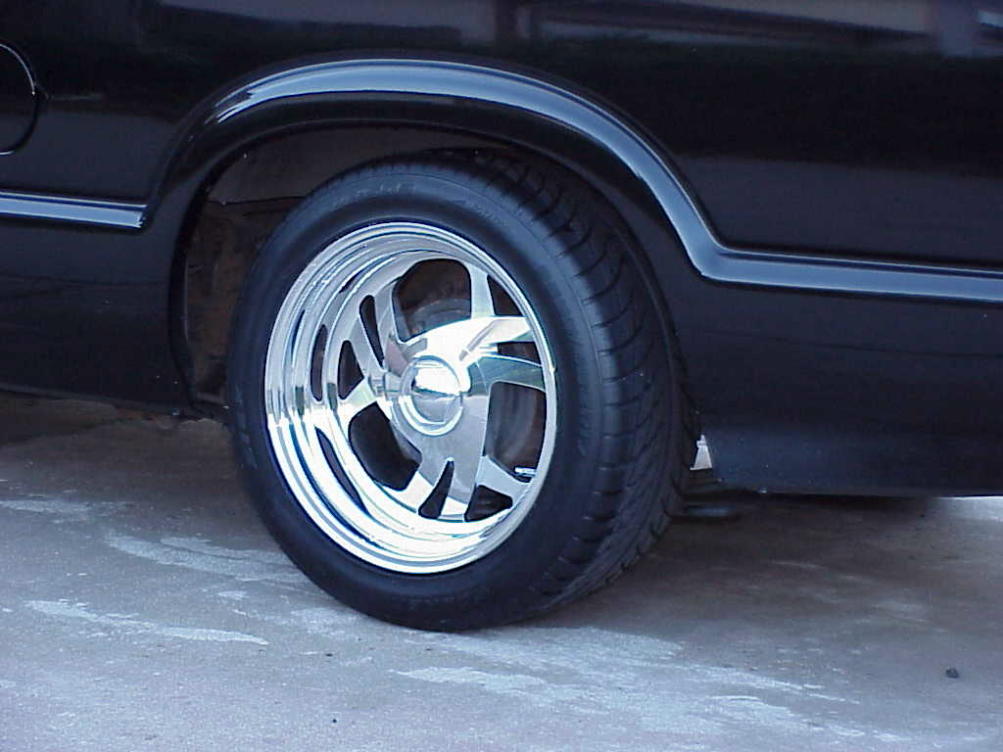

2000 - Finally afforded to get my 17" Budnik Tusk II's and 45 series tires!

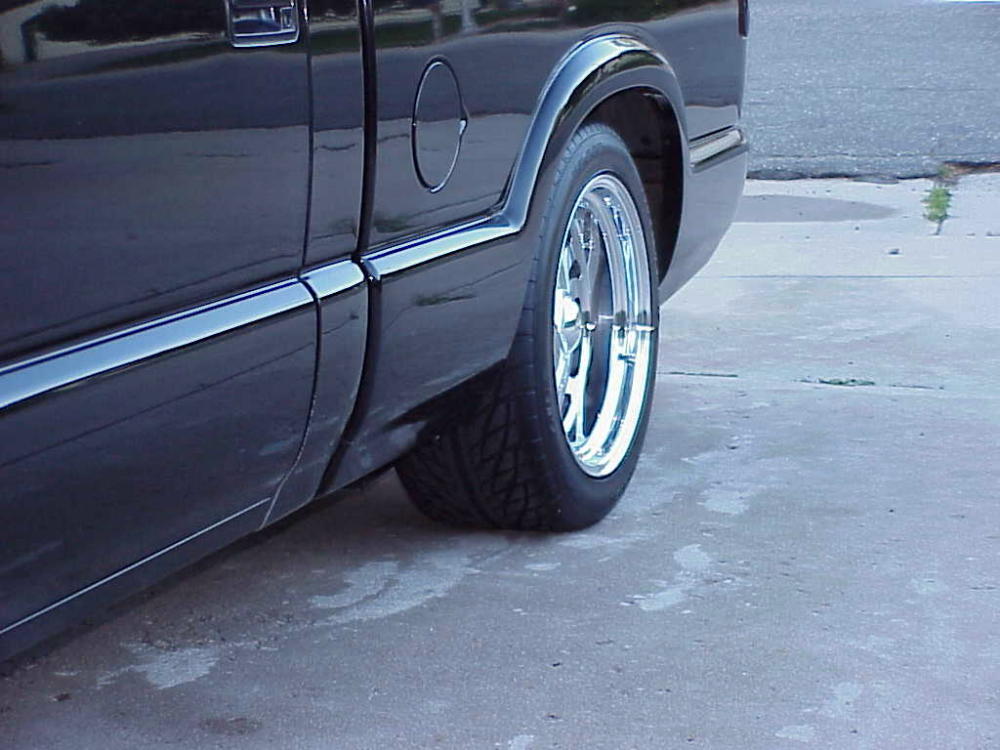

2000 - Needs to come down. Happening real soon! I guess 5 months is soon??
2000 - What my truck will look like in the (late) spring of 2001 with 2 more inches of lowering

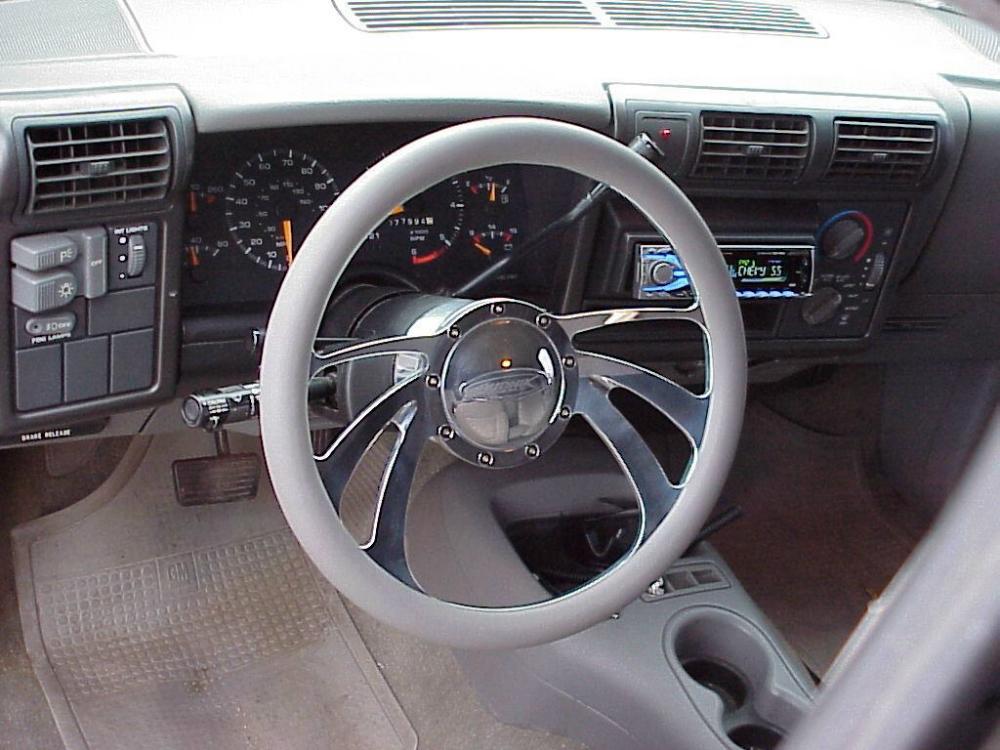

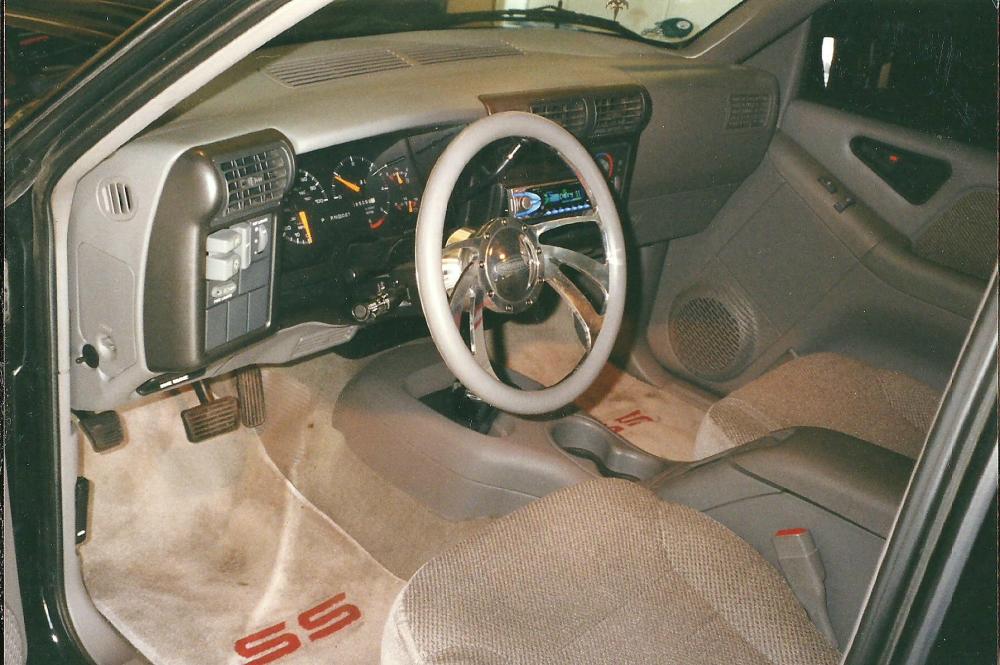

2001 - New matching Budnik billet Tusk II steering wheel
2001 - Sport trucks shouldn't have to put up with this!
2001 - Since its winter, might as well build a model

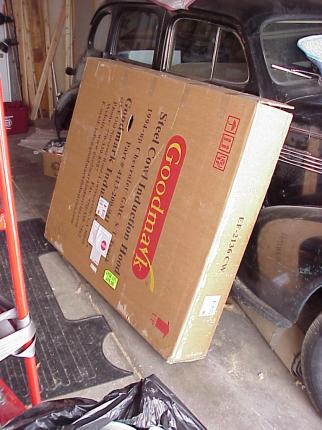

2001 - My new Goodmark cowl induction hood as it sat in my garage for 6 months!

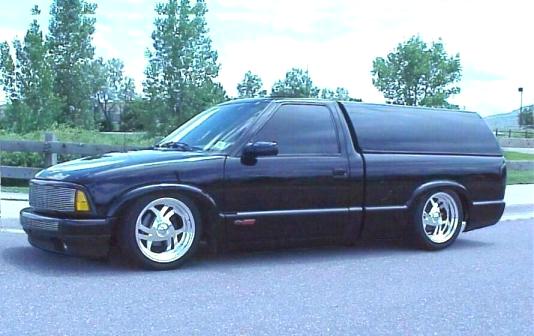

2001 - Finally got it down to 5/5!

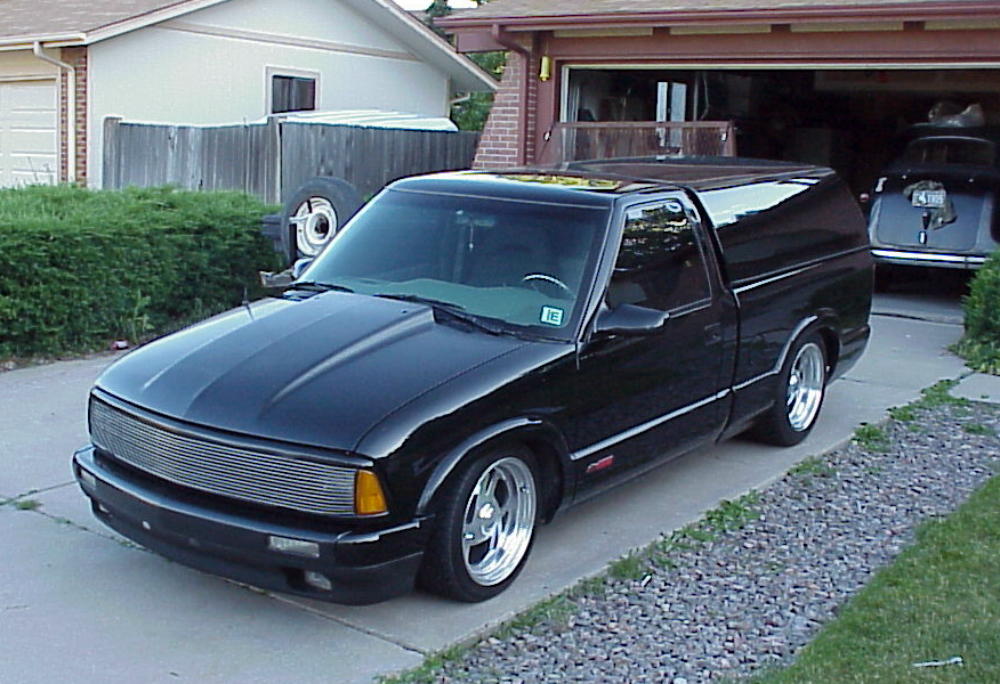

2001 - Test fit on the hood, now off to the bodyshop!!

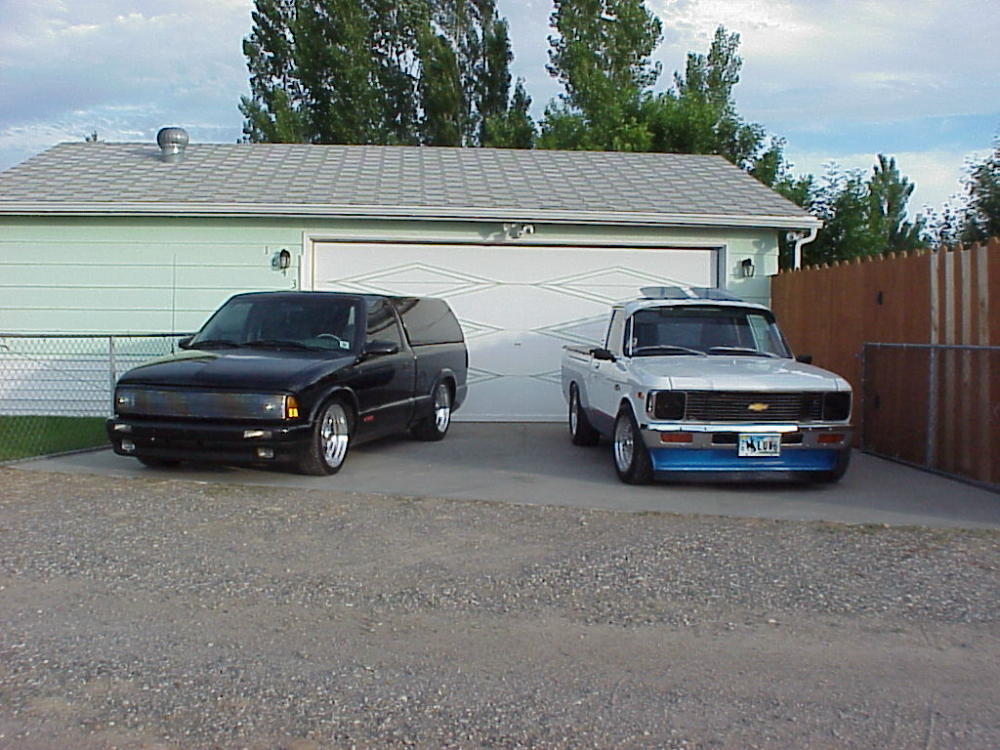

2001 - Old school vs. new school

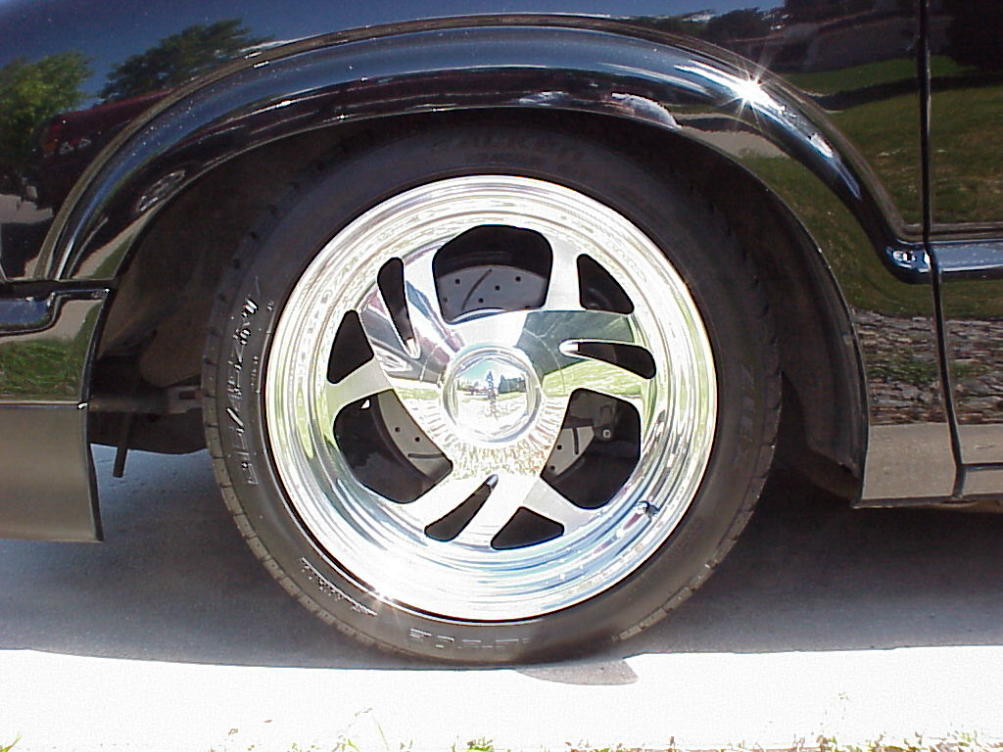

2001 - Cross drilled rotors

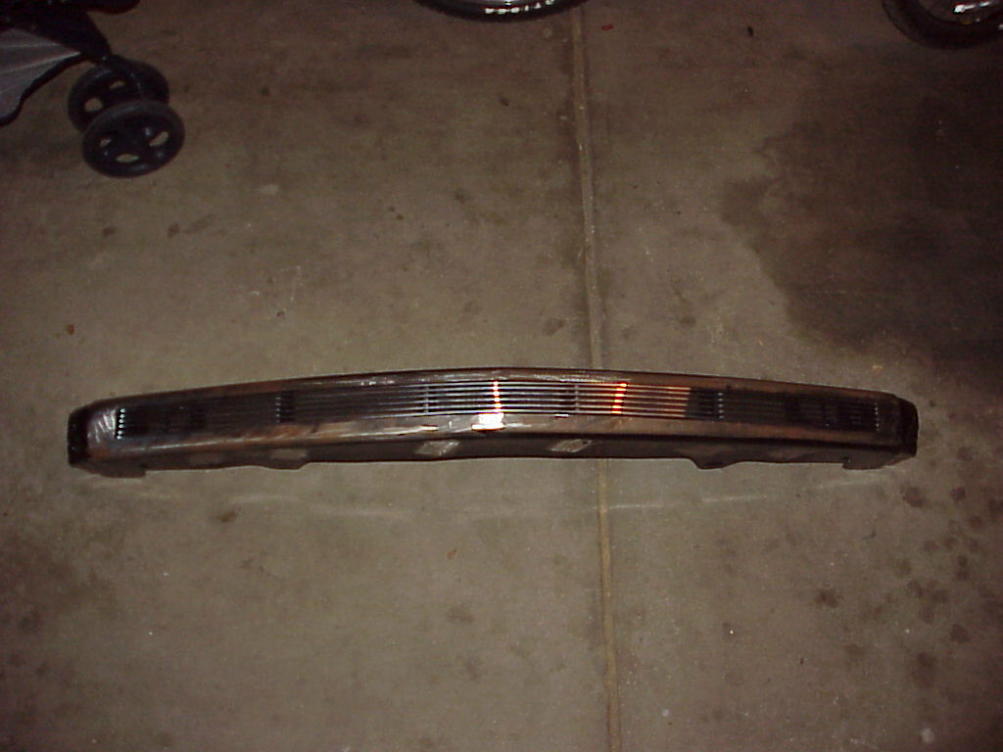

2001 - FINALLY - Got my one off phantom billet bumper, now off to the bodyshop again!

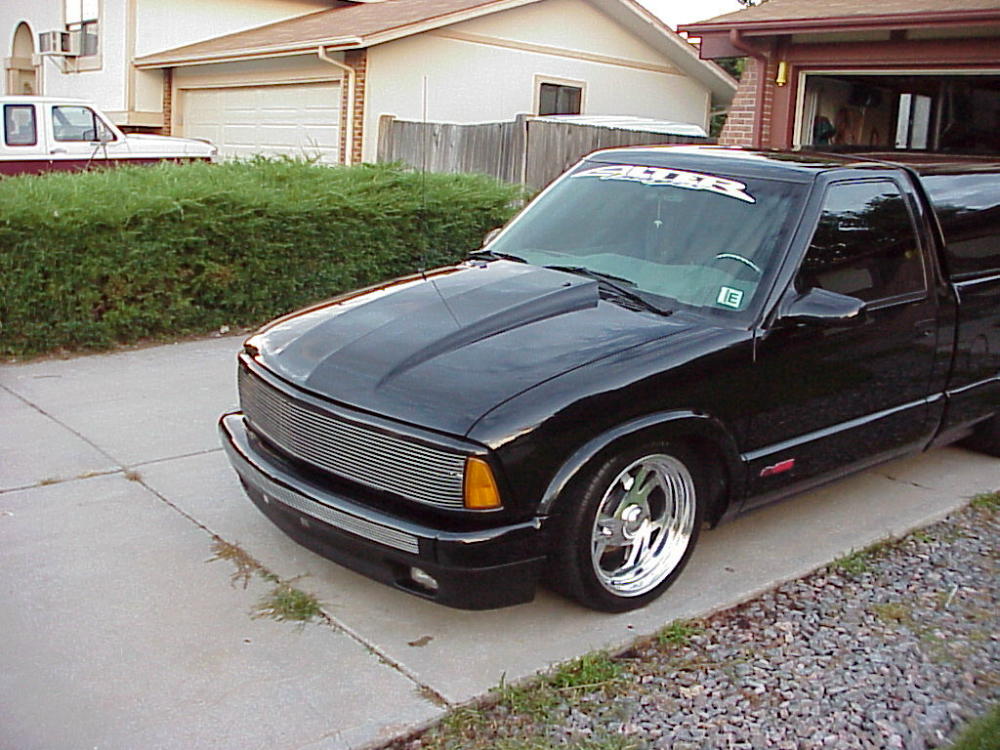

2001 - Cowl hood painted and on
2001 - After 7 months the bumper finally becomes a reality!!!!

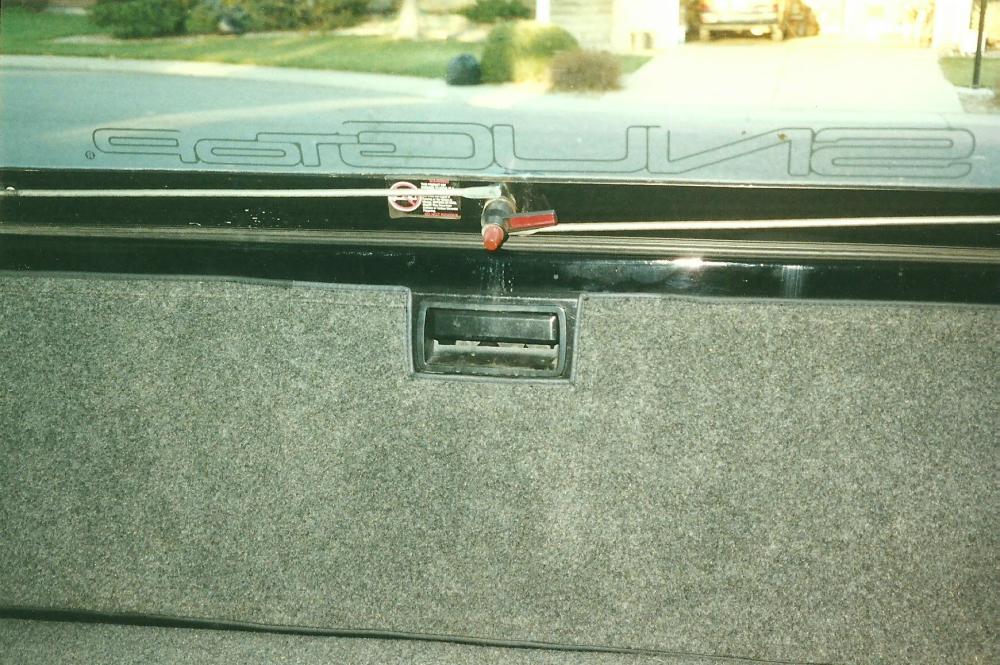

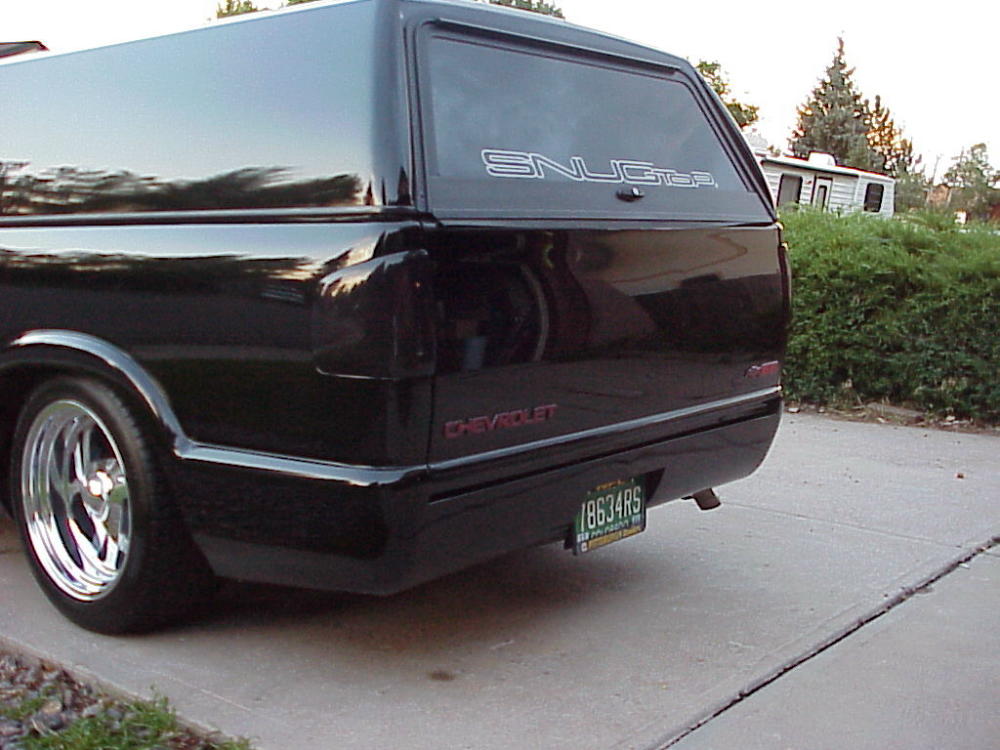

2001 - Shaved tailgate handle

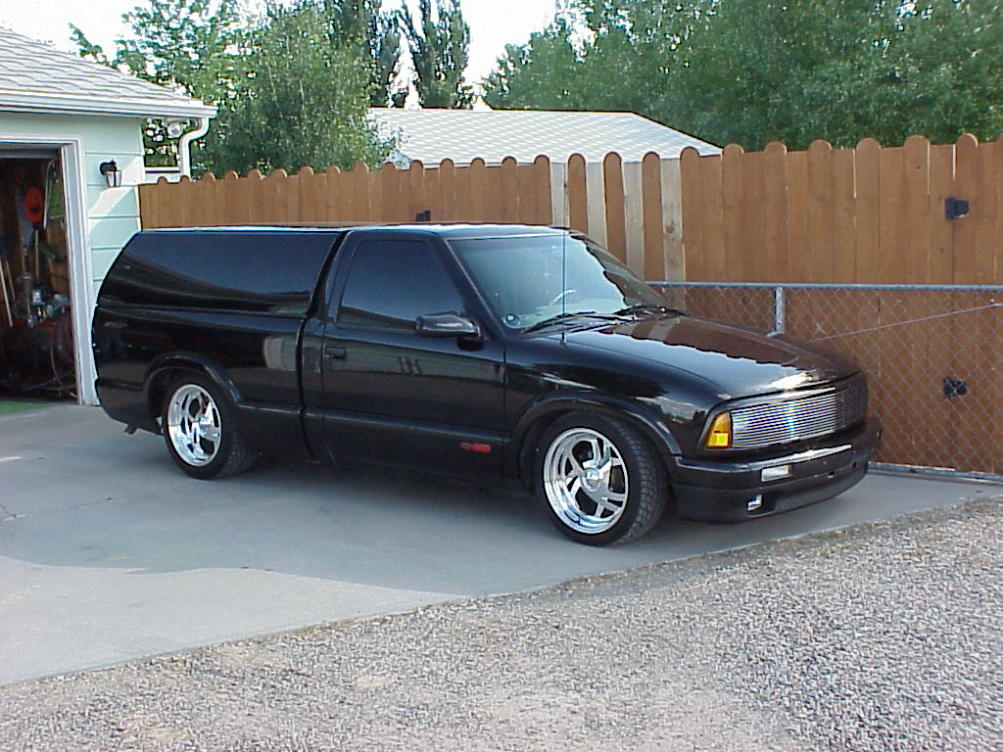

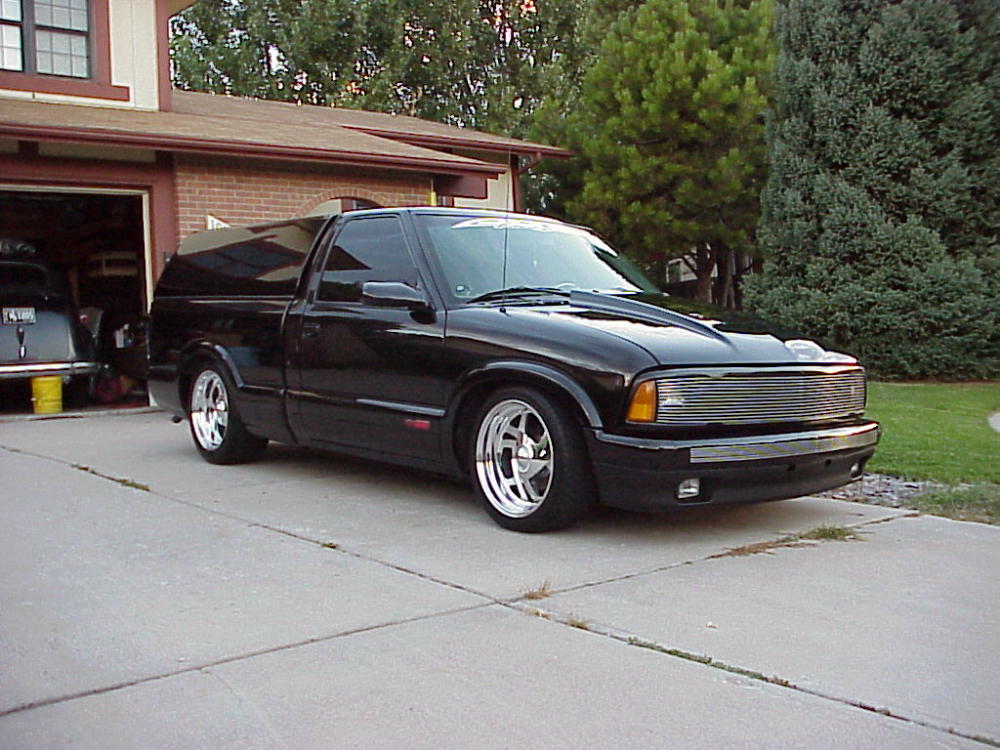

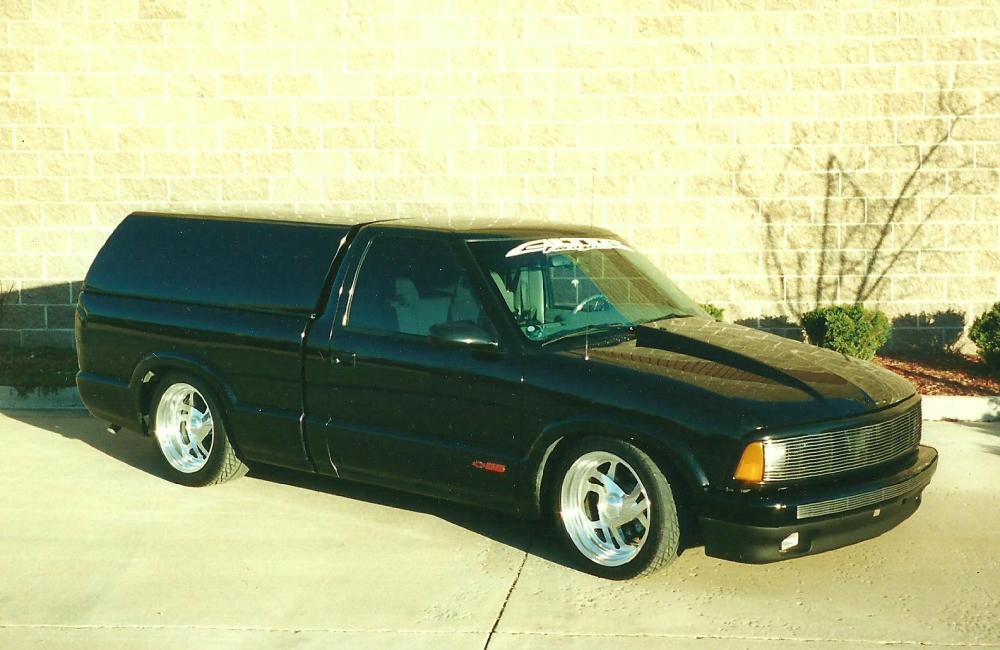

2001 - Completed for now??? Next will be a video/DVD system

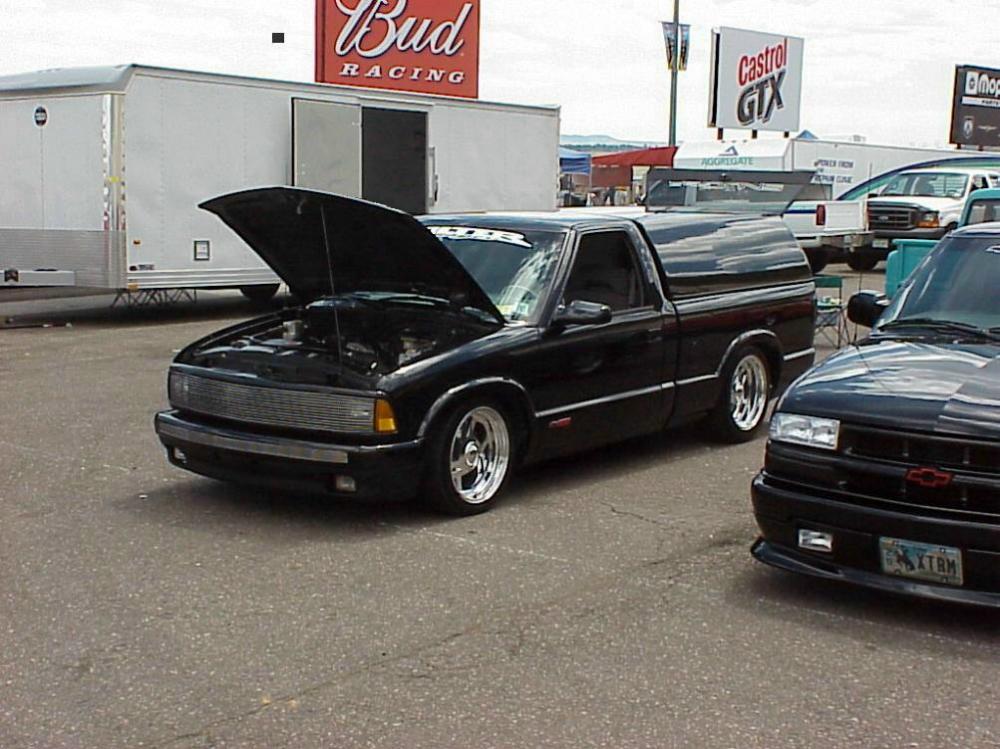

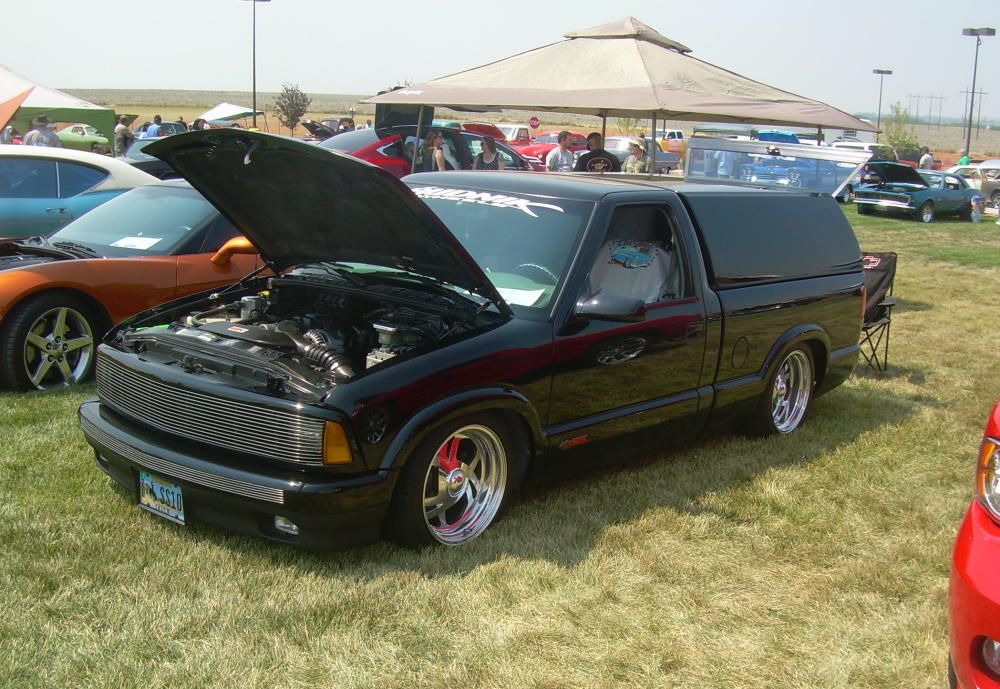

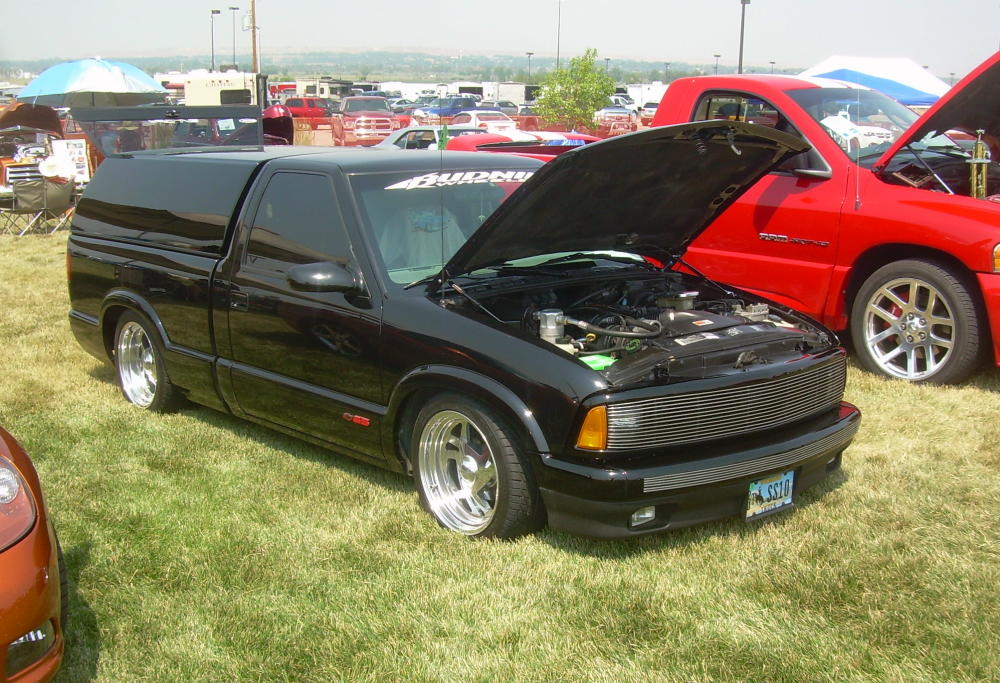

2001 -Truck Mtn Truck Fest at Bandimere speedway, 2nd place out of 12 trucks, I'm happy!!
2001 - Show shot #2

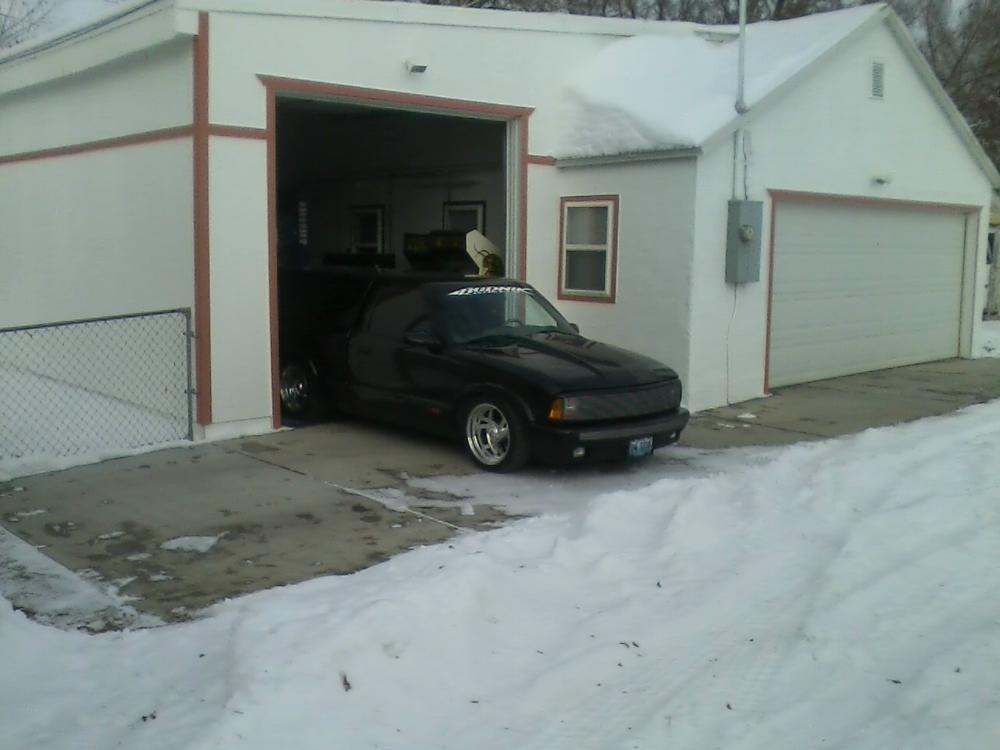

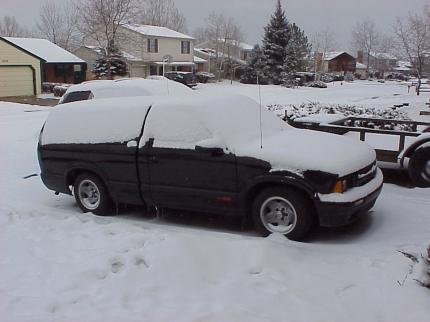

2001 - One last shot before its parked for winter! Snow SUX!!

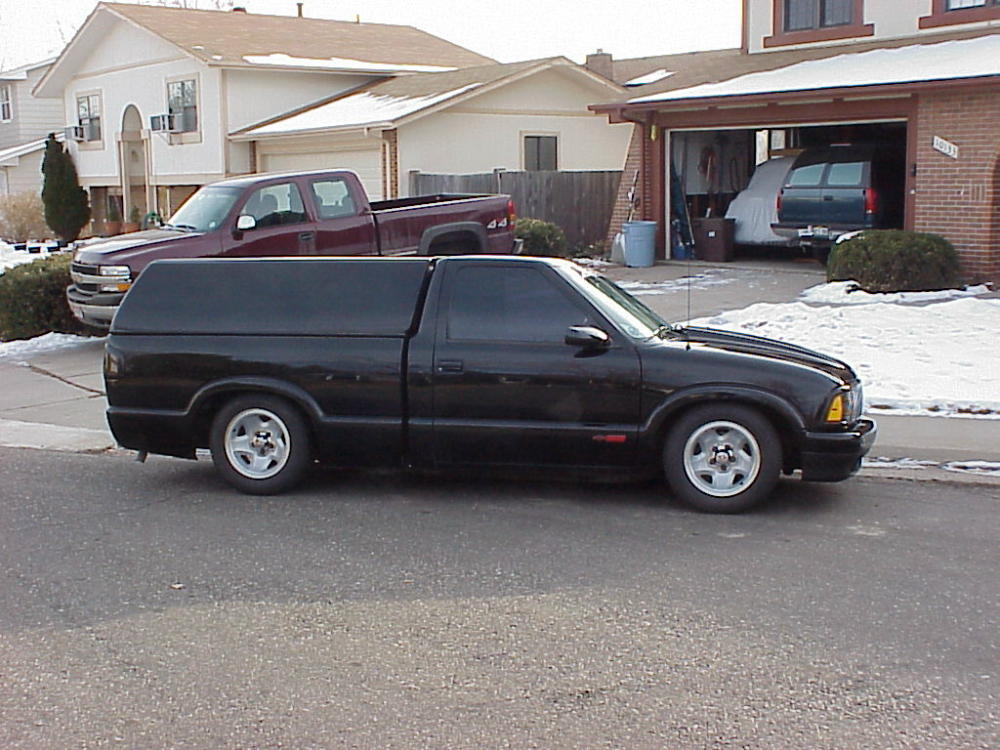

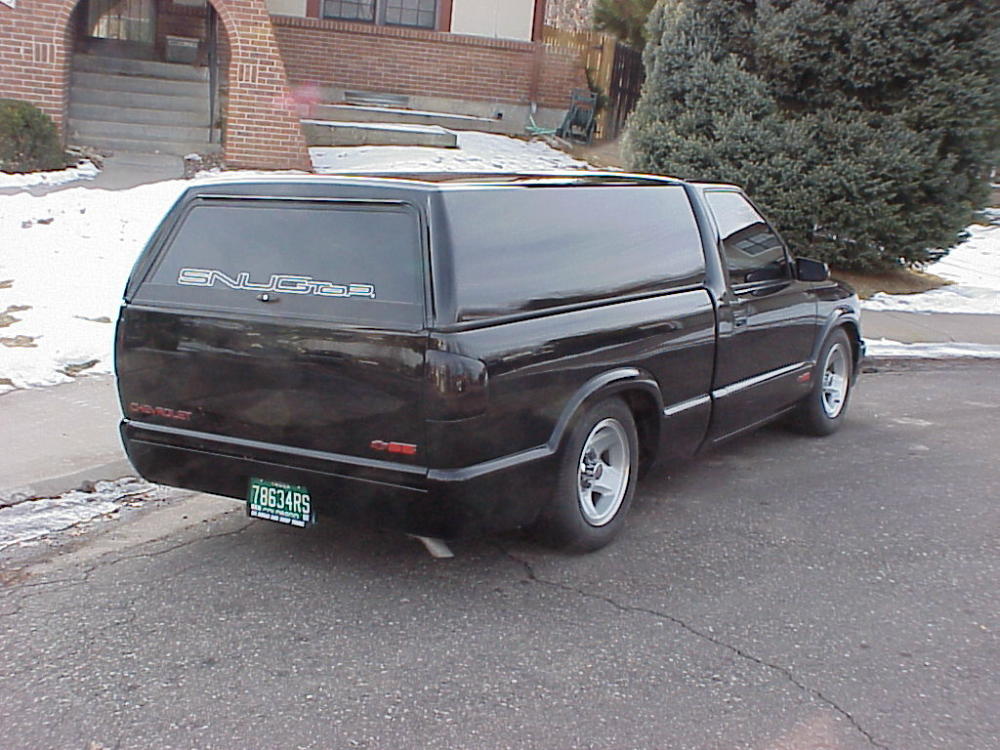

2001 - Putting back on the snow shoes even though it won't be driven. Time to polish the billets!!

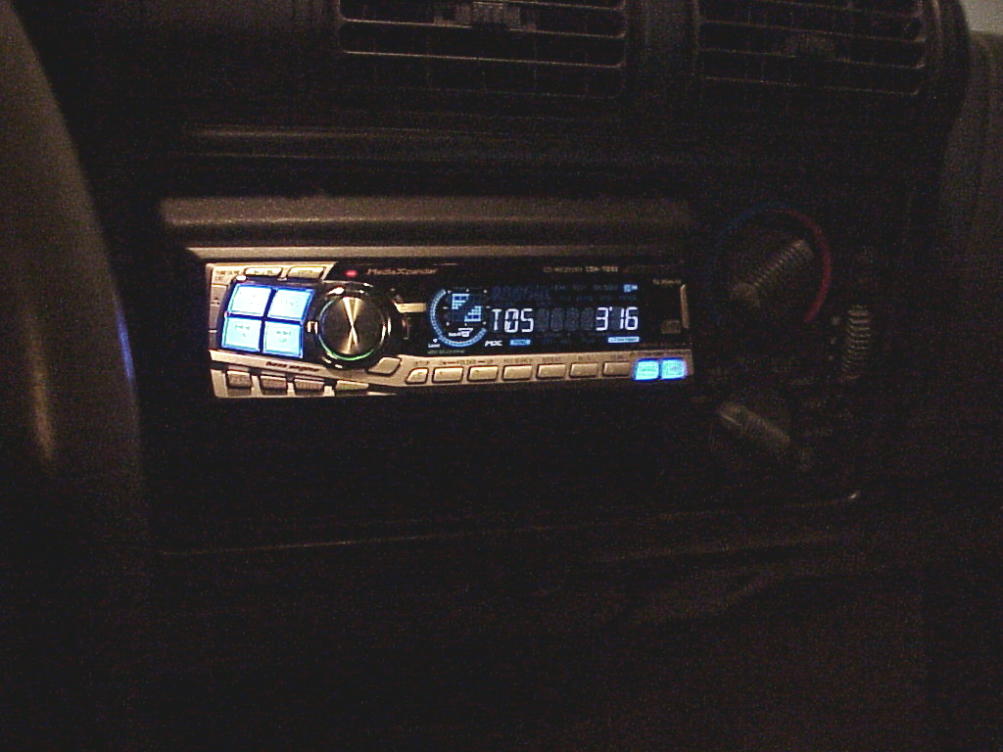

2002 - Alpine CDA-7983 head unit w/hidden 12 disc changer

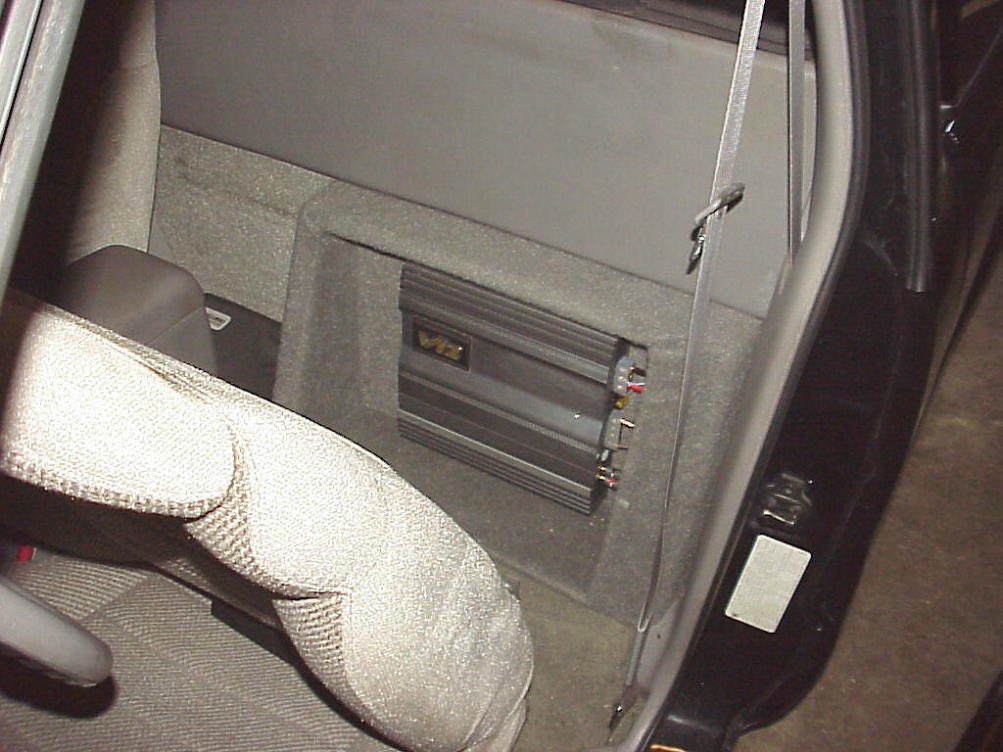

2002 - Alpine 600W V12Amp

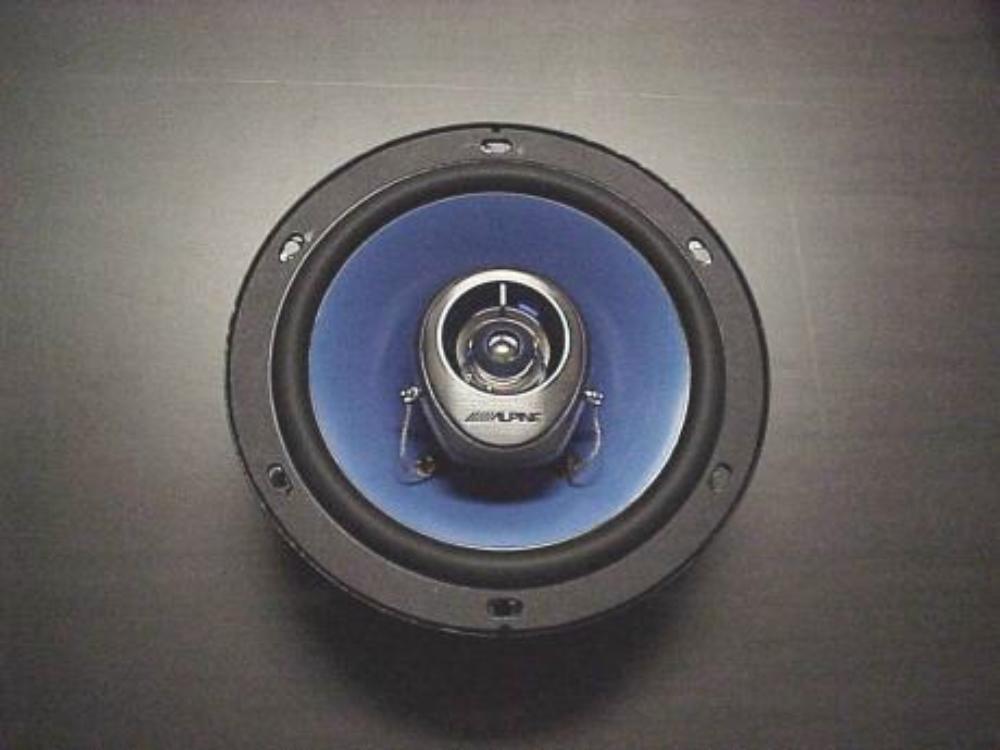

2002 - Alpine 6.5" door speakers

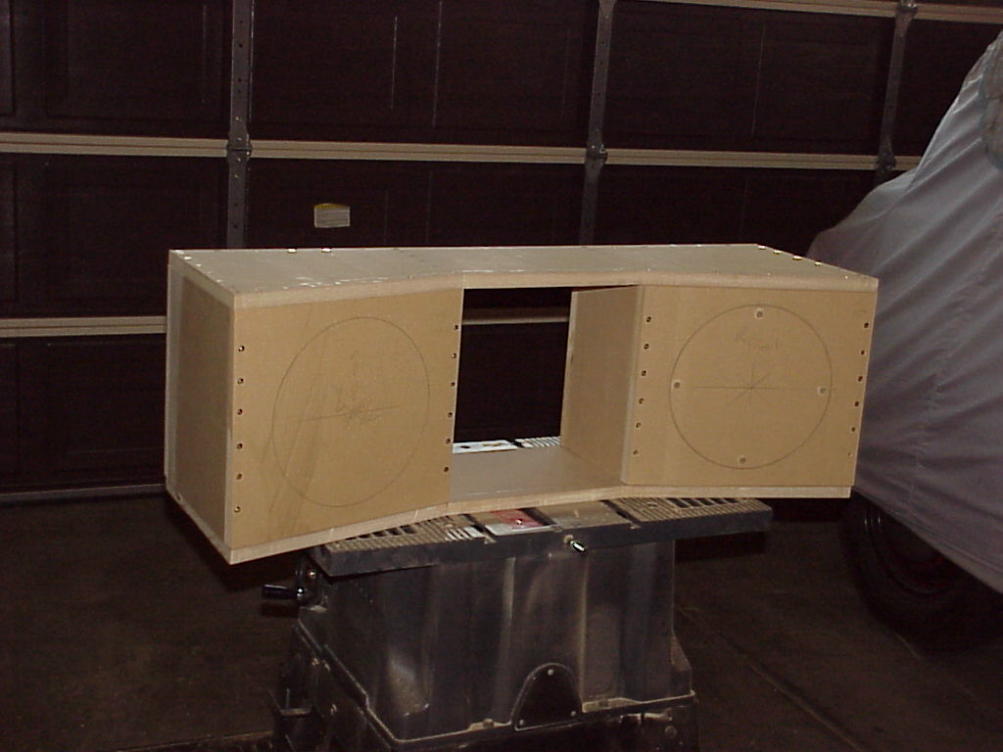

2002 - Building a new box for the bed out of 3/4 MDF, wanted to do plexiglass but costs way to much!!!!!

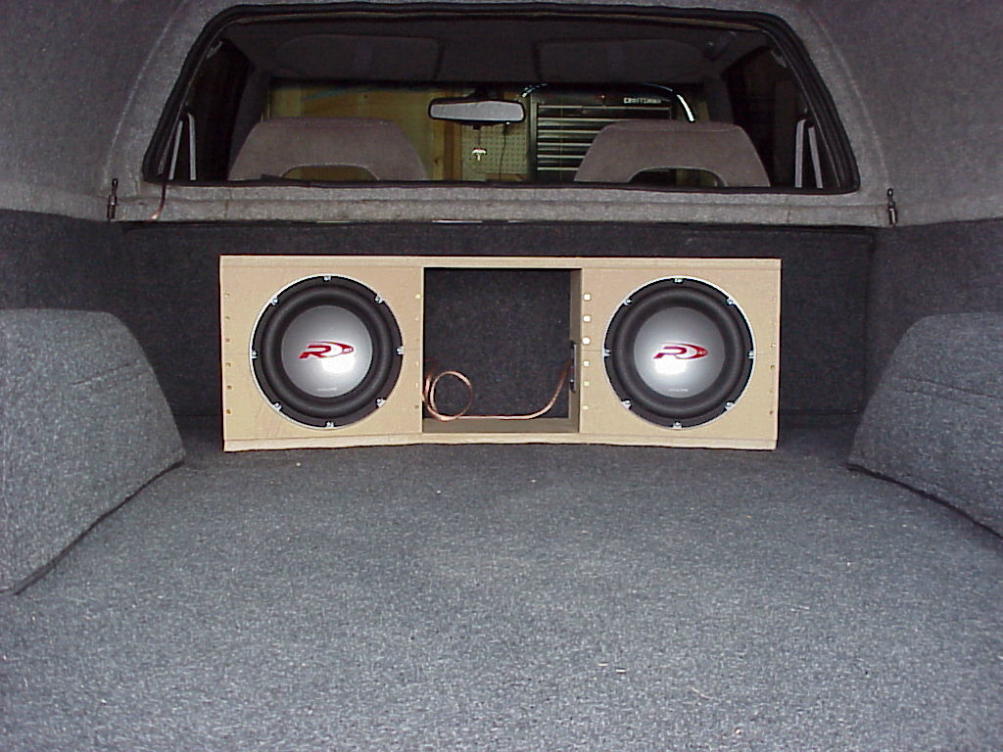

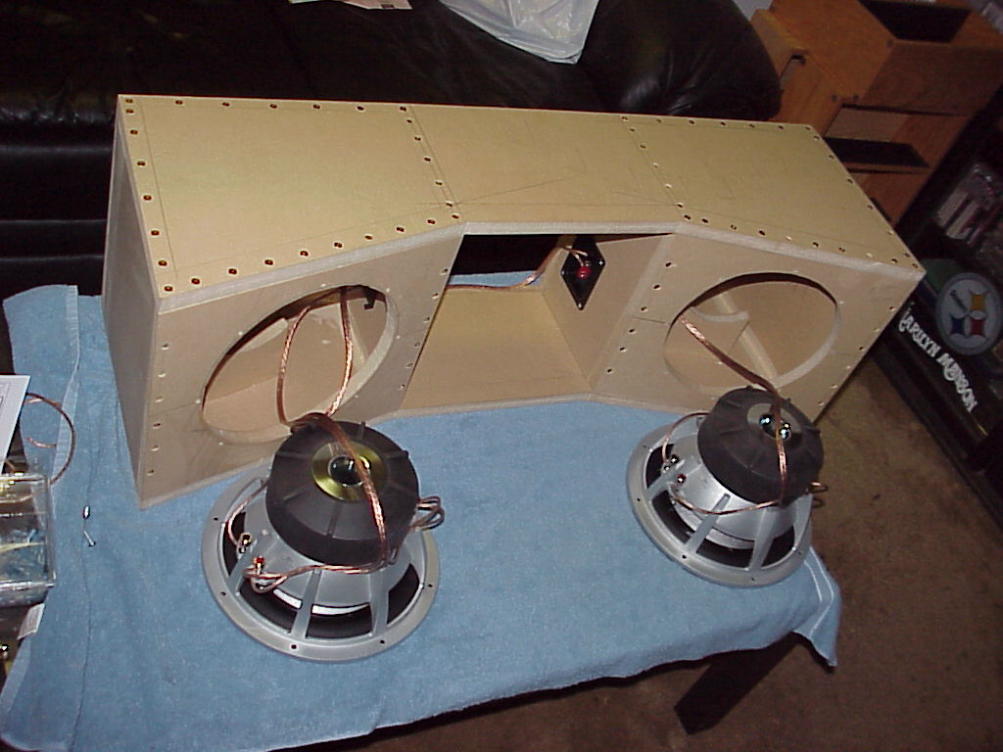

2002 - Test fitting the Alpine 10" Type R subs
2002 - Checking fit in bed

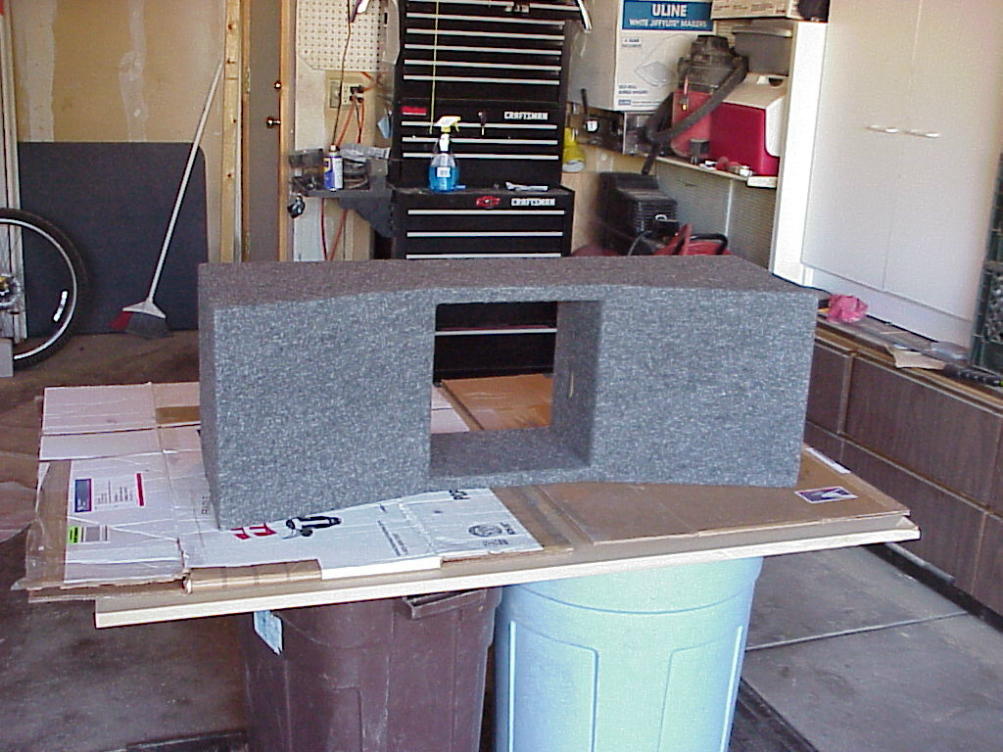

2002 - Coverd with carpet
2002 - Cut out center section

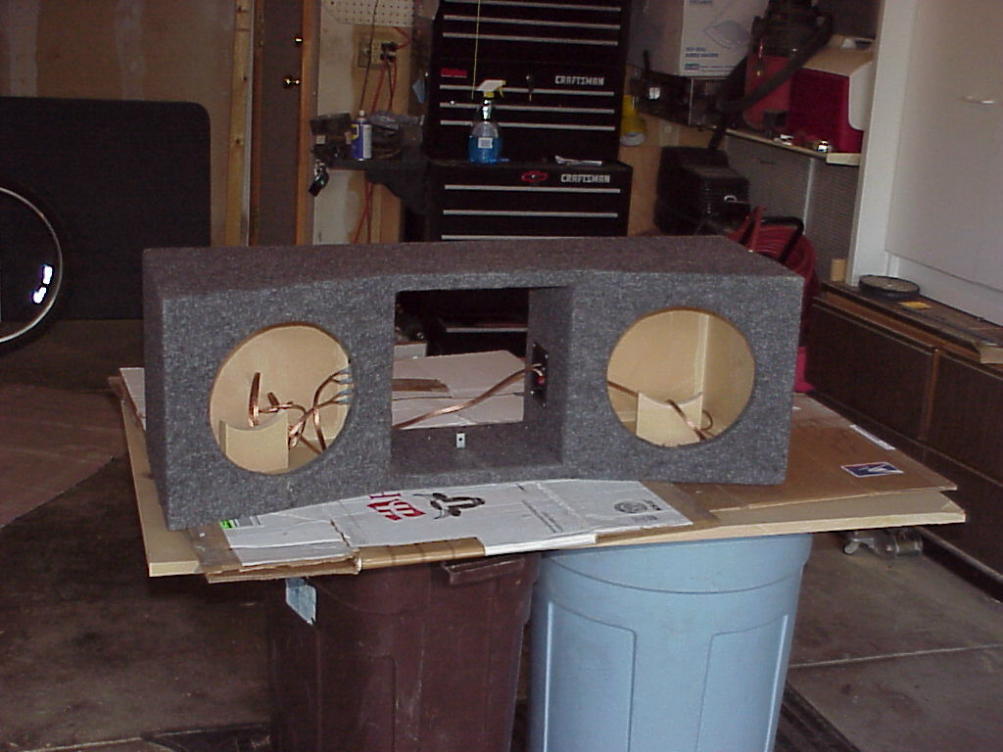

2002 - Cut out holes for subs
2002 - Ready to build side sections
2002 - Starting to build side storage boxes

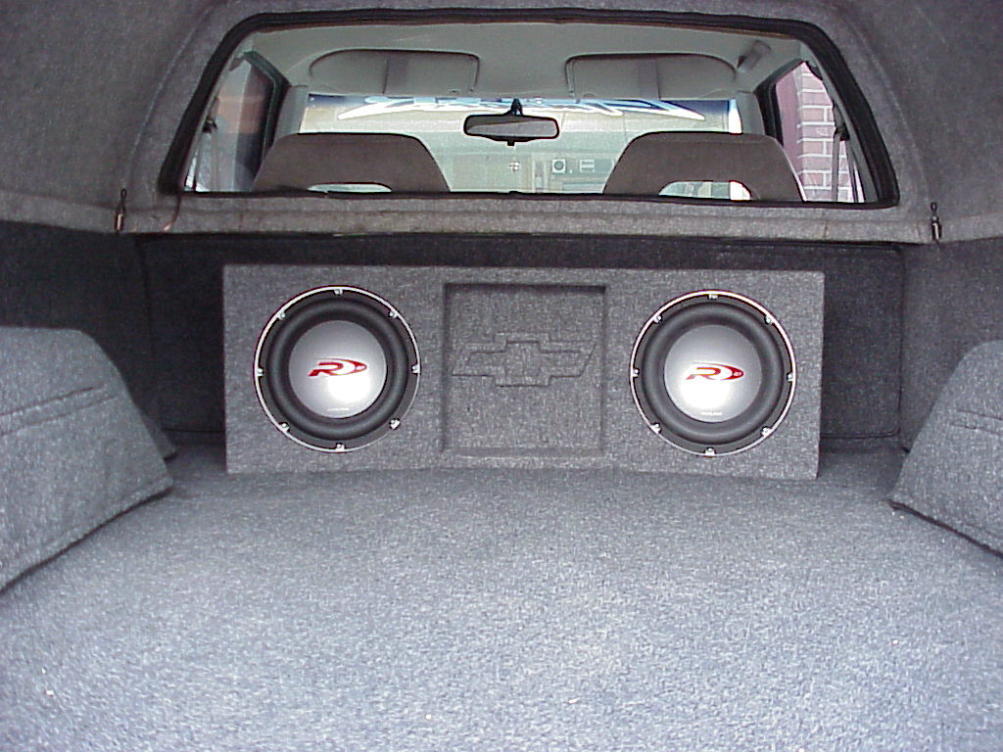

2002 - Finished box

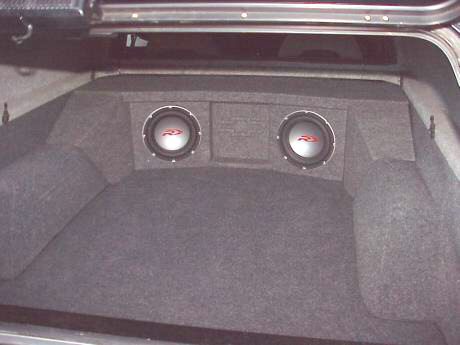

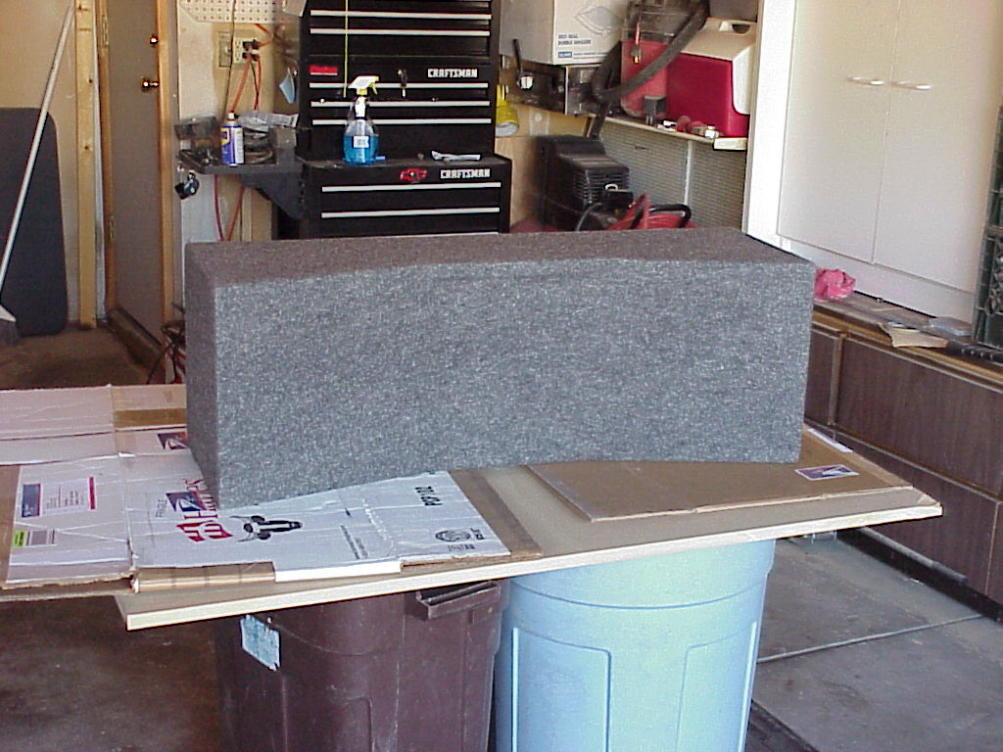

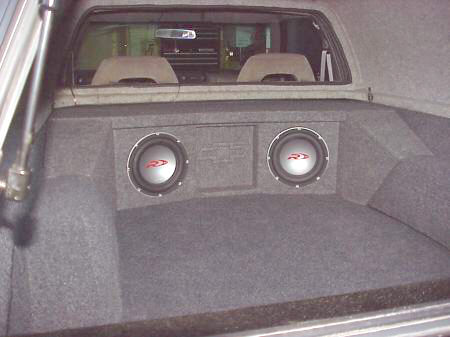

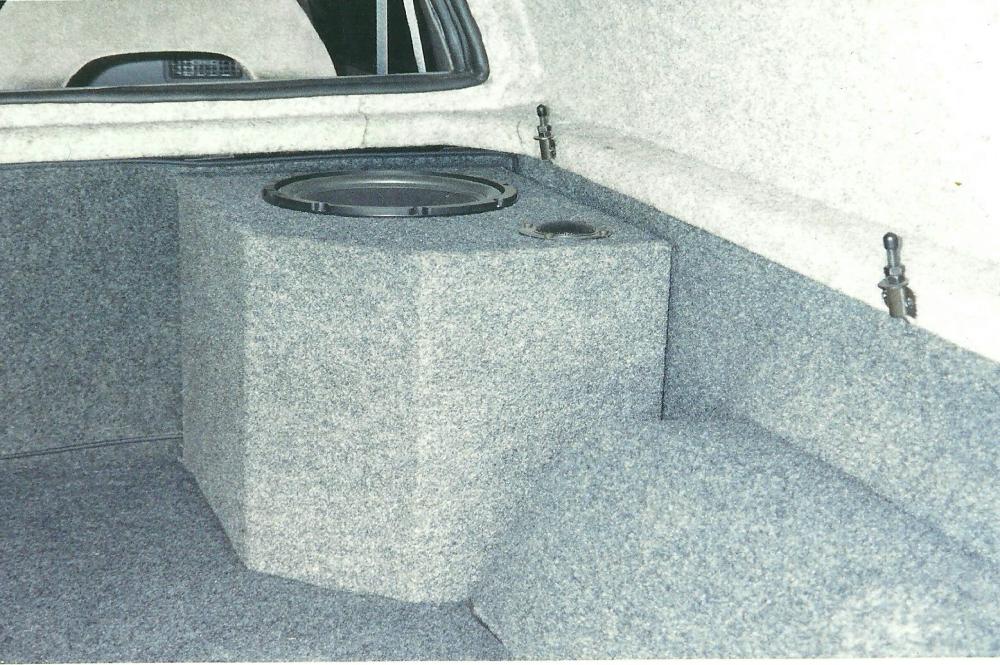

2002 - Sub box
pic #2
2002 - Side by side

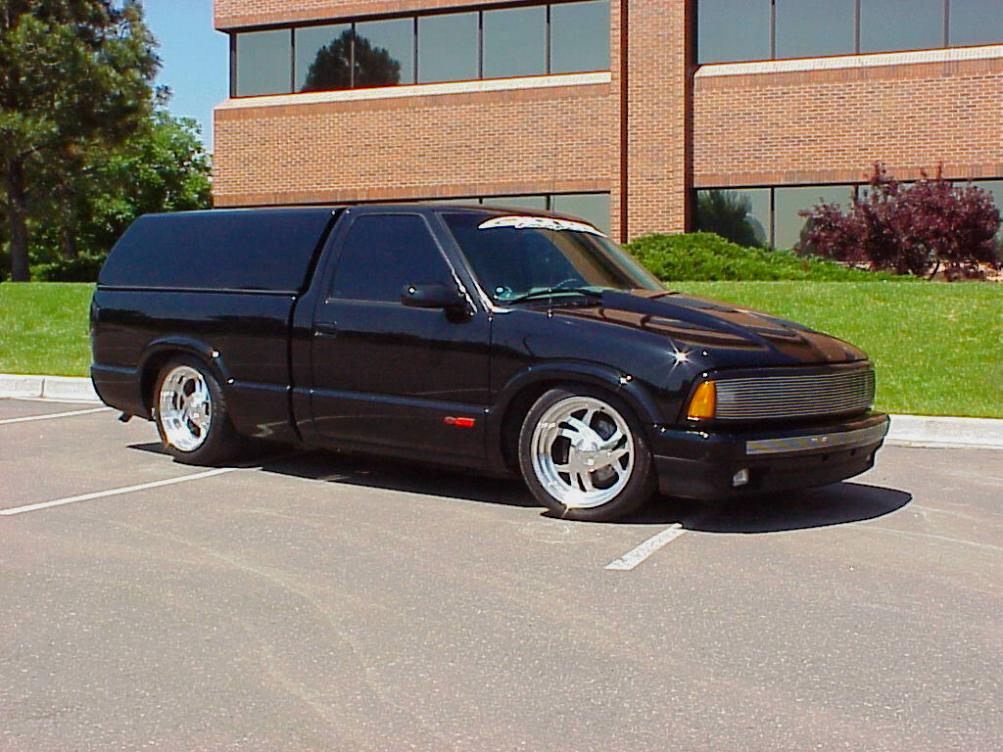

2002 - Trying to get
a good shot to send
to the truck
magazines,
2002 - Shot #2

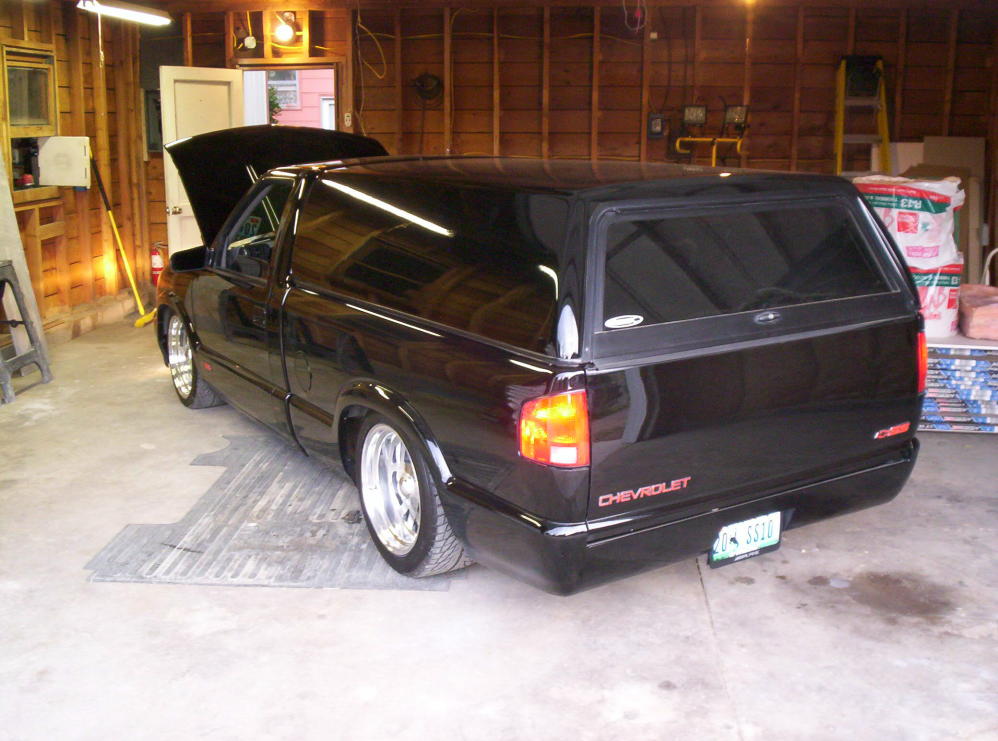

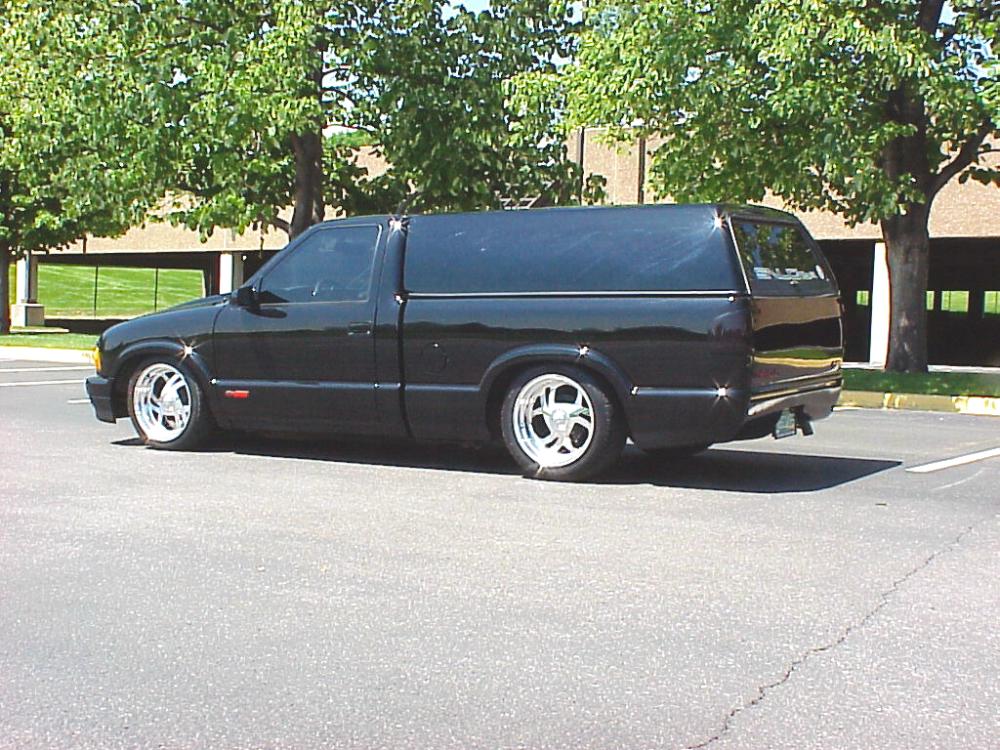

2002 - Back shot

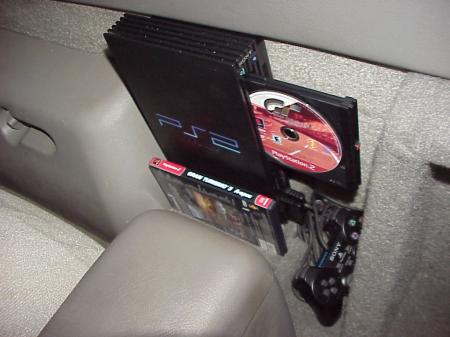

2002 - Playstation
2 installed
behind seats

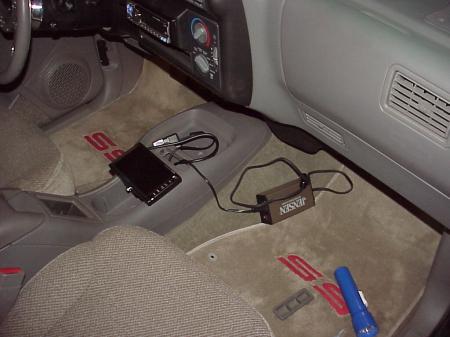

2002 - Still working
on the monitor
install

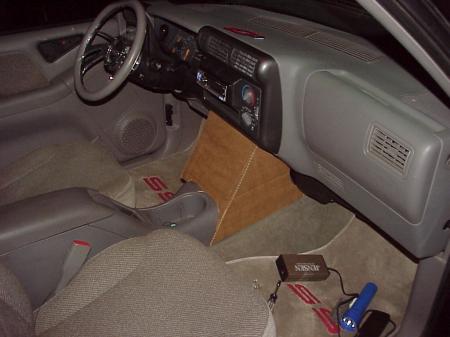

2002 - Cardboard
mock-up patern,
what a pain in
the @ss

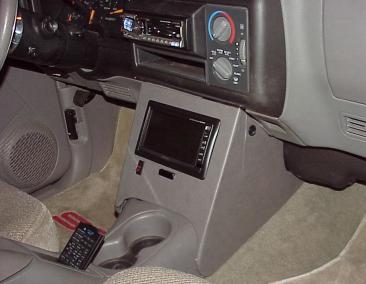

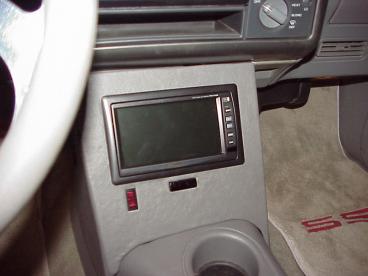

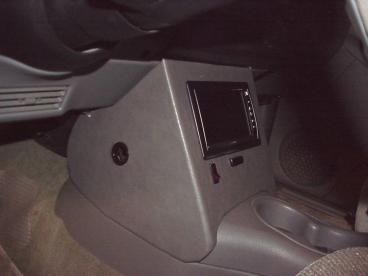

2002 -Finished TV
install, when I get time, I am going to redo it in fiberglass
2002 - TV pic #2
2002 - TV pic #3
2002 - TV brain and
interlink to run the
sound through the
stereo

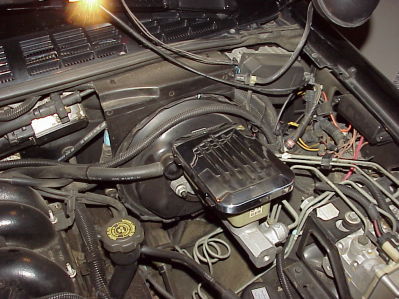

2004 - Billet
Specialties billet
master cylinder
cover

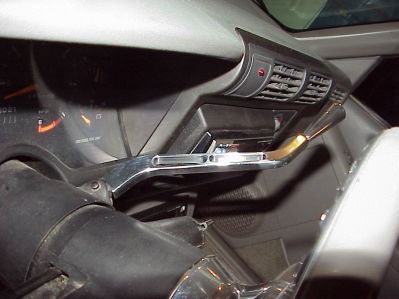

2004 - Billet
Specialties
billet automatic
shifter arm

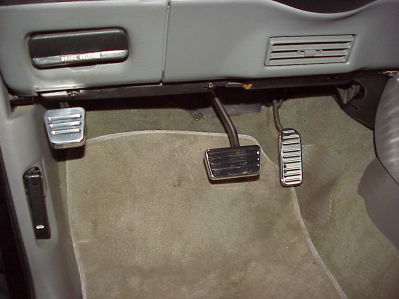

2004 - Billet
Specialties
billet gas and
brake pedals

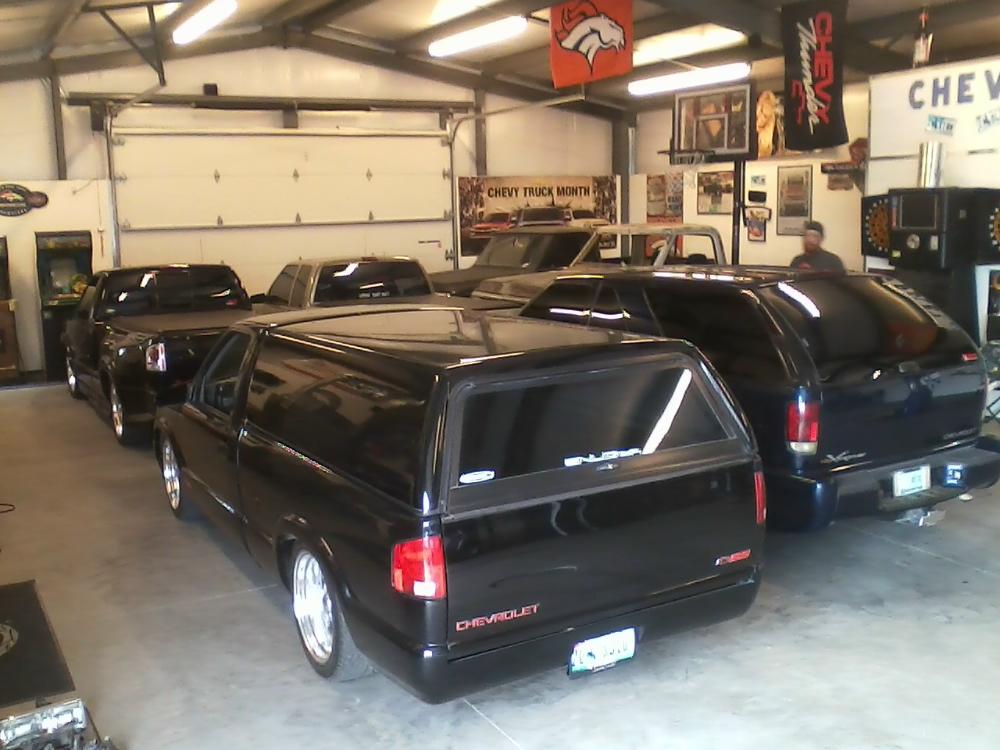

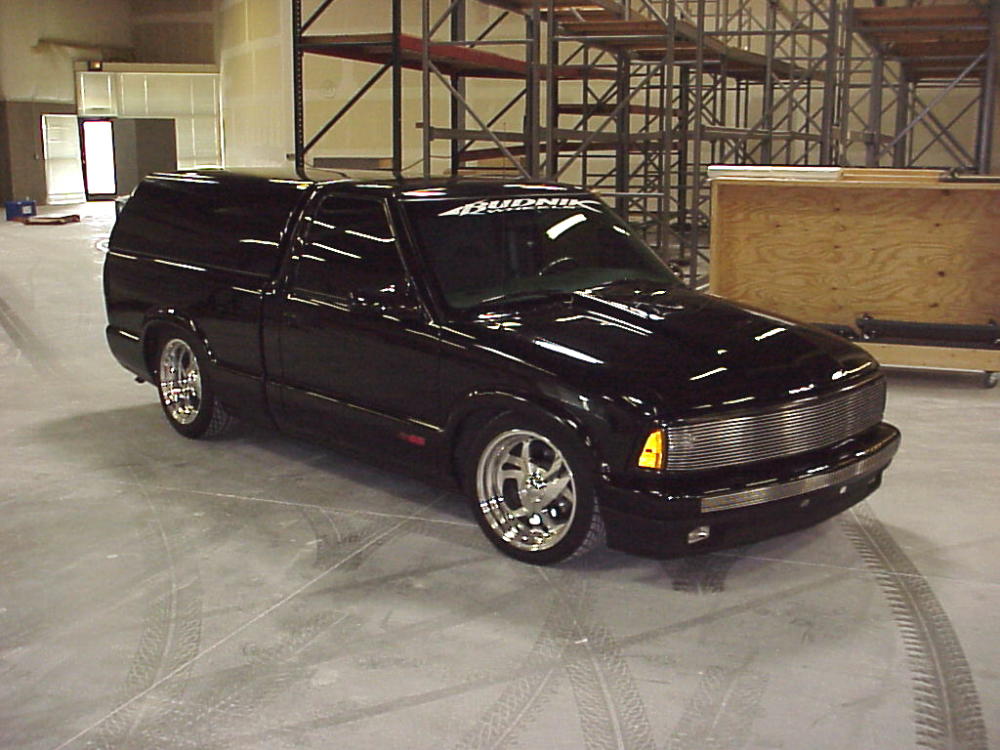

2004 - The furniture company I was working for was expanding so I pulled in the warehouse
2004 - Bought a new bumper and grille to redo the phantoms properly
2004 - Also got a new air dam that didnt have plate braket holes

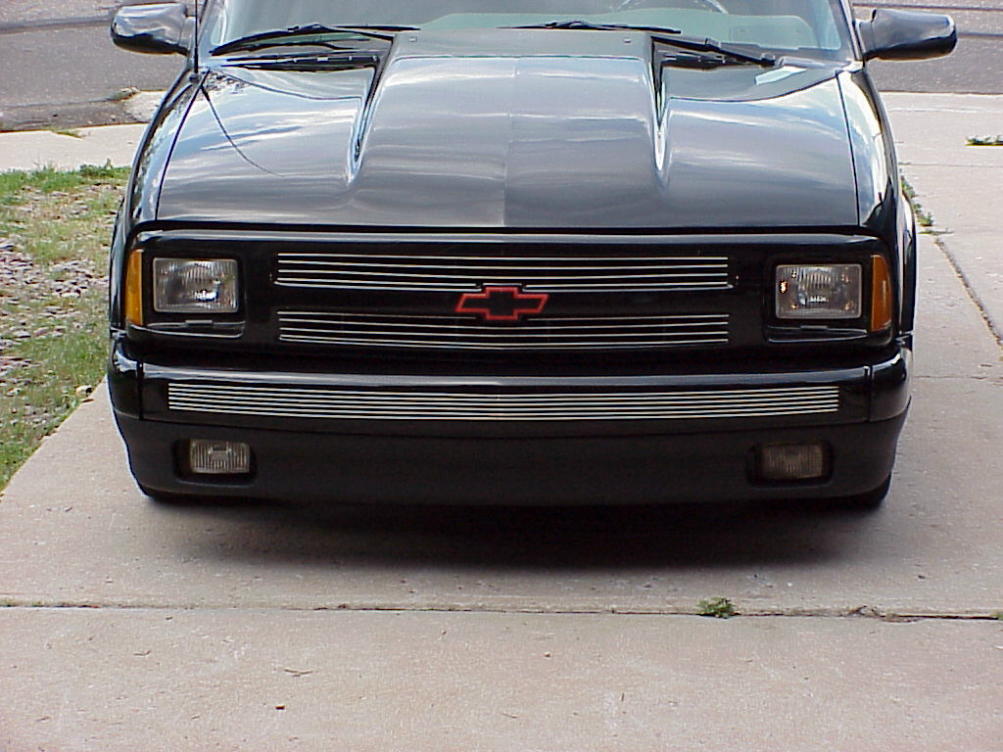

2004 - Stock grille temporarily in the truck while working on the phantom grille
2004 - Starting to like the look of it

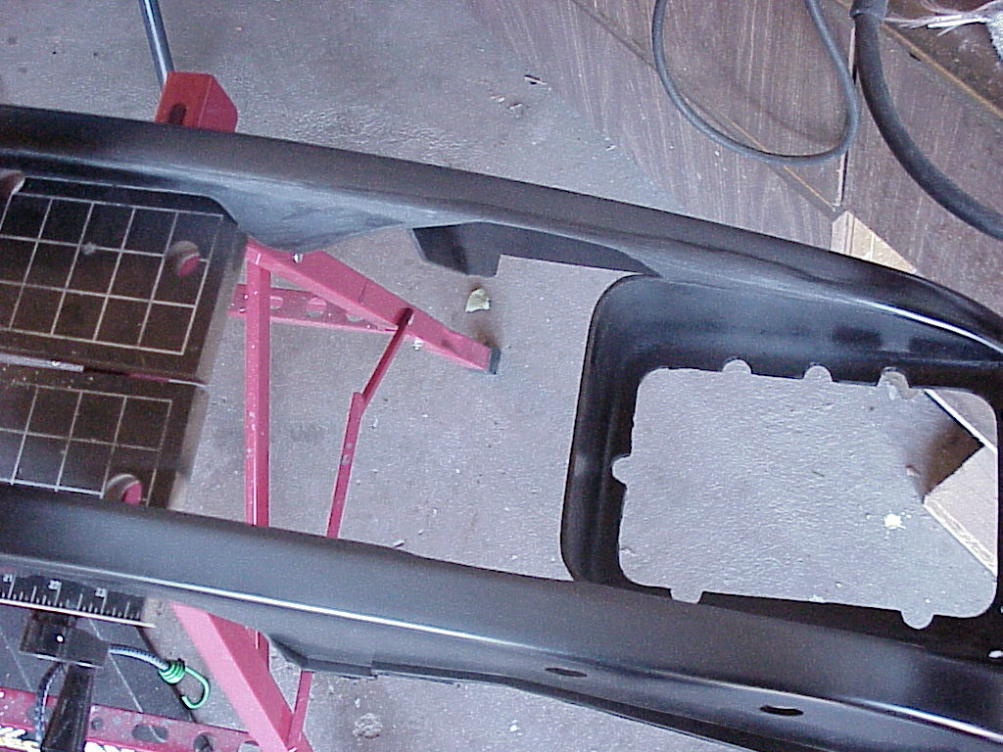

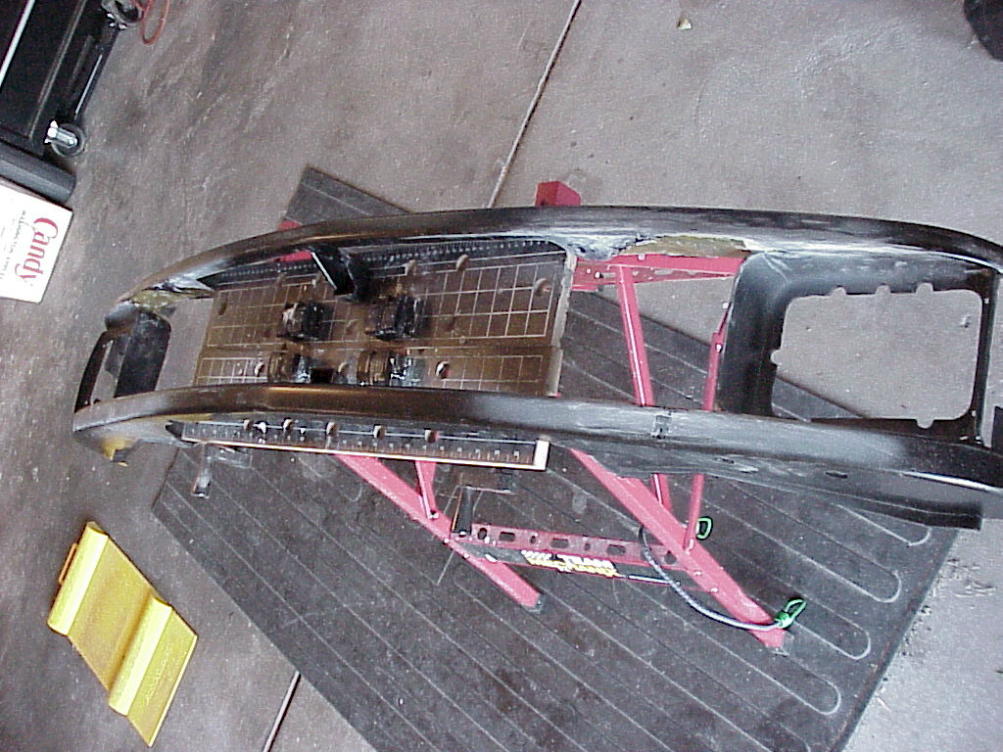

2004 - Cutting out the center section of the new grille

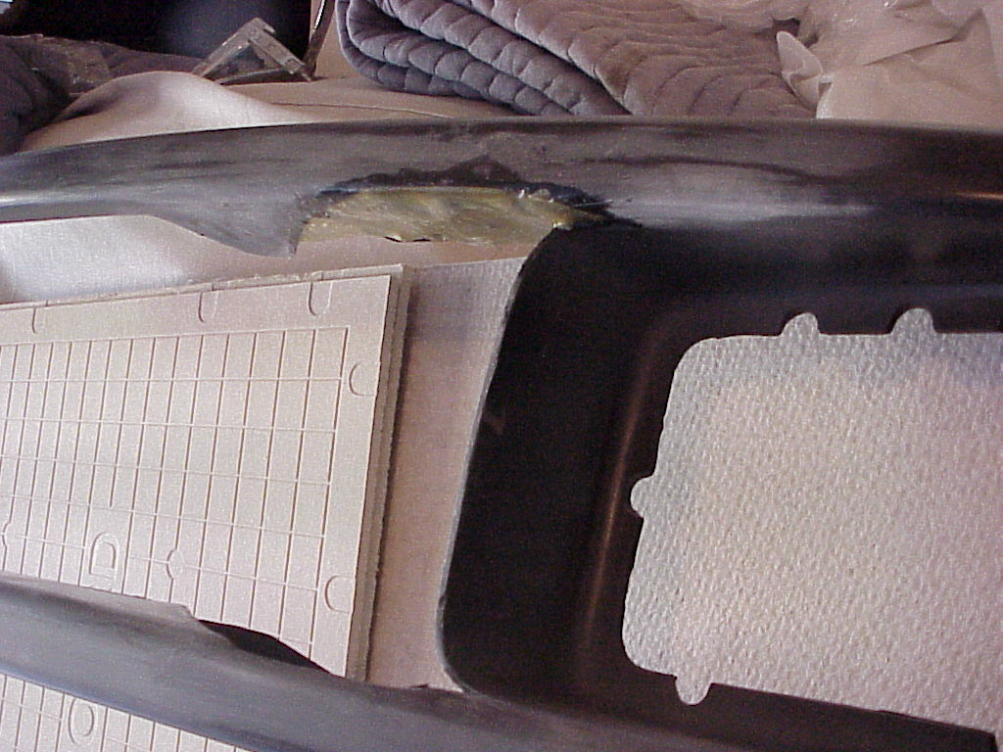

2004 - Fiberglassing in the holes to smooth out the hole so you cant see the cut like the first grille I did
2004 - Close up of my first time glassing anything
2004 - More fiberglassing

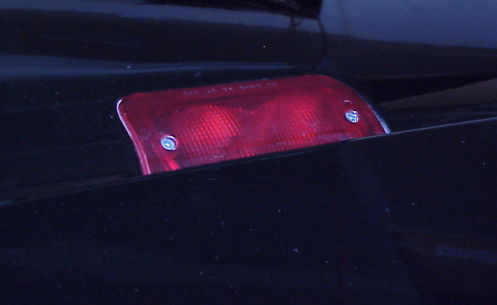

2005 - Stock third brake light

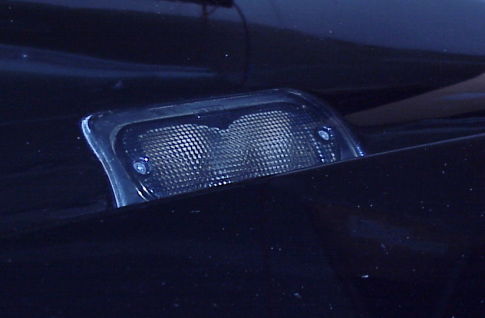

2005 - Replaced it with a smoked one, cant see it with the topper anyway
2008 - Nasty stock Snugtop 3rd brake light

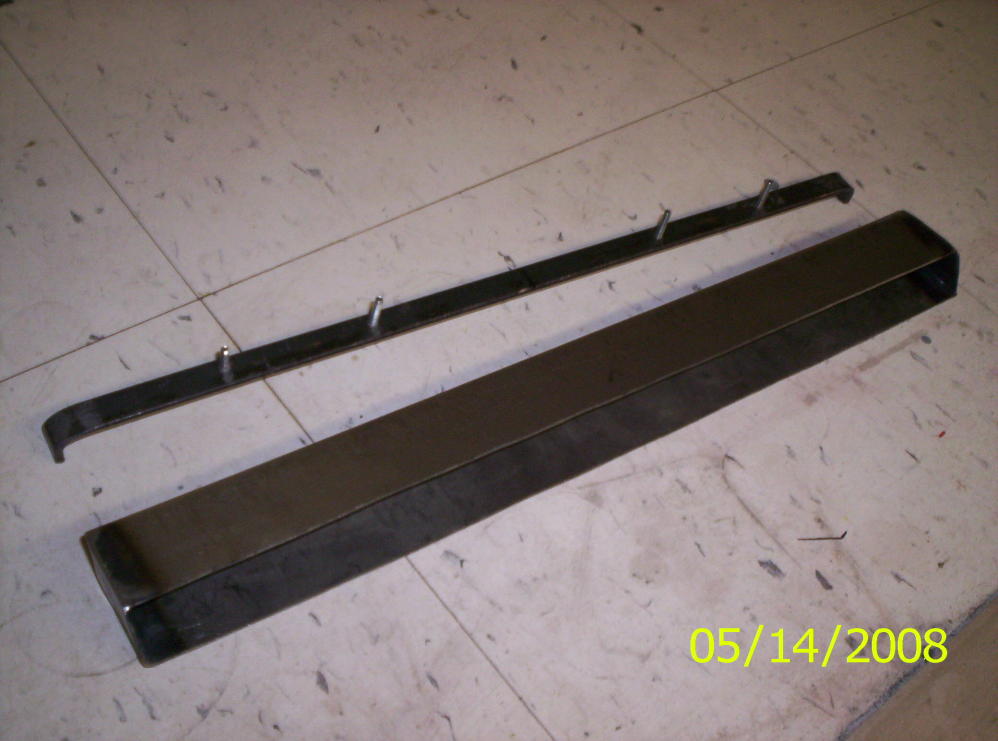

2008 - LED brake light housing I made from sheet metal, cant find my pics of bending and welding it

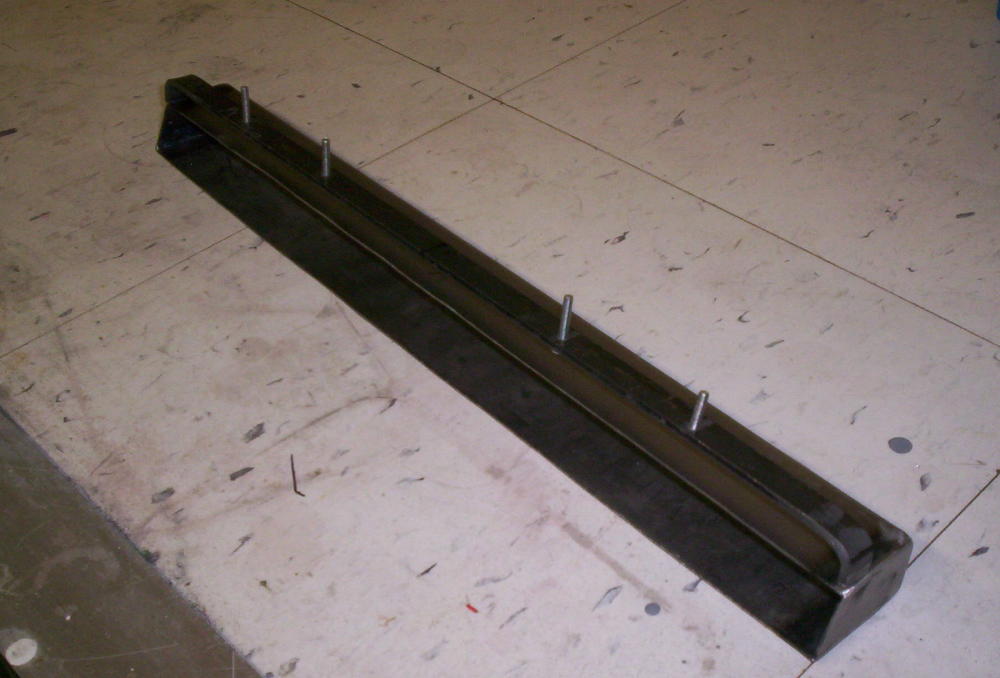

2008 -Welded the mounting braket on
2008 - 35 LED 3rd brake light mounted and working. much better than stock IMO
2009 - Inside shot of brake light housing
2009 - Finally got around to finishing the glassing of the new grille shell

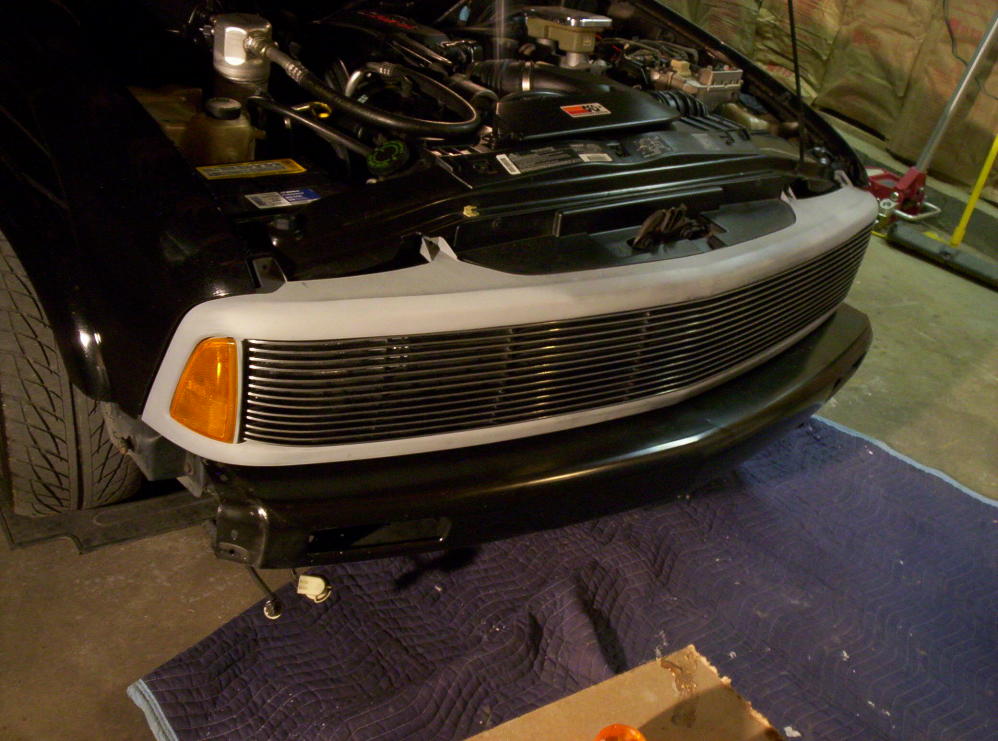

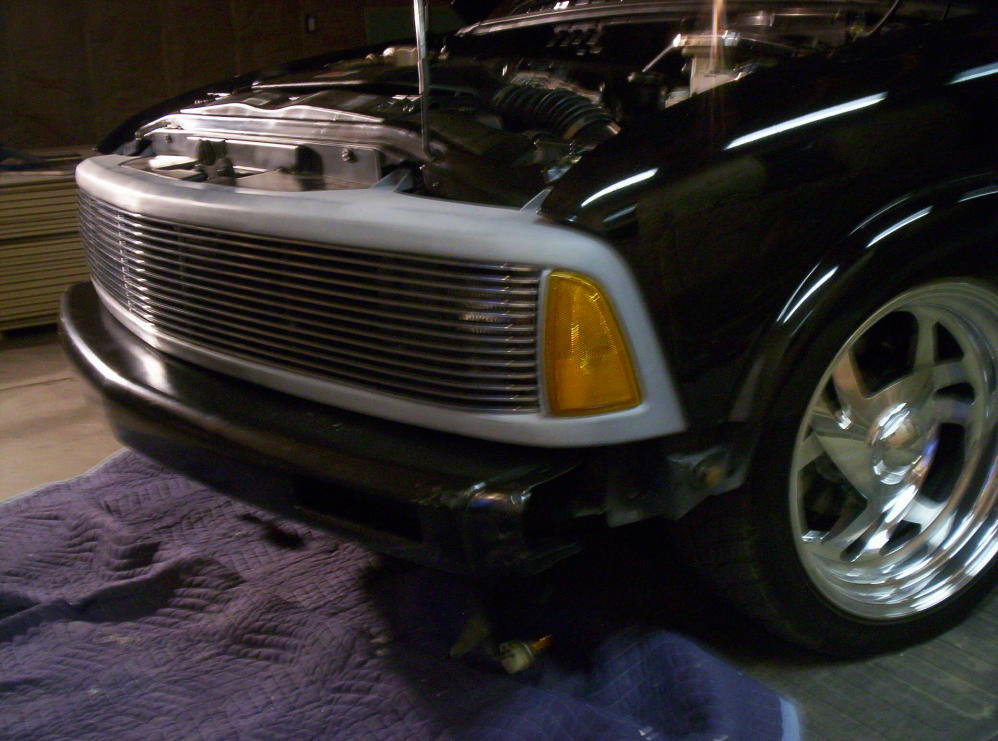

2009 - Test fitting before getting it ready to paint
2009 - Both sides line up really well, even though the pic is blurry!
2009 - Random rear shot while working on the front

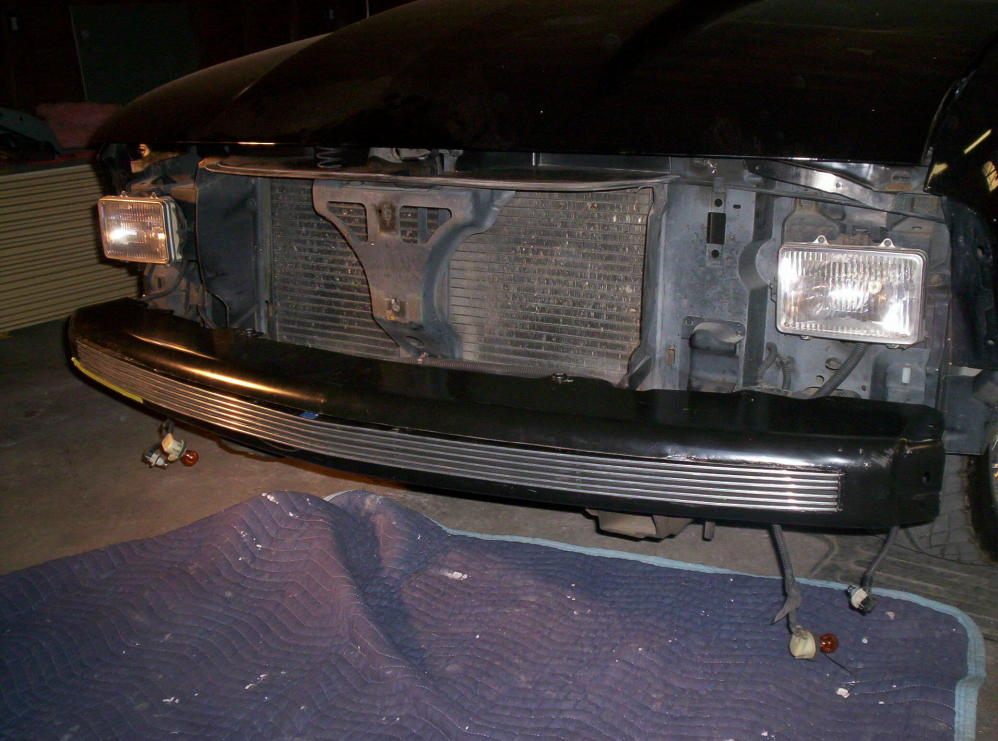

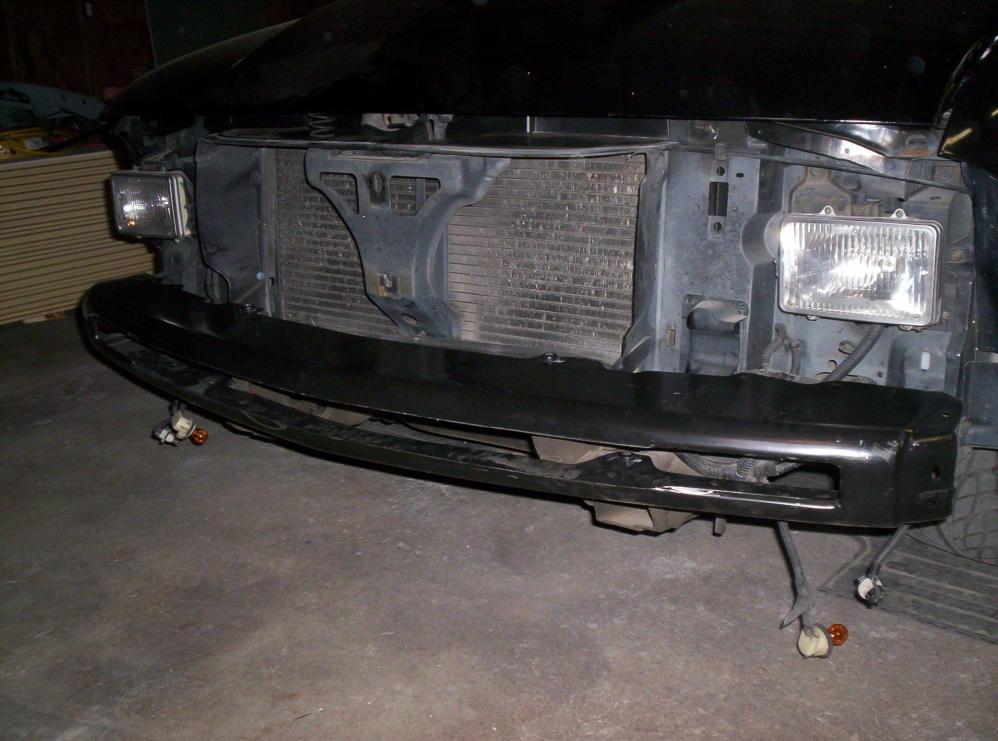

2009 - Cutting a new bumper for the phantom bumper insert, didnt like the gaps on the Alter Images bumper

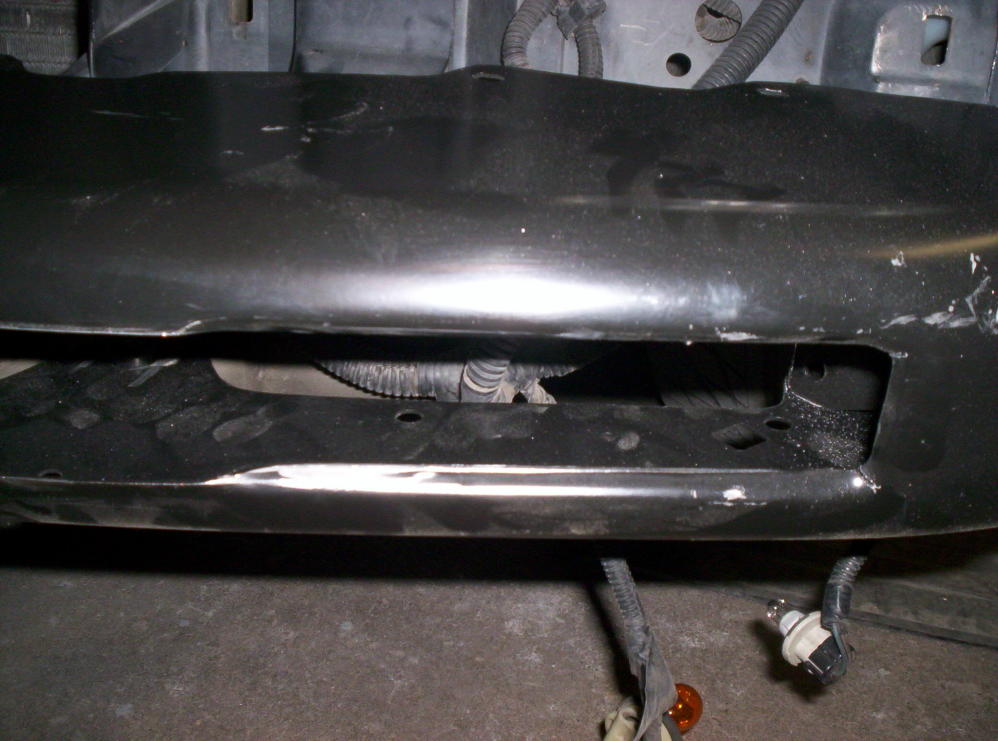

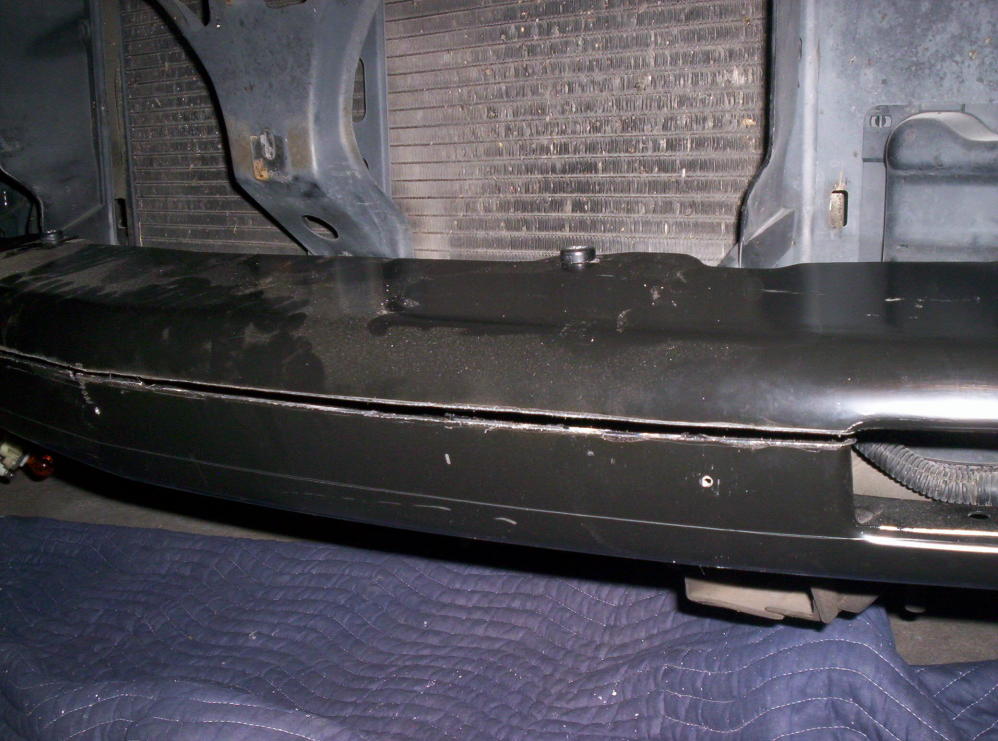

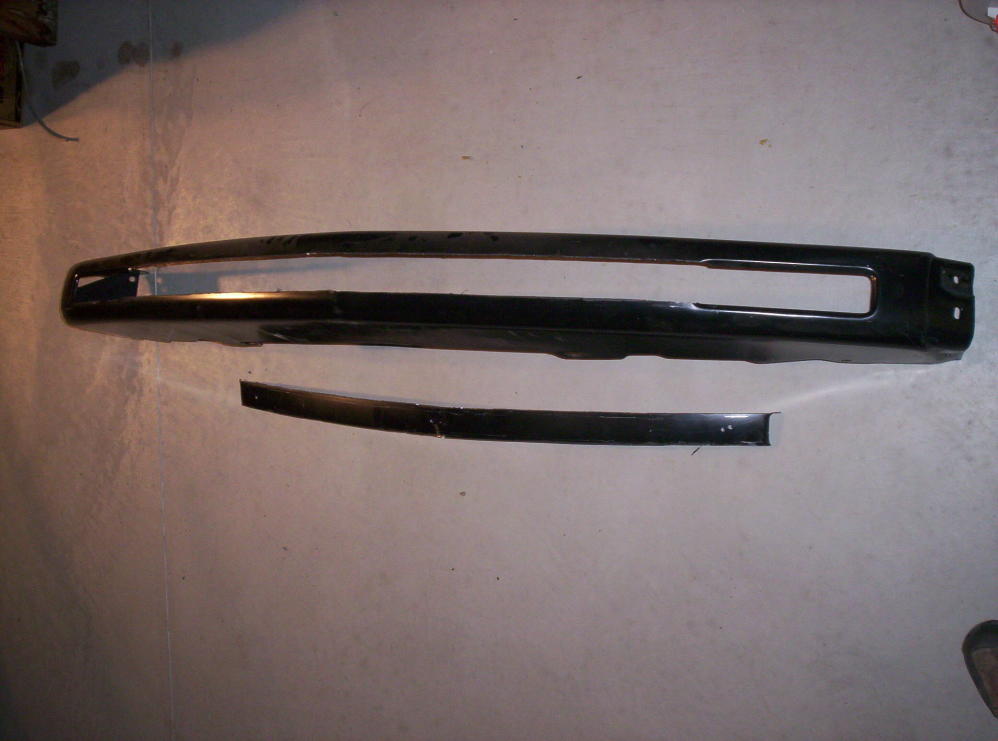

2009 - Center section out, very hard to get the lines to match the insert
2009 - Test fitting to see if it was going to distort the opening, looking good so far

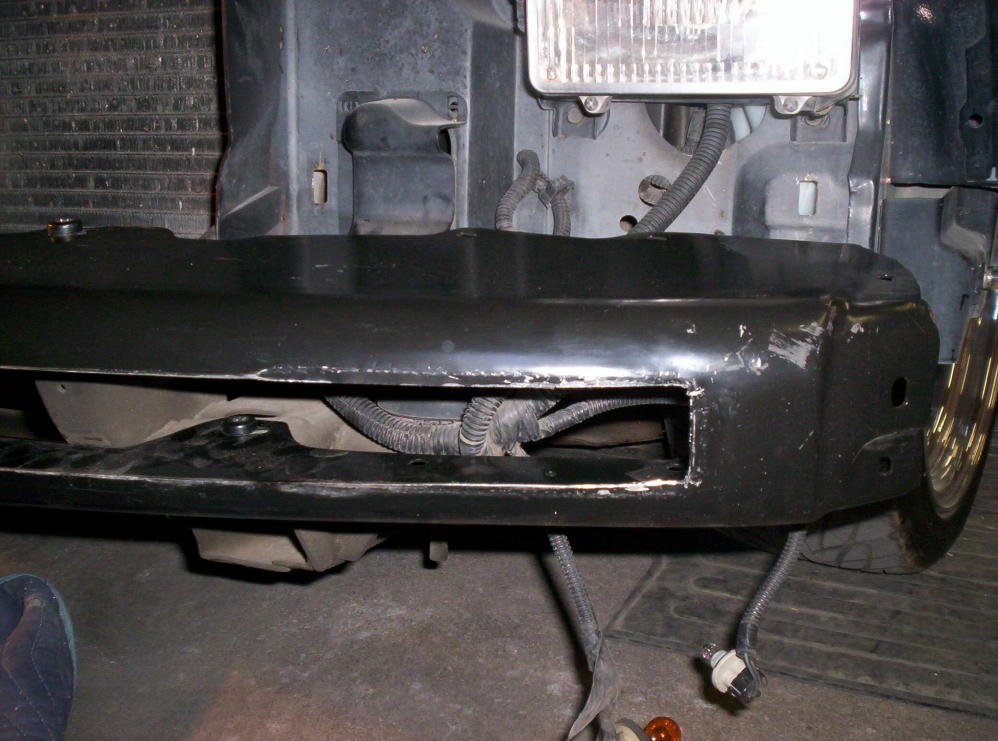

2009 - Have to flatten out the old turn signal holes
2009 - Flattened out and trimmed the lip
2009 - Test fit billet after cutting, center of bumper has spread apart slightly
2009 - Clamping the center for tighter fit when welding brackets

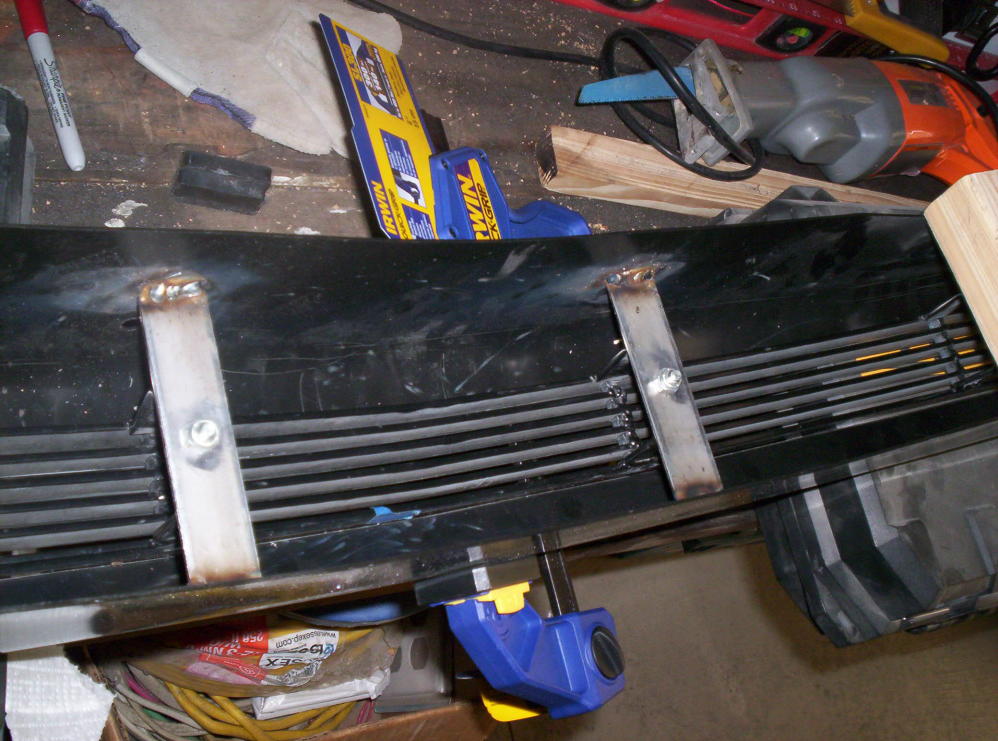

2009 - 2 of the 4 mounting brackets welded in

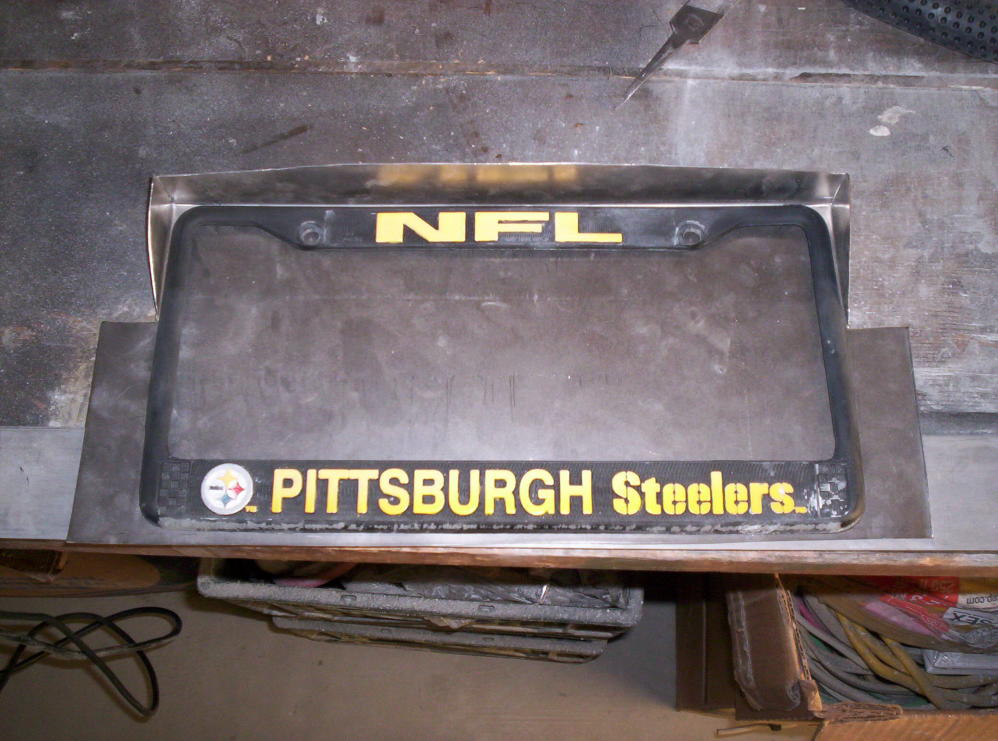

2009 - Starting pattern for license plate mount
2009 - Top of bracket bent
2009 - Bottom sides bent

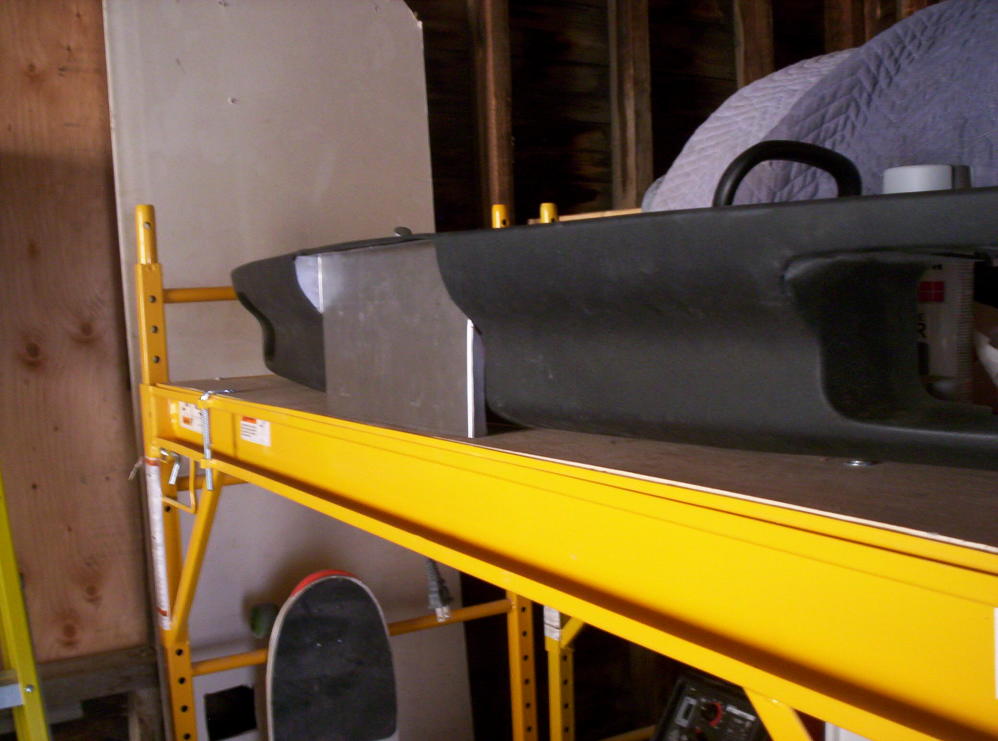

2009 - Test fit into air dam, needs to be shortened
2009 - Bottom edge trimmed and bent to be higher than the bottom of the air dam
2009 - Bottom trimmed and cut to curve of air dam and a bigger edge added to the top sides for support

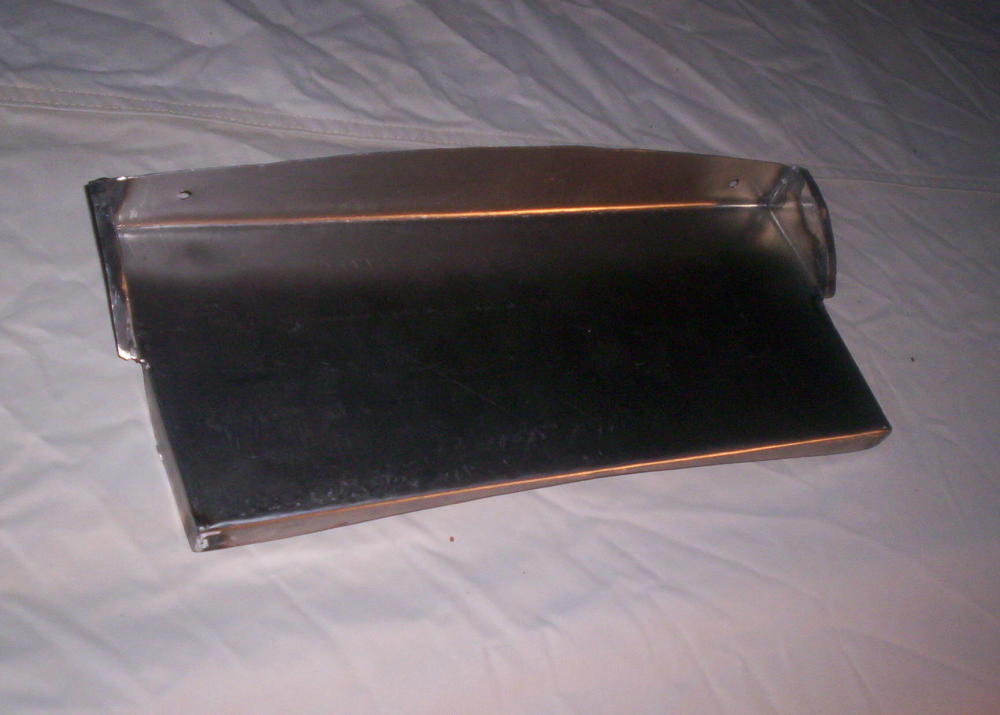

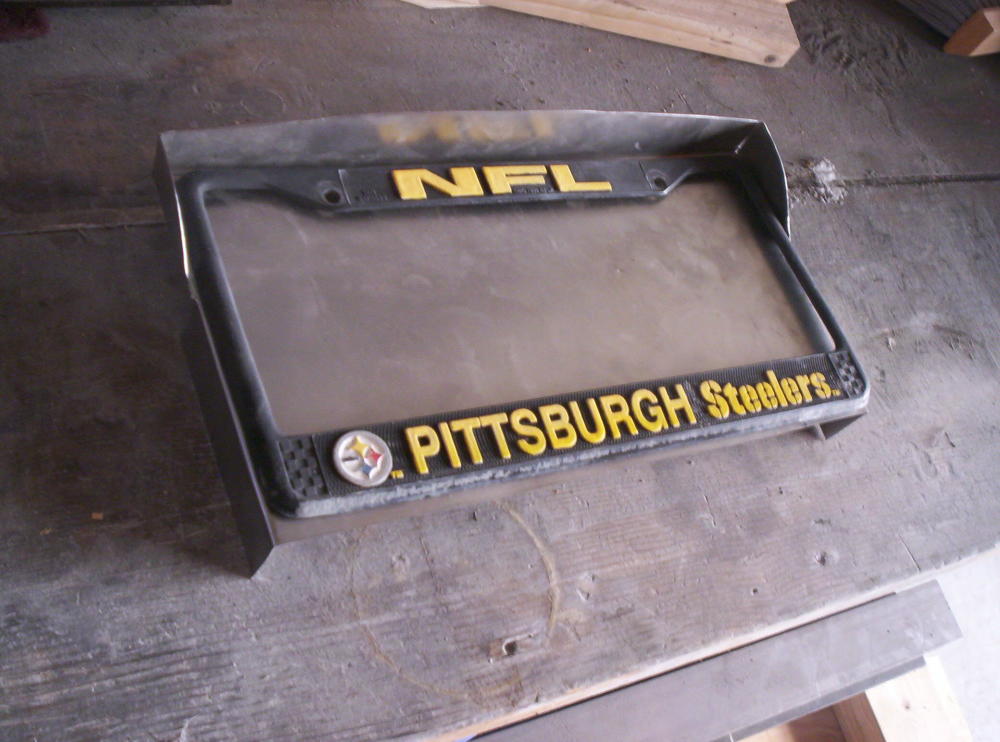

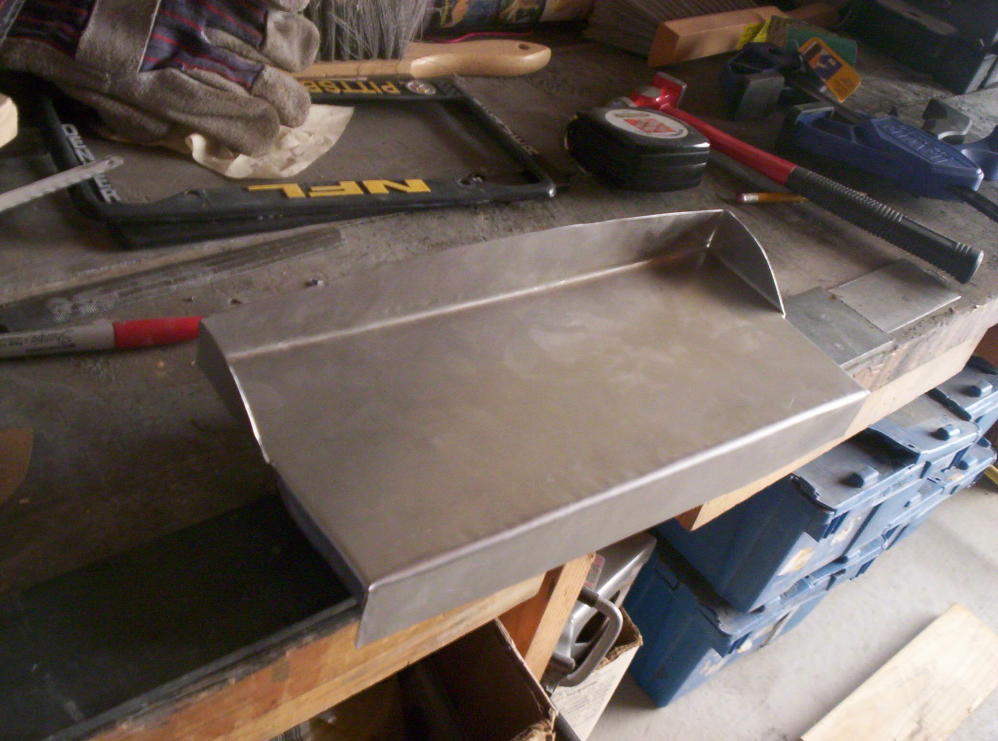

2009 - Finished bracket

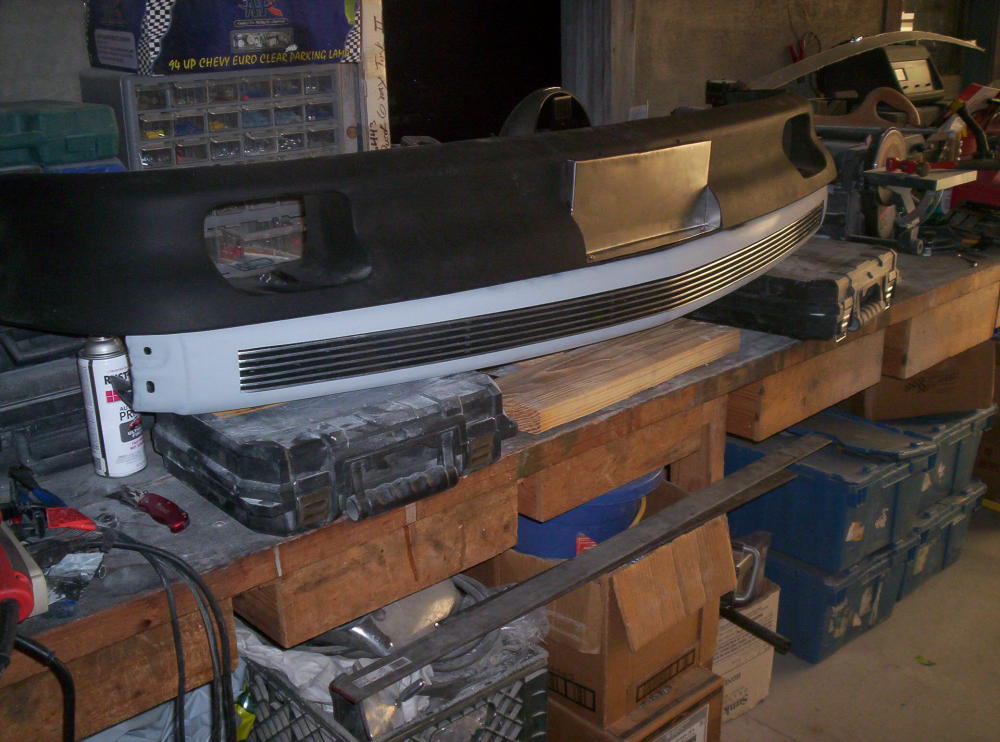

2009 - Test fitting on bumper

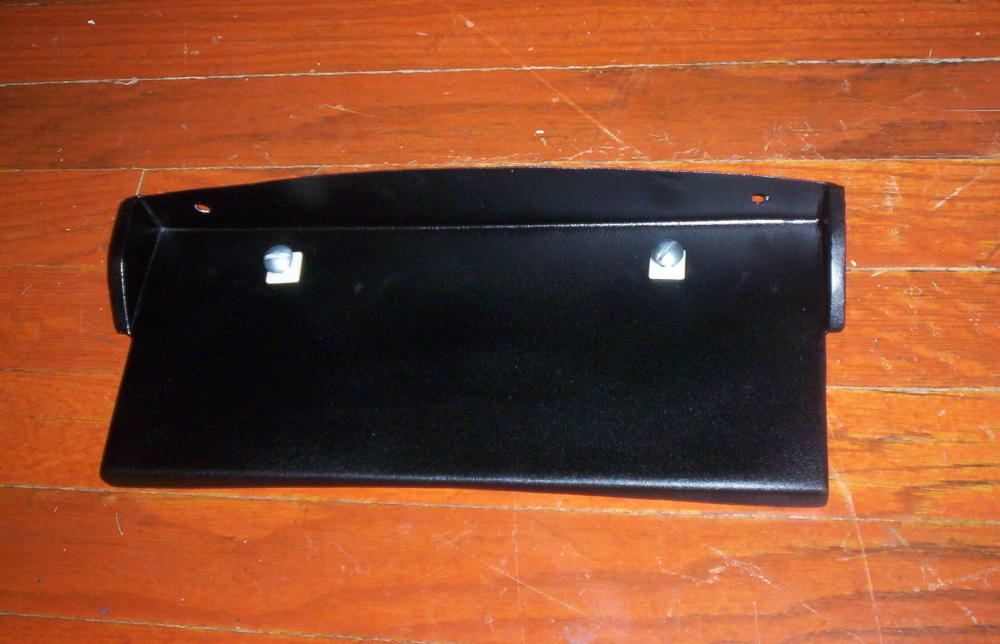

2009 - Painted textured flat black to match air dam
2009 - Grille, bumper and bumper caps ready to be primered
2009 - Bumper primered

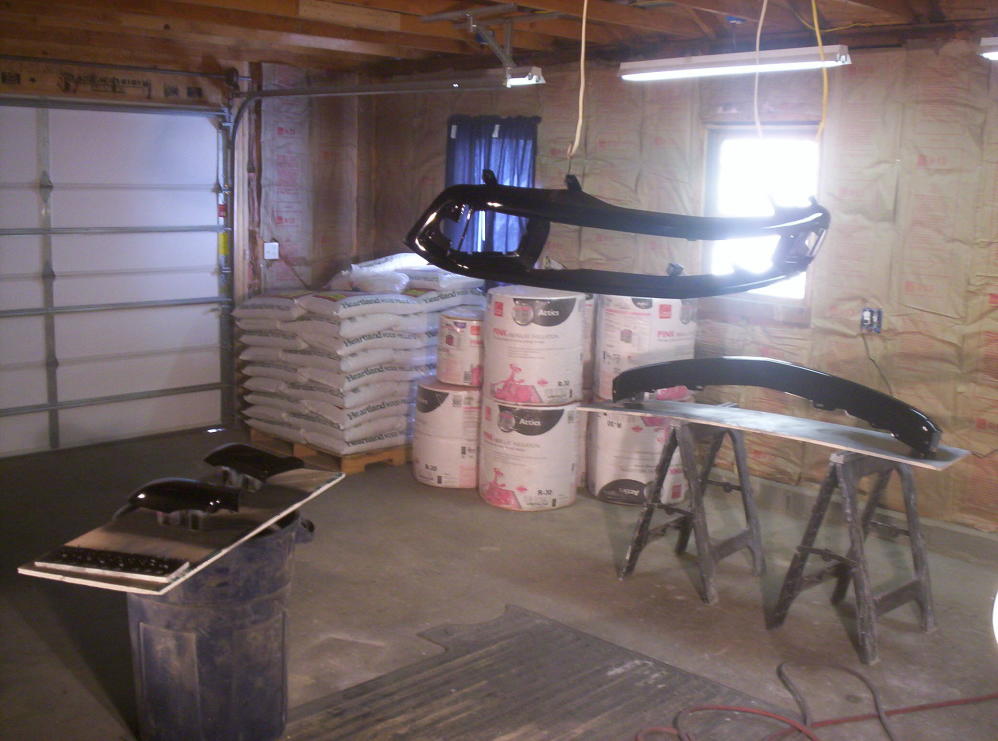

2009 - All 4 pieces painted

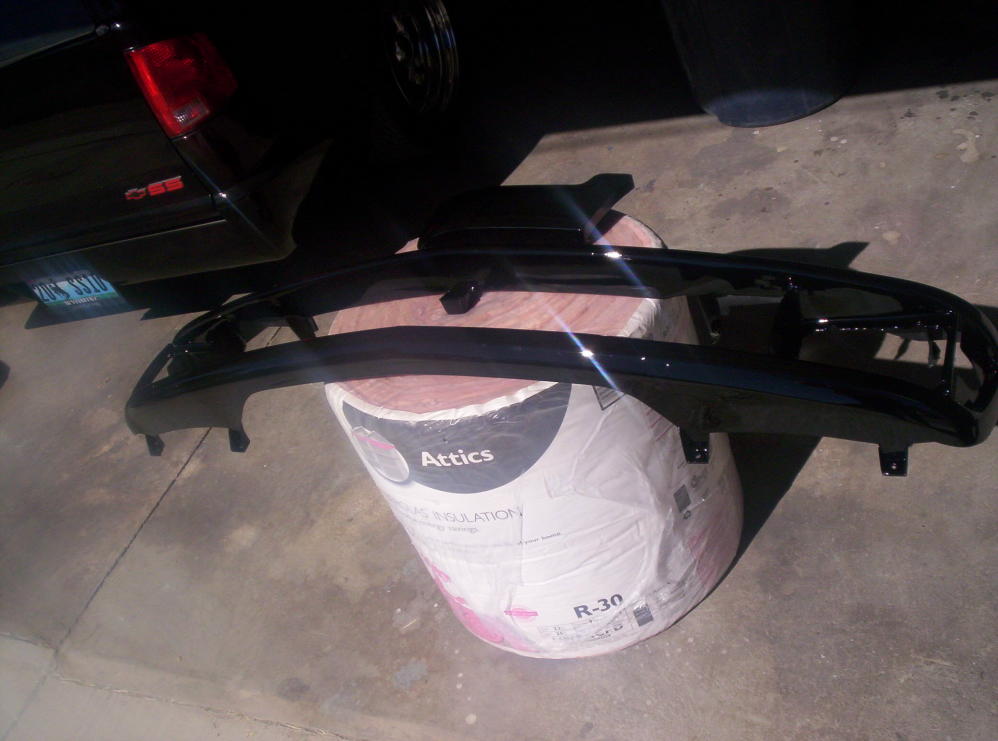

2009 - Grille painted and cleared
2009 - Crappy pics due to too much shine!!

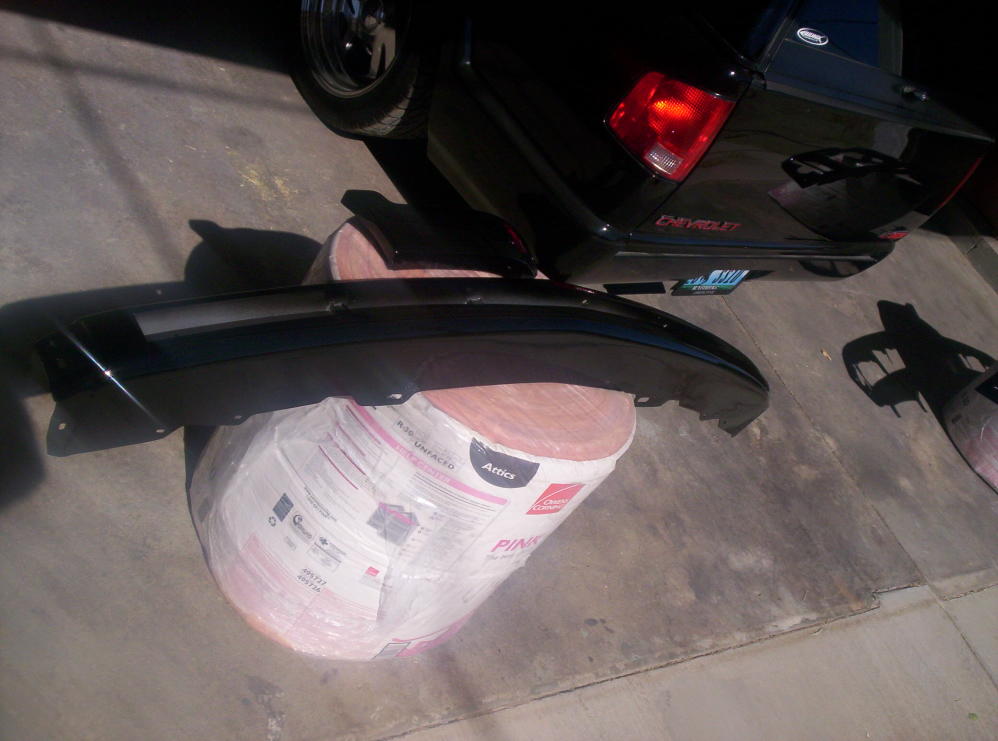

2009 - Bumper painted and cleared

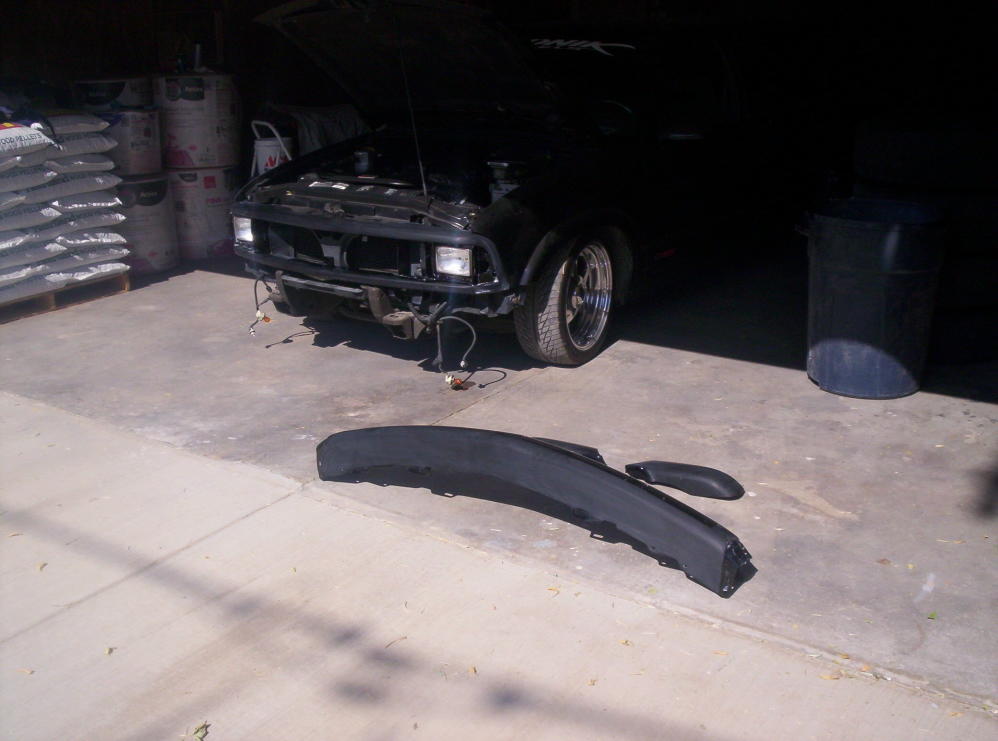

2009 - Wet sanded and ready for buffing

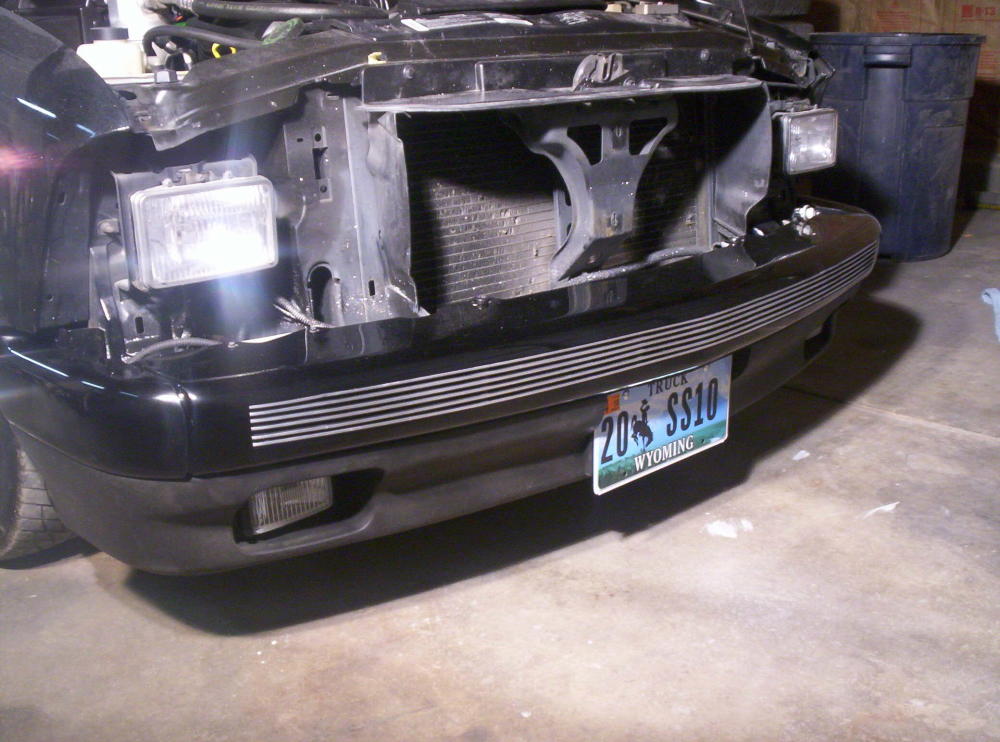

2009 - Bumper finally on

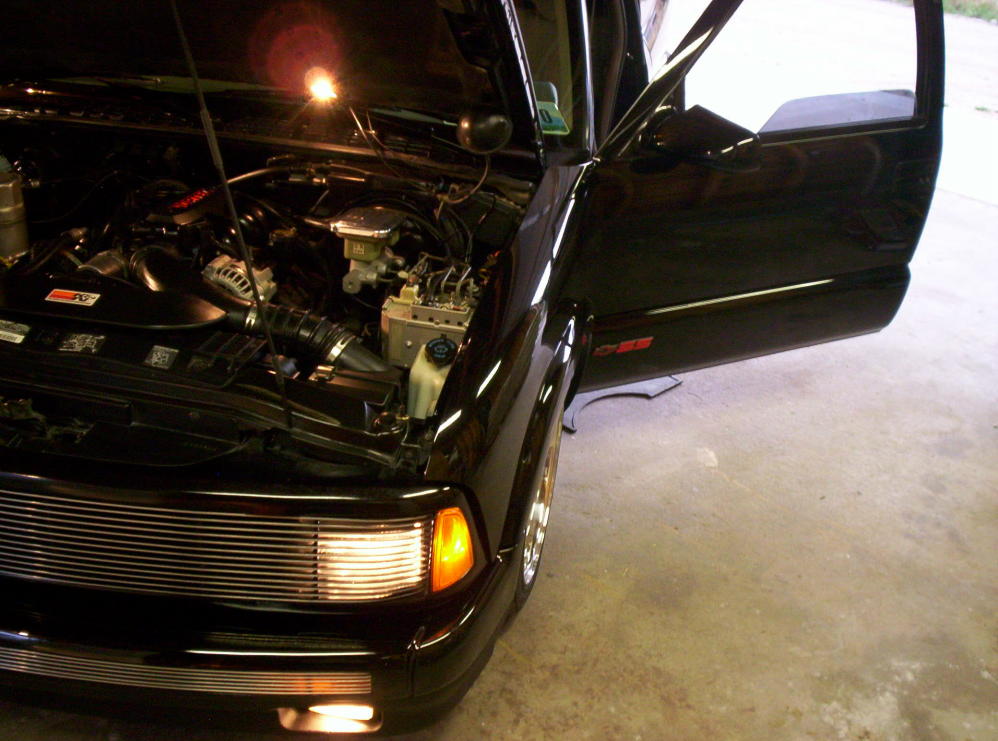

2009 - Random inserted shot I thought was cool

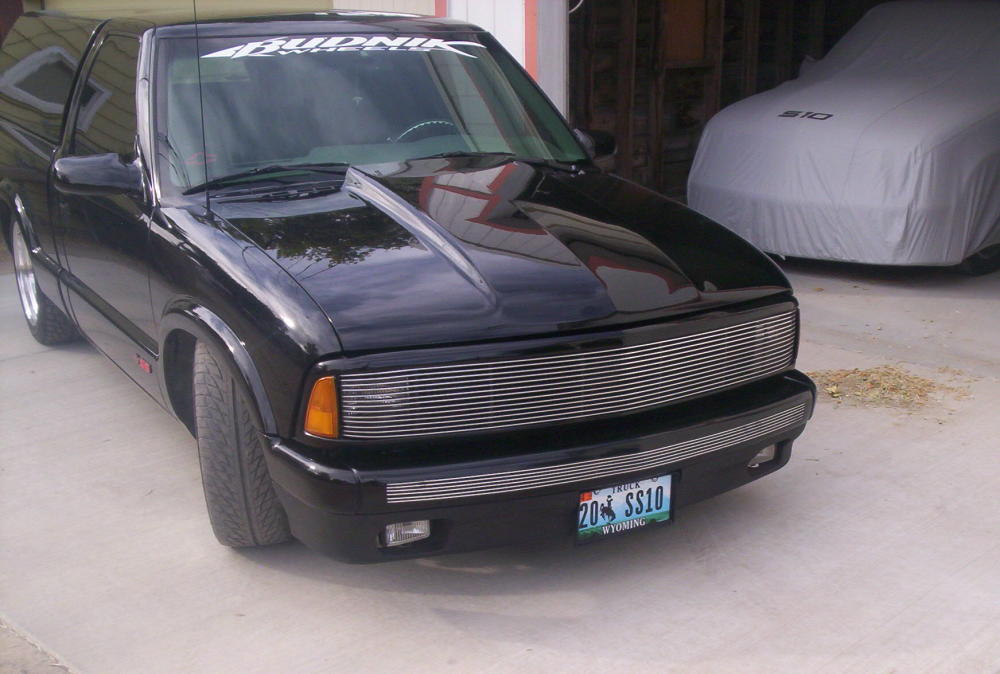

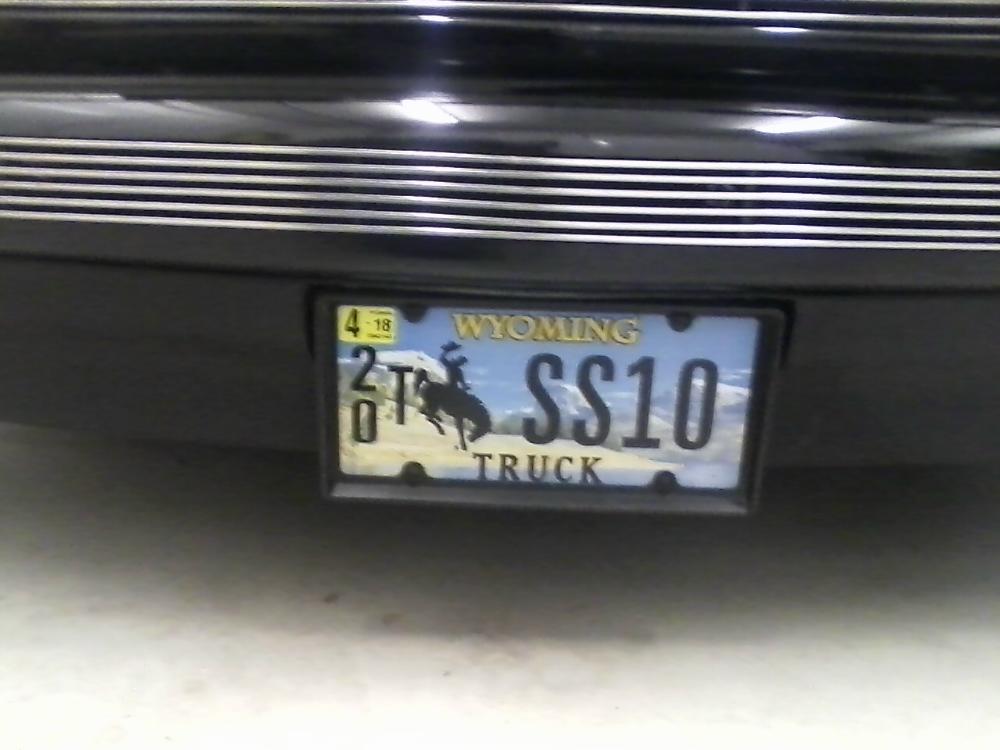

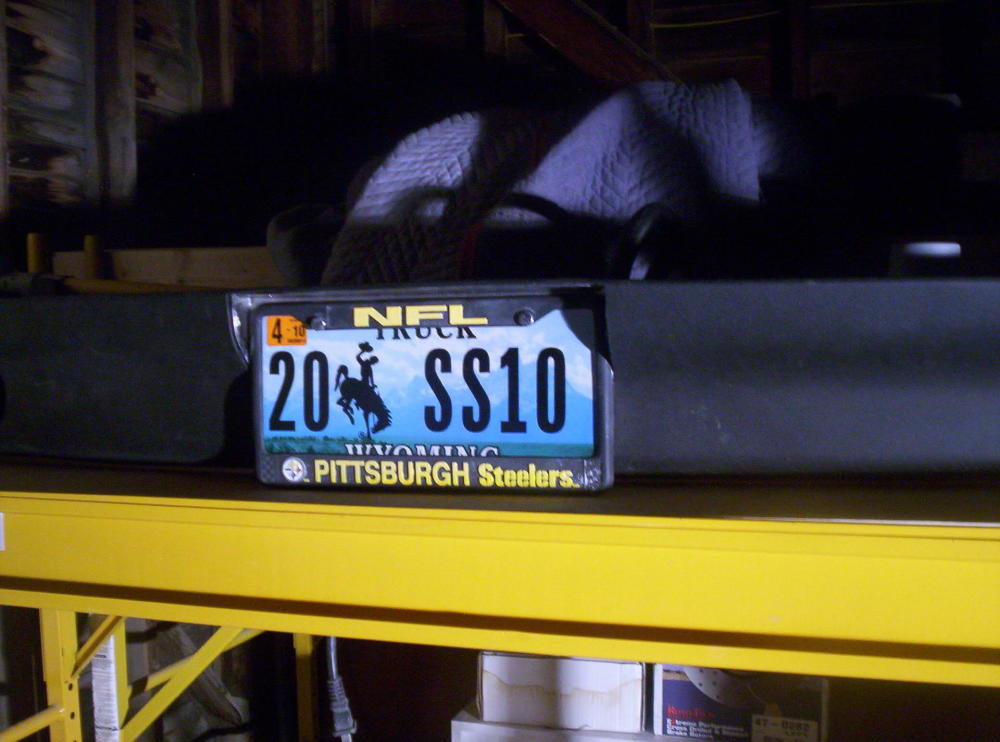

2009 - Finished!! Had to make the plate bracket so the ever busy Wyoming police wont ticket me!! (for this anyway)
2009 - Another pic, might redo the plate mount at an angle, not totally happy with it

June 15, 2013 - July 22, 2013

Day before fathers day, getting my truck ready for a Father's Day car show, my truck slipped off the floor jack, crushing my rocker panel as I was getting ready to change my oil, not giving it my full attention as my wonderful neighbour had just left and left a puppy in the back yard and it had been barking NONSTOP (and I mean NONSTOP!! I have never heard so many profanities being yelled from all over my neighbourhood!) for a full hour when this happened as I was very p*ssed off and then extremely p*ssed off after it fell.
Here are pics of the repair

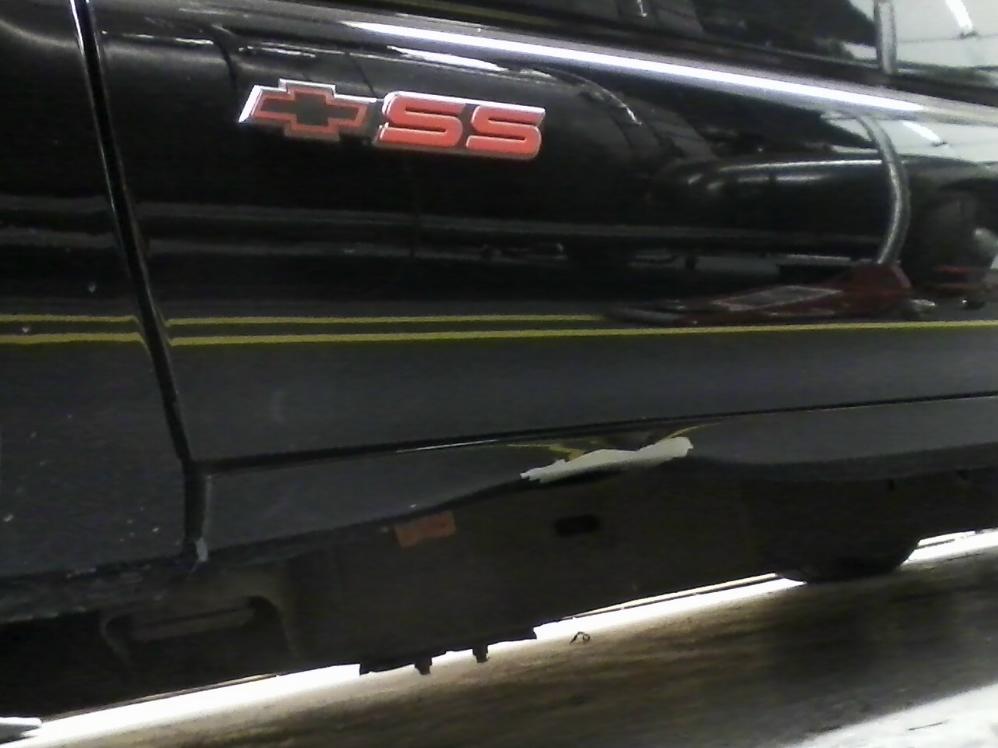

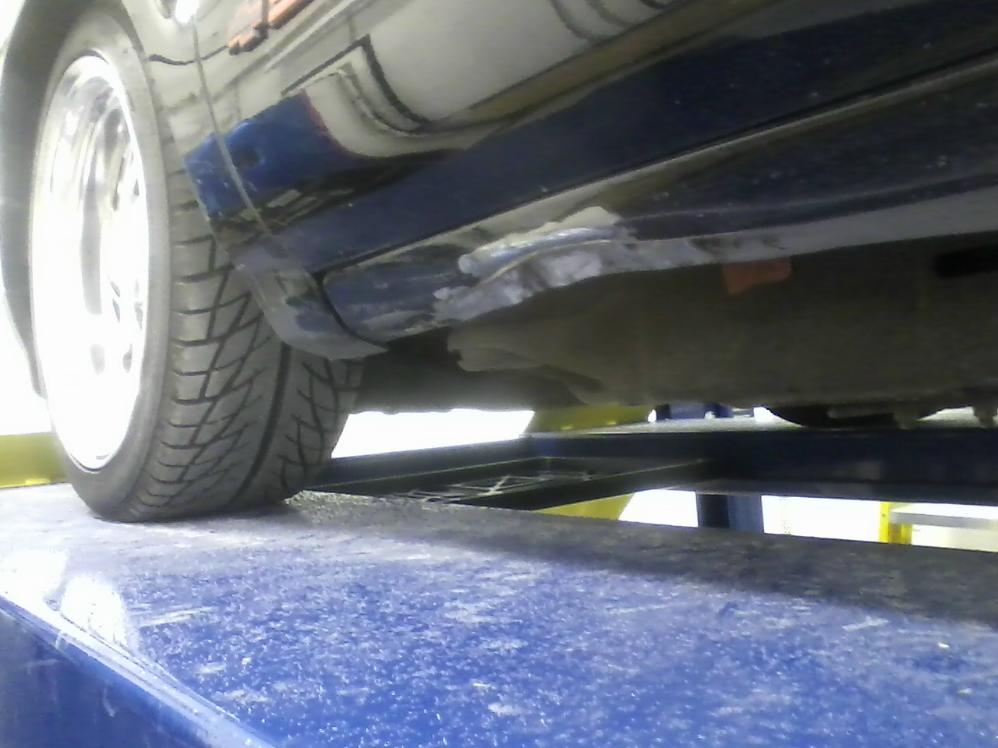

Aftermath, 1 crushed rocker panel, pushed it up into the door
Tried pulling it out with a stud welder, no go! Drilled out spot welds and beingcareful cutting with the cutting wheel
So decided cutting out the outer metal was the only option

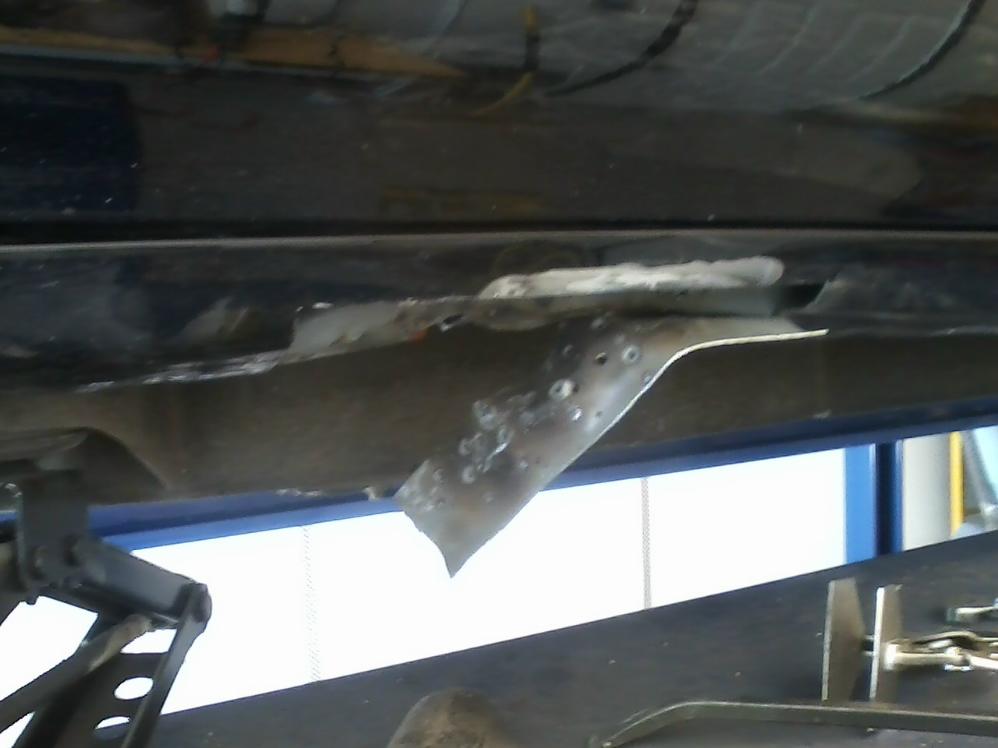

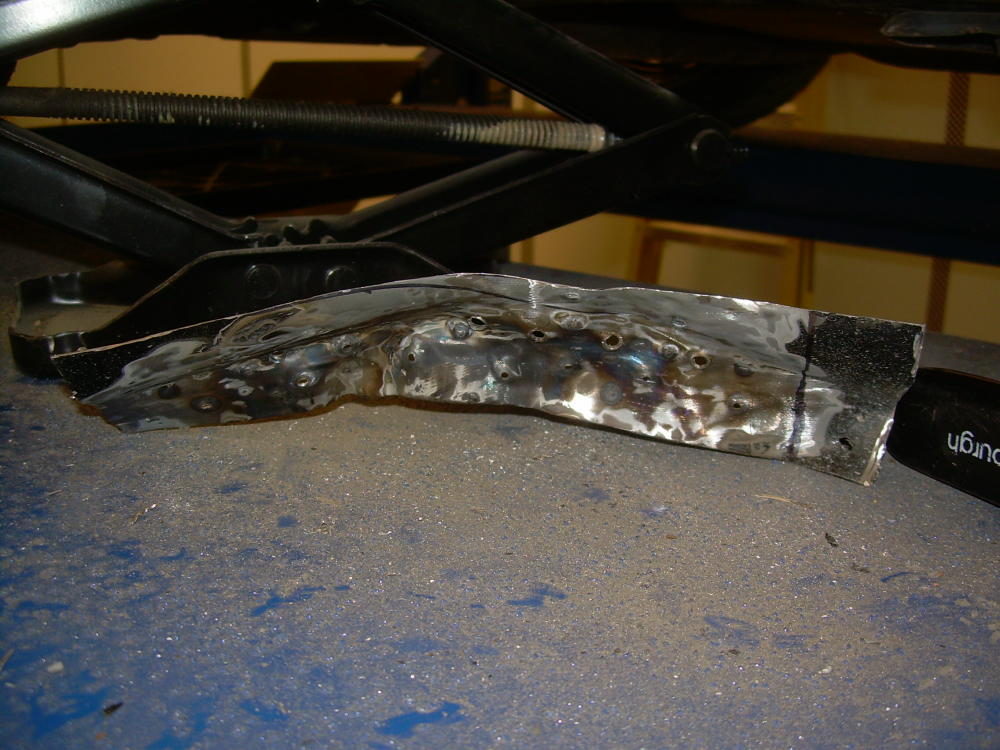

Mangled failure
Outside skin off, dented inner rocker, notice inside is almost touching the outside
Inner panel straightened and reformed

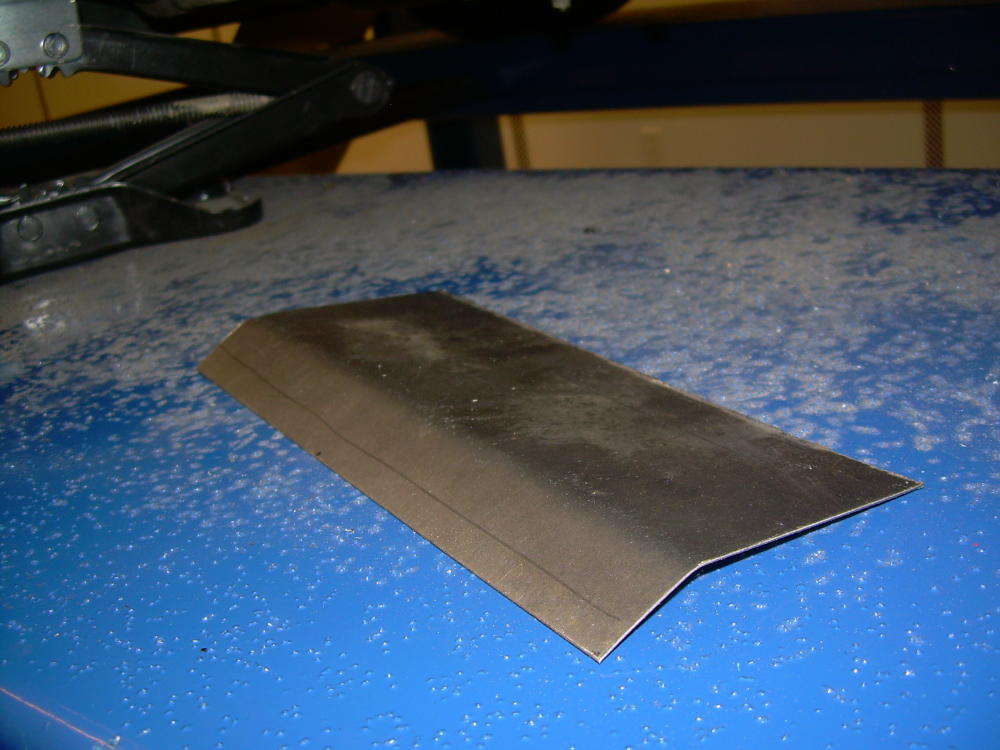

First bend of patch panel, glad I bought a metal brake a month before

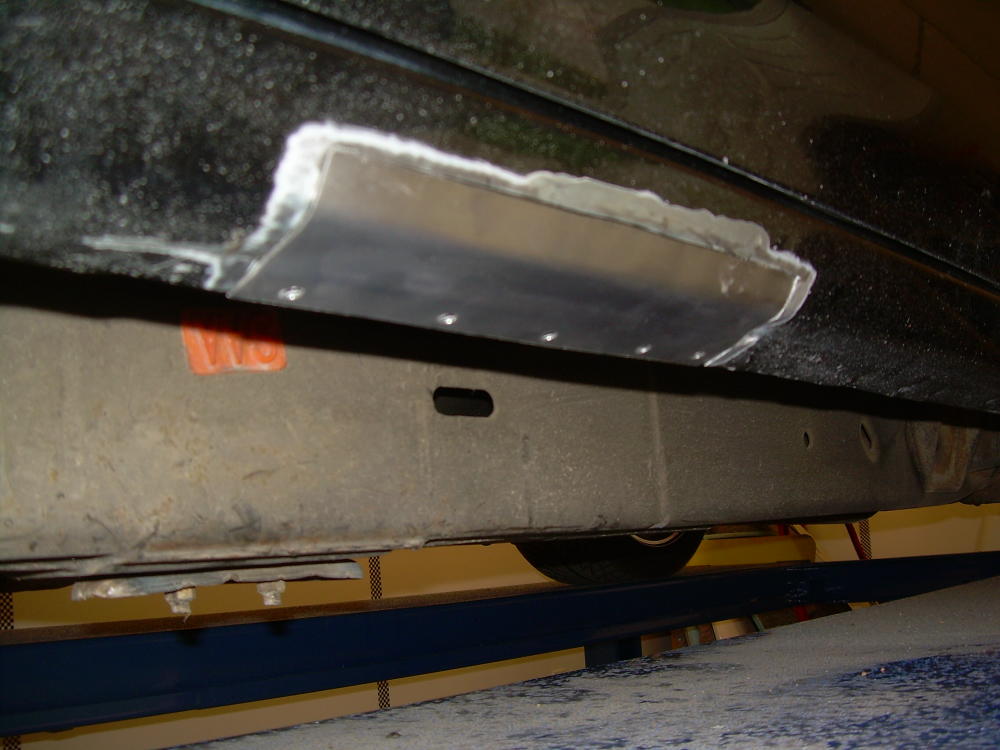

Test fit of patch panel , magnets are great!!!
(many pre-tests to get it right)

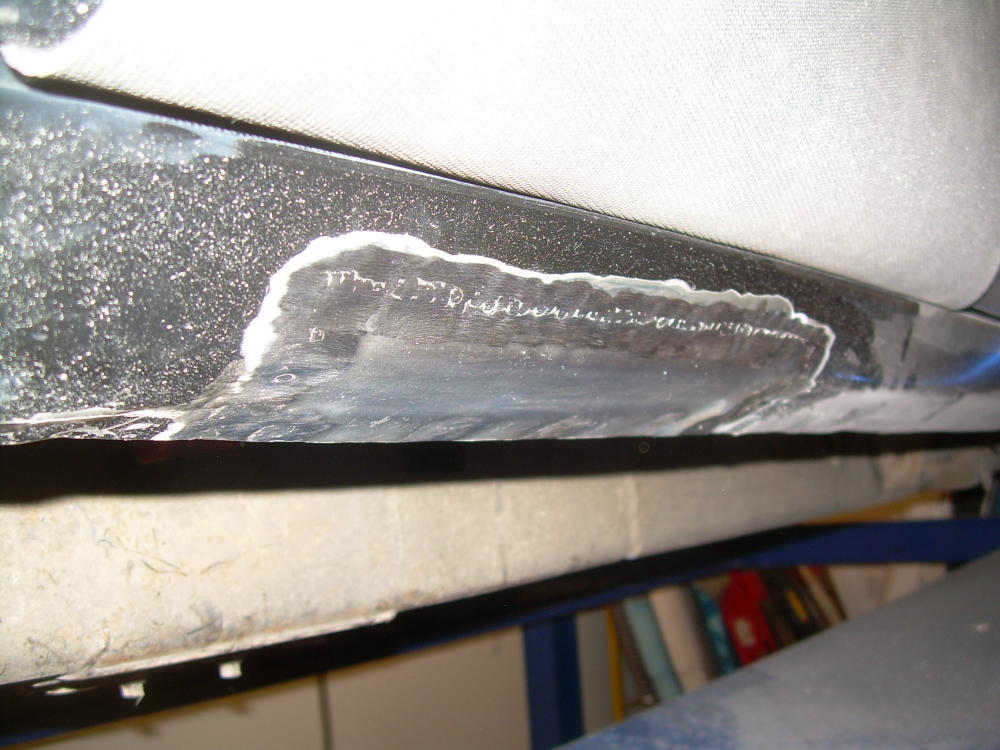

Tacked and ground, got little bit of warpage in a couple of spots.

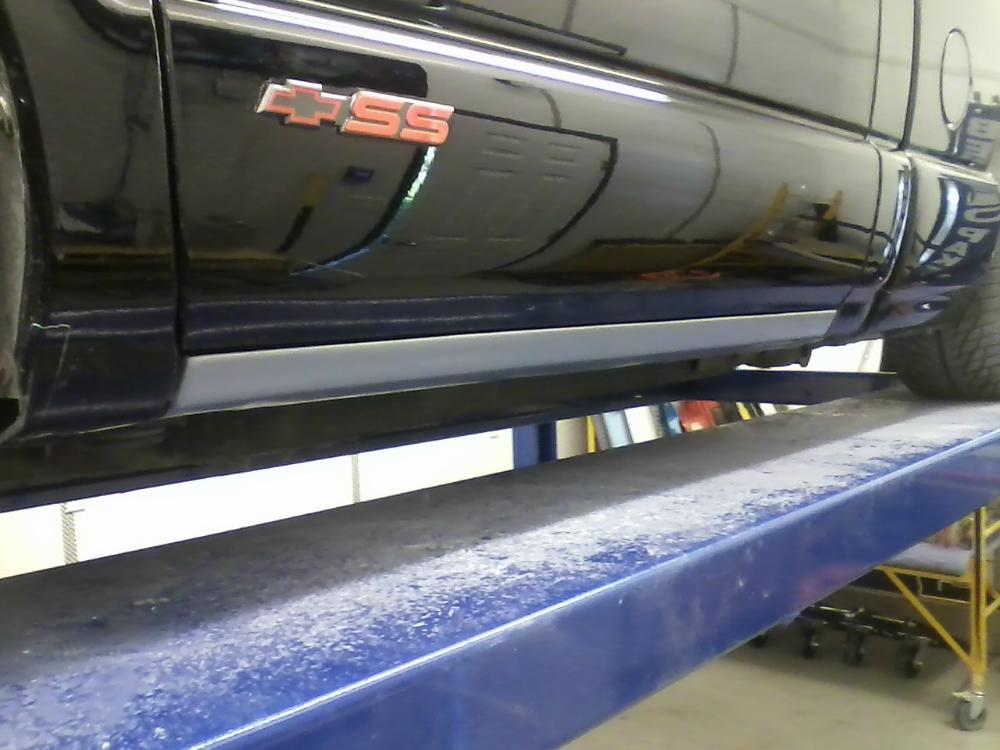

Filled, blocked and primered, glad I had materials left over from my bumper and grille redo

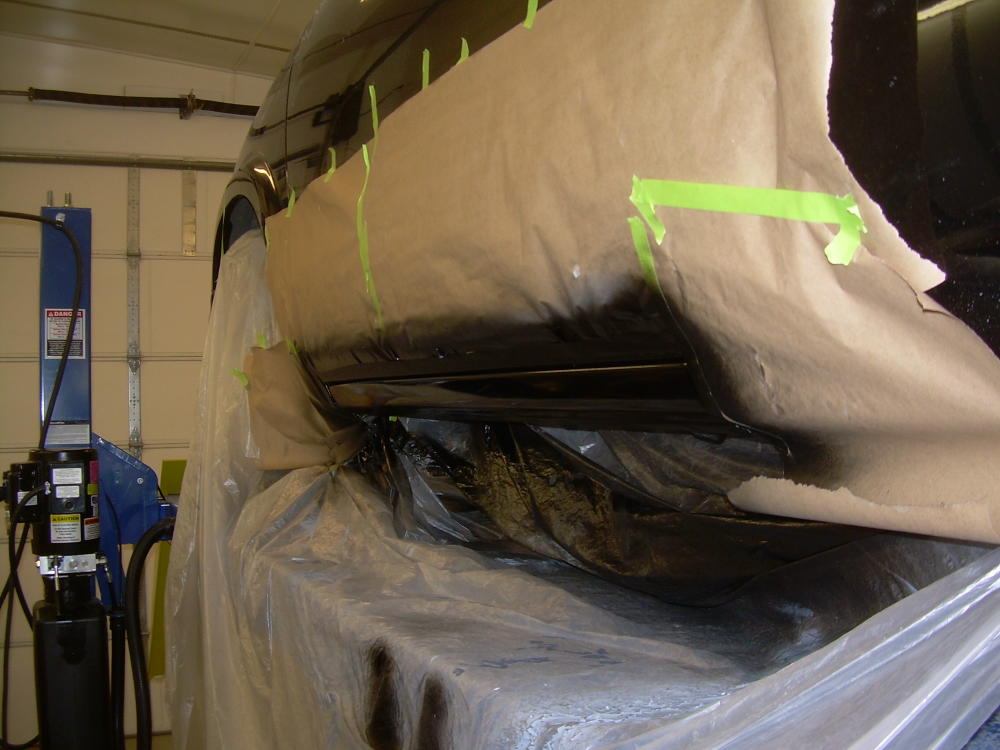

3 coats of paint
3 coats of clear
Good as new, to bad the rest of the paint isn't, didnt really notice till I see it in pictures

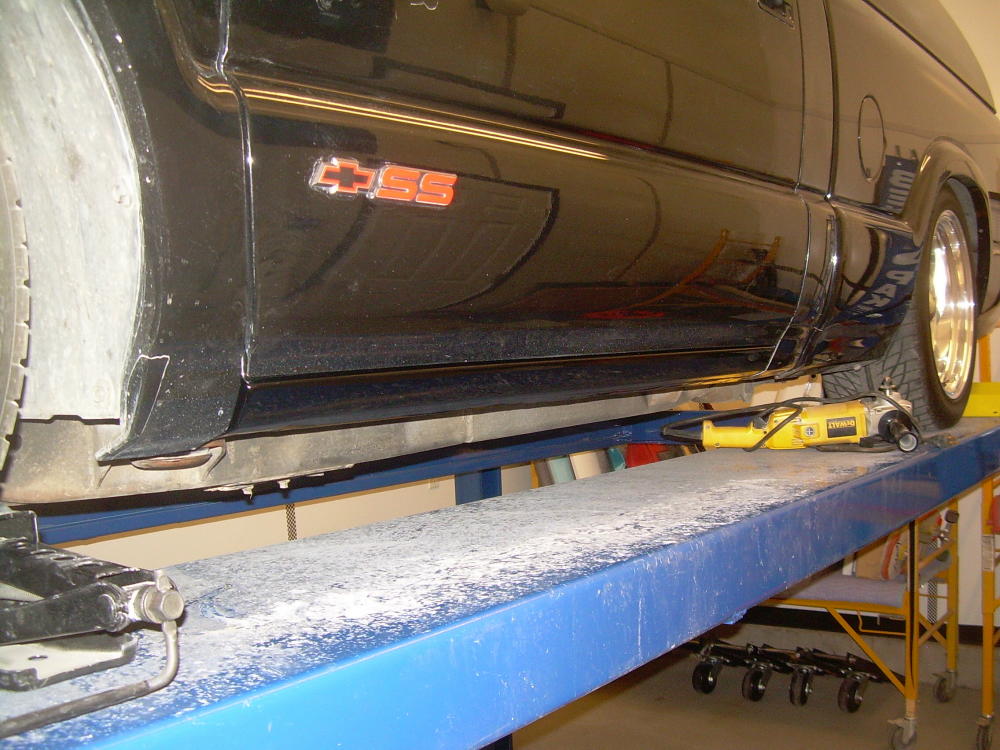

Finished

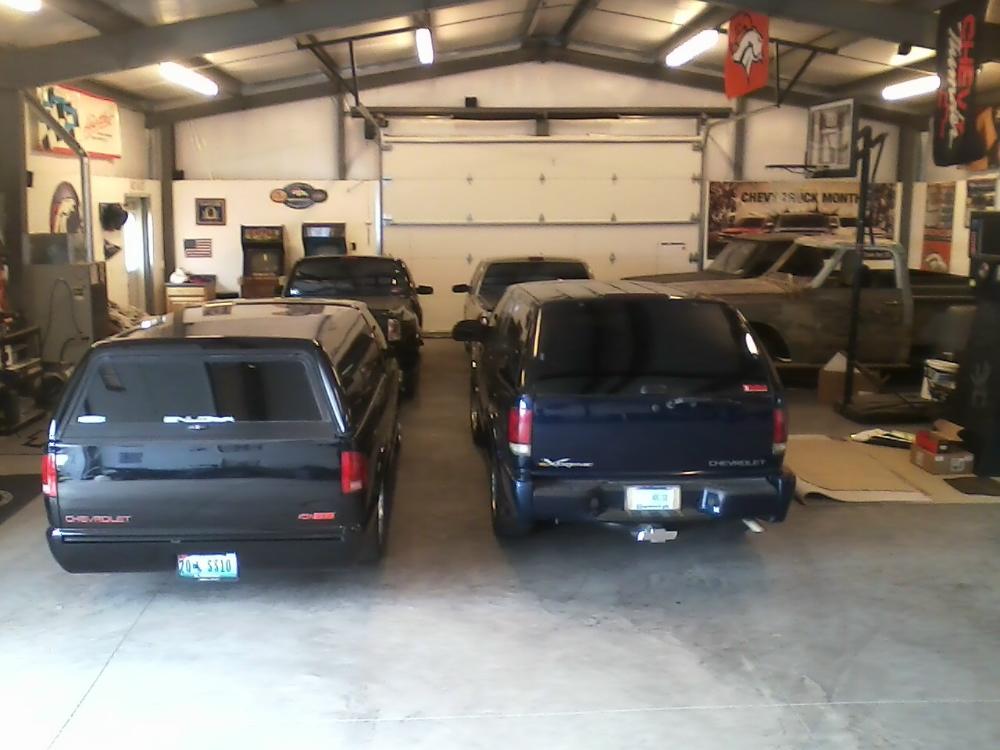

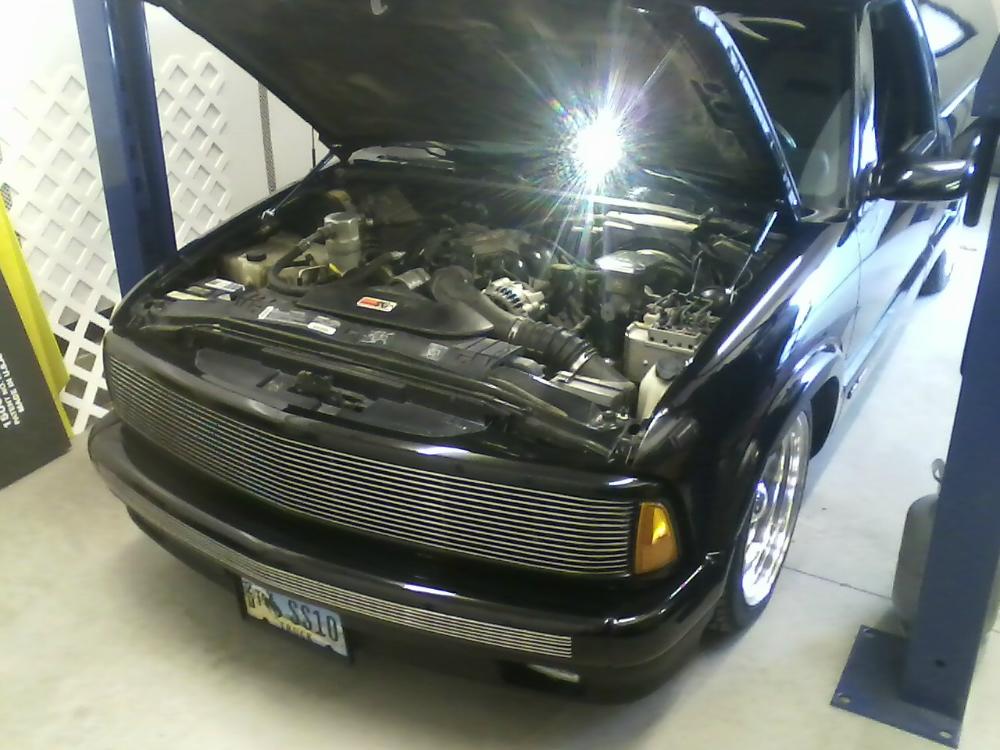

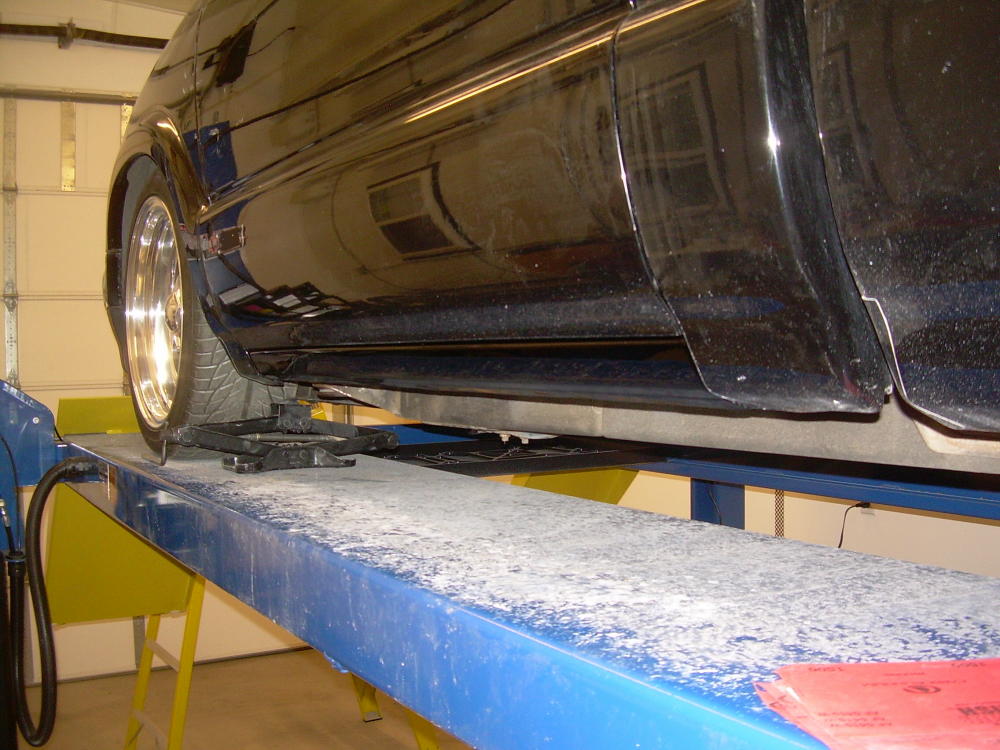

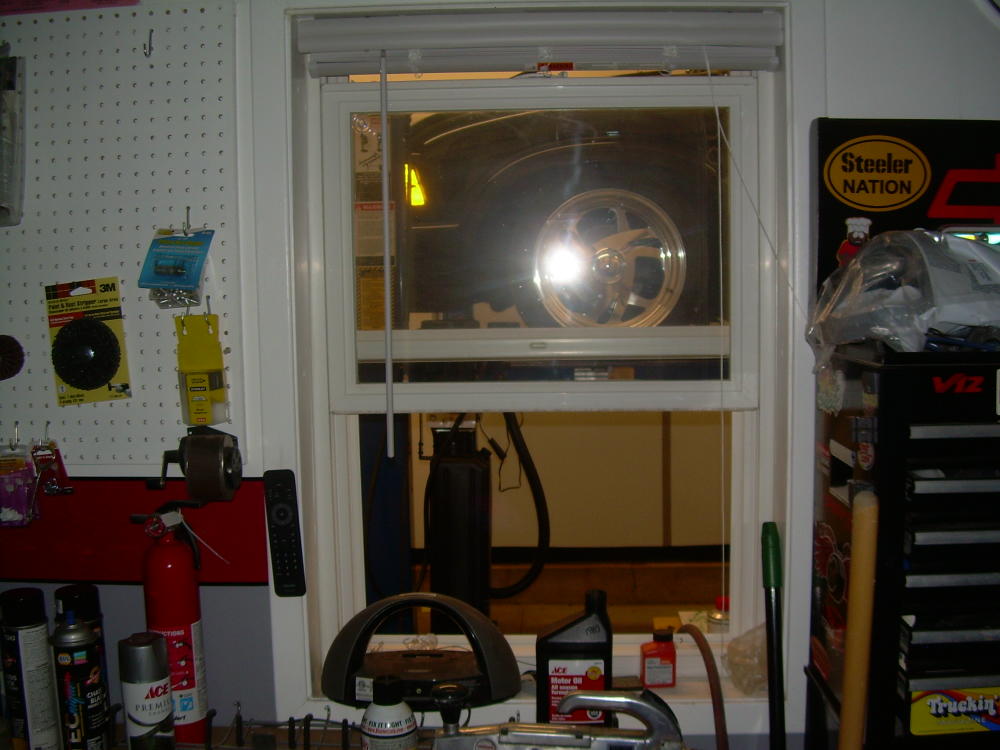

4 post lift sure made this job easier, if I would have used it for the oil change in the first place, I wouldn't of had to of gone through this, or wish would come true and my neighbour would MOVE!
Click here
to go to my
Click here
to go to my
Click here
to go to my
Click here
to go to my
Click here
to go to my
Click here
to go to my

S10 SS Modifications

BODY

SnugTop Windowless Topper
Street Scene electric sport mirrors
Tinted windows
Trenz Billet phantom grille
Smoothed Sir Micheal's roll pan
Goodmark Steel Cowl Induction Hood
Shaved tailgate & Sir Micheal's handle relocater
Trenz Phantom billet bumper
Custom made 35 LED topper 3rd brake light
License Plate Frenched into air dam

SUSPENSION

2" Bell Tech spindles
3" Bell Tech springs
3" Lowered leaf springs w/ 2" angled blocks
Budnik Tusk II wheels
17 x 8 front - 17 x 9.5 back
Falken ZE-502 Tires
215/45/17 front - 255/45/17 back
4.5 front - 5.5 back backspacing
Cross drilled rotors
Removed rear bumpstop brackets
Energy Suspension rear bumpstops
Future Mods
Rear wheels disc brakes (camaro)
with cross drilled rotors

ENGINE

K & N Filter
Billet Specialties billet
master cylinder cover

INTERIOR

Steel Horse bed carpet kit
Alpine CDA-7893 head unit
Alpine 6 Disc DVD changer
Alpine 2 channel 600W amp
2 Alpine Type R Dual Voice Coil Subs
Alpine 6.5's in the doors
Alpine alarm
Budnik Tusk II billet steering wheel
Lloyd custom fit SS floor mats
Custom made subwoofer enclosure
Alpine 6.5 Video Monitor
Playstation 2
Billet Specialties billet shifter arm
Billet Specialties billet brake pedals

ALL WORK DONE BY OWNER
WITH THE HELP OF A FEW FRINDS!
